Echo PB-1000 S/N: 219001 - 242731 Handheld Blower

Model: PB-1000 S/N: 219001 - 242731

Back To Assemblies

Save Part Not Listed?
product name

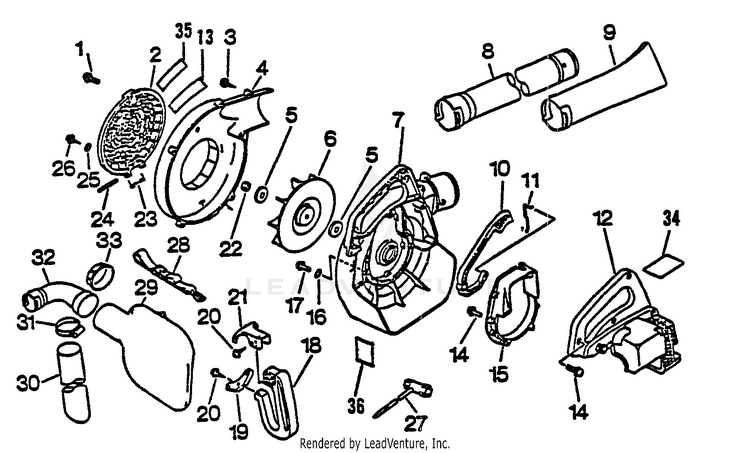

Fan, Housings, Blowing Pipes, Debris Bag, Handles, Cover, Tools

...
...
1
SCREW 5x18 ECH-90023805018
...
2
SHIELD, DEBRIS ECH-20012405061
...
3
SCREW, TAPPING 5x20 ECH-90025305020
...
4
COVER, FAN - LEFT ECH-20011108761
...
5
WASHER ECH-10013205660
...
6
FAN ECH-20001006363
...
7
COVER, FAN - RIGHT ECH-20011006360
...
8
TUBE, BLOWER - STRAIGHT ECH-21001505060
...
9
NOZZLE - FAN HEAD ECH-21003105060
...
10
TRIGGER, THROTTLE ECH-17801006360
...
11
ROD, THROTTLE ECH-17801105060
...
12
COVER, ENGINE ECH-10400806360
...
13
LABEL - MODEL ECH-89011806360
...
14
SCREW 4x18 ECH-90023804018
...
15
BRACKET, ENGINE ECH-10493005061
...
16
WASHER ECH-10403205060
...
17
SCREW 4x22 ECH-90023804022
...
18
HANDLE Not used on this model ECH---
...
19
SUPPORTER, HANDLE Not used on this model ECH---
...
------------------
SCREW - 5×14 Not used on this model ECH---
...
21
SUPPORTER, HANDLE Not used on this model ECH---
...
22
NUT M8 ECH-90050000008
...
23
SPRING, COIL ECH-20015205060
...
24
PIN, INTAKE COVER ECH-20015005060
...
25
WASHER ECH-10403205060
...
26
SCREW 5x14 ECH-90024605014
...
27
T-WRENCH 13x19x180 ECH-89541006961
...
28
HARNESS Not used on this model ECH---
...
------------------
BAG, DEBRIS Not used on this model ECH---
...
------------------
ADAPTER, TUBE Not used on this model ECH---
...
------------------
CLAMP Not used on this model ECH---
...
32
CONNECTOR Not used on this model ECH---
...
33
RING Not used on this model ECH---
...
34
LABEL - CAUTION - HOT ECH-89019406360
...
35
LABEL - NOISE ECH-89017605060
...
36
LABEL - NOISE Not used on this model ECH---
