Echo MS-12 Manual Sprayer

Model: MS-12

Save Part Not Listed?
product name

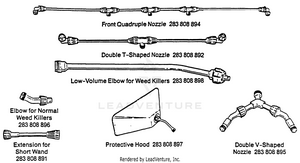

Accessories

...
...
283808894
FRONT QUADRUPLE NOZZLE ECH-283808894
...
283808892
NOZZLE - DUOBLE T ECH-283808892
...
283808898
LOW-VOLUME ELBOW FOR WEED KILLERS ECH-283808898
...
283808896
ELBOW FOR NORMAL WEED KILLERS ECH-283808896
...
283808891
EXTENSION, WAND ECH-283808891
...
283808897
PROTECTIVE HOOD ECH-283808897
...
283808895
NOZZLE - DUOBLE V ECH-283808895

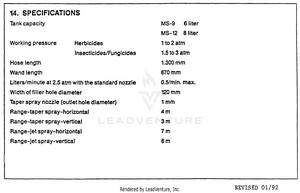

Specifications

...

No Parts Available for this Schematic

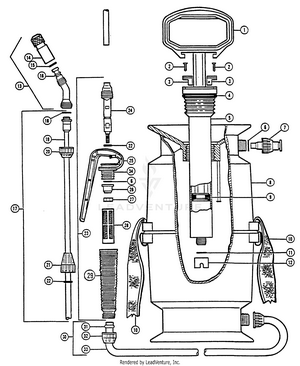

Unit Complete

...
...
1
HANDLE ECH-283812308
...
2
SCREW - 7x7/8 - FLAT HEAD ECH-225127901
...
3
CHAMBER COVER ECH-283805309
...
4
O-RING AN 30 ECH-222315930
...
5
CHAMBER MS-9, 12 ECH-283812801
...
6
O-RING AN 8 ECH-222315908
...
6A
O-RING - 8 ECH-222316908
...
7
PRESSURE RELEASE VALVE ECH-283805806
...
8
TANK - MS-9 ECH-283808301
...
8A
TANK ECH-283812301
...
9
COLLAR SEAL ECH-283902314
...
9A
COLLAR SEAL, VITON ECH-283911314
...
10
STRAP, HARNESS ECH-283812420
...
11
CLOSING VALVE ECH-283808305
...
12
VALVE NUT ECH-283808304
...
12
WAND ASSY ECH-283808804
...
13
NOZZLE ASSY ECH-283808803
...
14
NOZZLE - 1 MM ECH-283902323
...
15
O-RING AN 5 ECH-222315905
...
15A
O-RING - 5 ECH-222316905
...
16
SPRAYER ECH-283901322
...
17
TUBE ASSY ECH-283808828
...
18
WASHER ECH-284202334
...
19
TUBE ASSY ECH-283808828
...
20
NUT ECH-283808312
...
21
WAND NUT ECH-283805304
...
22
O-RING AN-6 ECH-222315906
...
22A
O-RING - 6 ECH-222316906
...
23
HANDLE ASSY ECH-283845801
...
24
WAND SHAFT ECH-283805307
...
25
BODY, HANDLE ECH-283805306
...
26
GUIDE ECH-283906332
...
27
NUT M6 ECH-226200006
...
28
FILTER, WAND ECH-283808327
...
29
GRIP ECH-283805305
...
30
HOSE ASSY ECH-283805805
...
31
HOSE CAP ECH-283808308
...
32
NUT ECH-283812312
...
33
HOSE - 6x1.3M ECH-211009209
...
34
O-RING ECH-222399587

283808896 Weed Killer Elbow

...

No Parts Available for this Schematic
