Echo LM-212PB Lawn Mower

Model: LM-212PB

Save Part Not Listed?
product name

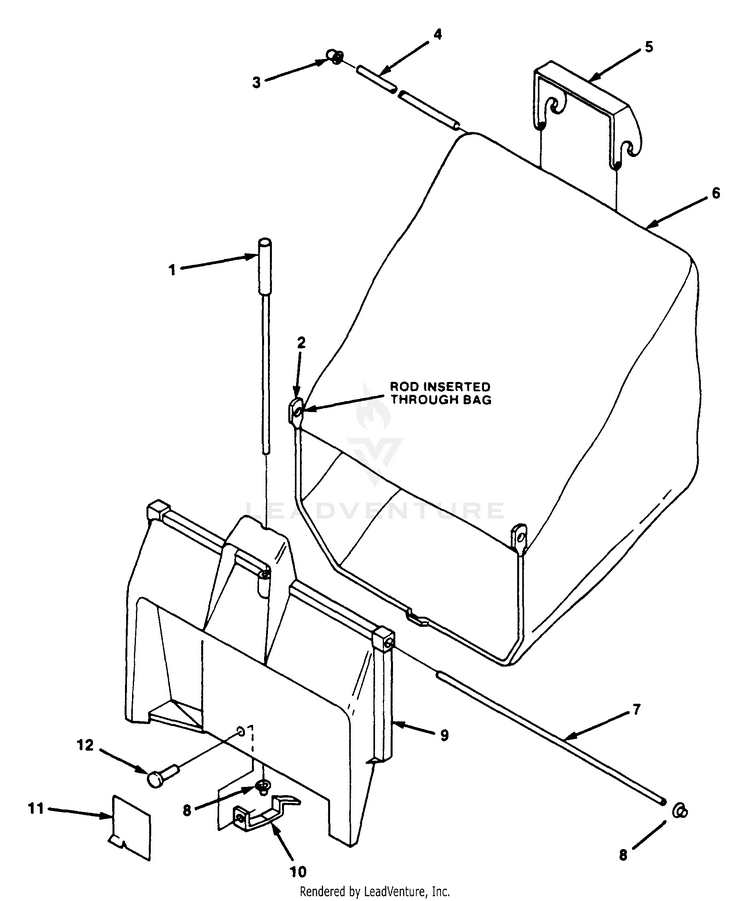

Bagger Asy.

...
...
1
ROD, LATCH RELEASE ECH-700991788
...
2
ROD, BAG SUPPORT ECH-700336651
...
3
END, ROD ECH-700359179
...
4
ROD, UPPER BAG ECH-700359169
...
5
HANDLE ECH-700991786
...
6
BAG, GRASS ECH-700518759
...
7
ROD, BAG HINGE ECH-700359168
...
8
NUT, PAL ECH-700445515
...
9
ADAPTOR, BAG ECH-700991789
...
10
LATCH ECH-700359259
...
11
DEFLECTOR ECH-700375660
...
12
RIVET ECH-700464845

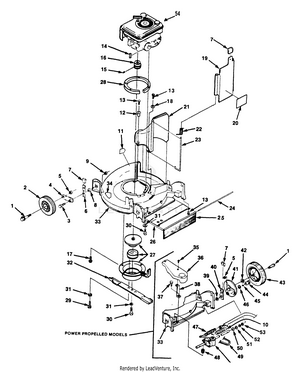

Deck, Wheels, Discharge Chute, Blade, Drive System

...
...
1
AXLE - ASSY Includes ITEM 5 ECH-700992138
...
2
WHEEL ASSY ECH-700993058
...
3
BOLT - 5/16x18 ECH-700359180
...
4
ARM - WHEEL ADJUSTING ECH-700991287
...
5
NUT - 3/8-24 ECH-700444850
...
6
INDEXING SPRING & PIN ASSY ECH-700990087
...
7
KNOB ECH-700336623
...
8
SPACER ECH-700358362
...
9
NUT - 5/16-18 - FLANGE ECH-700445775
...
10
COVER, SPRING ECH-700359270
...
11
LABEL - WARNING ECH-700339460
...
12
EYELET ECH-700473183
...
13
SCREW - 1/4-20x3/4" - HEX CAP ECH-700408878
...
14
KEY ECH-700463029
...
15
SCREW, SET ECH-700422505
...
16
PULLEY - DRIVE ECH-700993007
...
17
SCREW - 5/16-18 ECH-700409912
...
18
WASHER - 1/4" ECH-700453023
...
19
DOOR, CHUTE Includes ITEMS 20 & 7 ECH-700984092
...
20
LABEL - DOOR ECH-700991217
...
21
CHUTE, DISCHARGE ECH-700994064
...
22
SPRING ECH-700992947
...
23
PIN, HINGE ECH-700359167
...
24
ROD, DRAG FLAP ECH-700359170
...
25
FLAP, DRAG ECH-700359257
...
26
COVER, REAR ECH-700991285
...
27
BLADE/BRAKE/CLUTCH ECH-700994213
...
28
RING, ENGINE ECH-700994016
...
29
SCREW - 3/8-16x1" ECH-700401208
...
30
SCREW - 3/8-24x2" ECH-700401209
...
31
WASHER, LOCK 3/8 ECH-700446142
...
32
BLADE - 21" ECH-700991189
...
33
DECK ASSEMBLY Incl. Decals ECH-700994222
...
34
LABEL - FOOT PAD ECH-700992393
...
35
SCREW - 1/4-20x3/4" - HEX HEAD ECH-700408879
...
36
COVER, DRIVE ECH-700994218
...
37
SCREW - 10-16x1/2" - HEX CAP ECH-700409704
...
38
SUPPORT-BELT COVER ECH-700994243
...
39
SPACER ECH-700350141
...
40
INDEXING SPRING & PIN ASSY ECH-700991288
...
41
DRIVE WHEEL SUPPORT ASSY ECH-700990074
...
42
WASHER, FLAT ECH-700359500
...
43
WHEEL ASSY ECH-700993975
...
44
PINION - R.H. ECH-700204244
...
44
PINION, L.H. ECH-700204245
...
45
PAWL ECH-700313659
...
46
WASHER, FLAT ECH-700351077
...
47
SPRING ECH-700375748
...
48
SPRING ECH-700350266
...
49
BELT, DRIVE ECH-700991218
...
50
RING - EATON ECH-700458451
...
51
WASHER ECH-700358406
...
52
WASHER As Required ECH-700328147
...
53
WASHER ECH-700454037
...
54
ENGINE - M14V-B1ZO ECH-1162
...
------------------
GEAR ASSY ORDER COMPONENTS ECH---

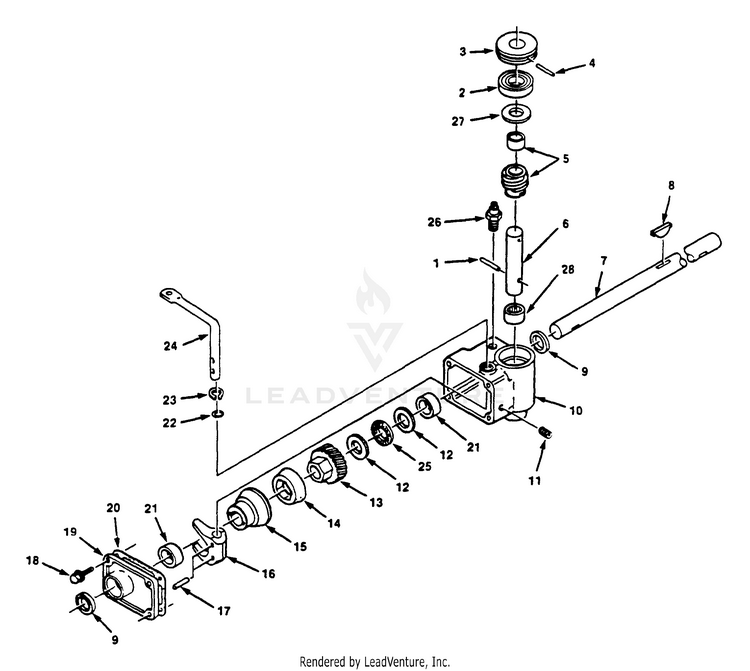

Drive System - Exploded View

...
...
1
PIN ECH-700461415
...
2
BEARING, BALL ECH-700990499
...
3
PULLEY ECH-700359085
...
4
PIN 3/32x3/4 ECH-700461414
...
5
WORM 4 SPACER ECH-700090642
...
6
SHAFT, WORM ECH-700990525
...
7
DRIVESHAFT ECH-700992980
...
8
KEY - 1/8x1/2" ECH-705463101
...
9
SEAL ECH-700376110
...
10
GEAR REDUCER HOUSING ASSY Includes ITEMS 9 & 21 ECH-700990529
...
11
PLUG - PIPE ECH-700472007
...
12
RACE - BEARING ECH-700990446
...
13
GEAR, WORM ECH-700992770
...
14
CONE - FRICTION ECH-700992780
...
15
DRUM, CLUTCH ECH-700992800
...
16
FORK-SHIFT ECH-700900153
...
17
PIN 5/32x3/4 ECH-700461330
...
18
SCREW - 1/4-20x7/8" ECH-700408862
...
19
COVER-GEARBOX Includes ITEMS 9 & 21 ECH-700090168
...
20
GASKET ECH-700375948
...
21
BUSHING - SLEEVE ECH-700992820
...
22
O-RING ECH-700459037
...
23
RING ECH-700458094
...
24
LEVER, SHIFT ECH-700994110
...
25
BEARING - THRUST ECH-700990447
...
26
VENT ECH-700990415
...
27
WASHER ECH-700990463
...
28
BEARING, NEEDLE ECH-700990527
...
------------------
GEAR ASSY ORDER COMPONENTS ECH---

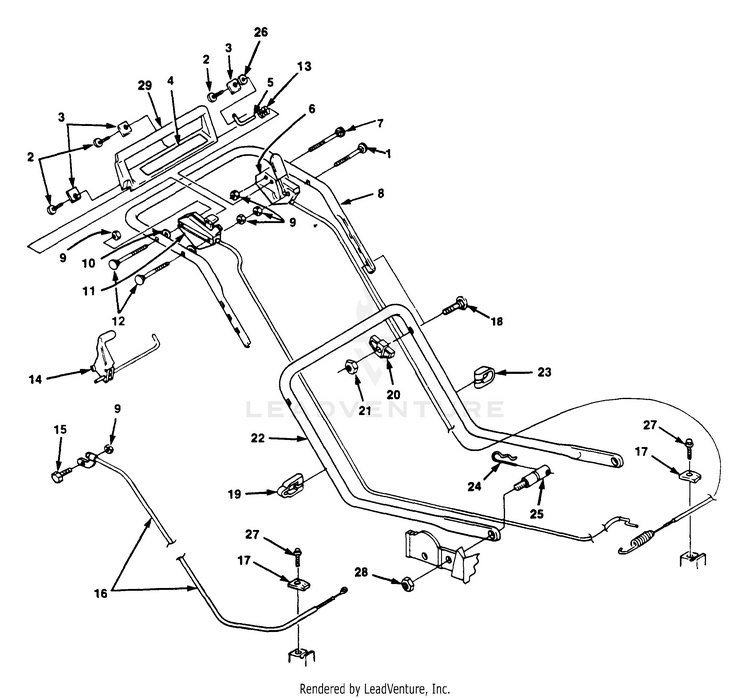

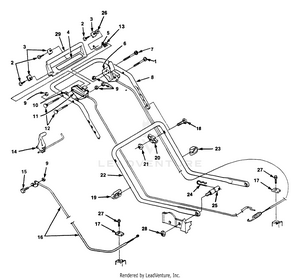

Handles, Throttle, Drive Lever, Engine Brake Lever, Cables

...
...
1
BOLT-SQUARE NECK 2.12 ECH-700991611
...
2
SCREW - 1/4-10x5/8" - ROUND HEAD ECH-700408881
...
3
CLAMP, PIVOT SHAFT ECH-700992570
...
4
LABEL - BRAKE BAIL ECH-700993974
...
5
SHAFT, PIVOT (SHORT) ECH-700992560
...
6
CONTROL-BLADE/BRAKE/CLUTCH ECH-700991353
...
7
BOLT, SQ. NECK 1/4-20x2 1/4 ECH-700992930
...
8
HANDLE - UPPER ECH-700992350
...
9
LOCKNUT - 1/4-20 ECH-700444708
...
10
SPACER ECH-700991469
...
11
CONTROL, THROTTLE ECH-700994276
...
12
BOLT, SQ. NECK 1/4-20x2 ECH-700992920
...
13
SPRING, COMPRESSION ECH-700990141
...
14
TRACTION LEVER ECH-700993976
...
15
SCREW - 1/4-20x1-1/2" - HEX CAP ECH-700400116
...
16
CABLE, TRACTION ECH-700991075
...
17
CLAMP ECH-700991065
...
18
BOLT ECH-700359102
...
19
CLAMP - DOUBLE ECH-700995410
...
20
KNOB - HANDLE ECH-700339550
...
21
NUT - 5/16-18 ECH-700443106
...
22
HANDLE, LOWER ECH-700992360
...
23
CLAMP - CABLE SINGLE ECH-700995420
...
24
PIN, COTTER ECH-700460306
...
25
STUD ECH-700359178
...
26
WASHER - 1/4" ECH-700453023
...
27
SCREW 1/4"x5/8 ECH-700409908
...
28
NUT - 5/16-18 - FLANGE ECH-700445775
...
29
BAIL - BRAKE CONTROL ECH-700991448
