Echo HT254 S/N: T11211001001 - T11211999999 Hedge Trimmer

Model: HT254 S/N: T11211001001 - T11211999999

Back To Assemblies

Save Part Not Listed?

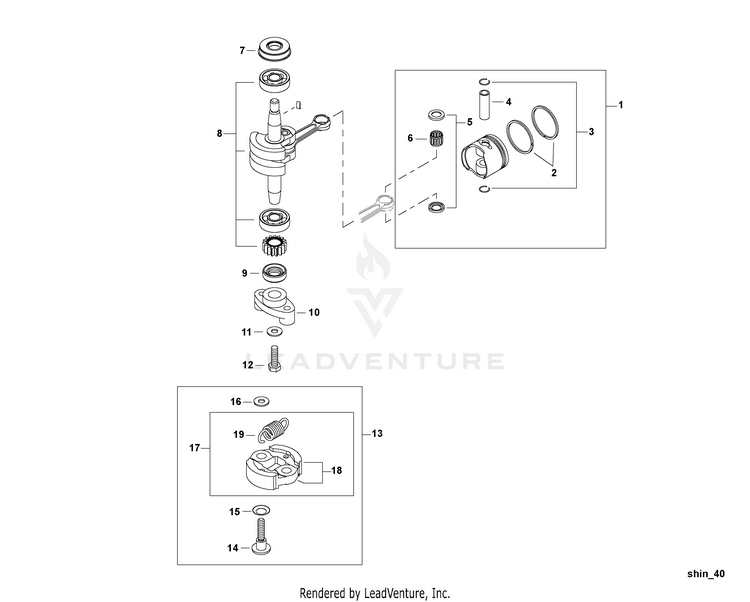

product name

Piston, Clutch

...
...
1
PISTON KIT INCLUDES ITEMS 2-6 ECH-P021033930
...
2
RING, PISTON ECH-A101000390
...
3
RING, SNAP ECH-V580000090
...
4
PIN, PISTON ECH-V607000040
...
5
WASHER, THRUST 9 ECH-V392000020
...
6
BEARING, NEEDLE 9 ECH-V554000010
...
7
SEAL, OIL 12 ECH-V505000120
...
8
CRANKSHAFT ASSY ECH-A011000900
...
9
SEAL, OIL 12 ECH-V505000020
...
10
BOSS, CLUTCH ECH-A552000130
...
11
WASHER 6 MM ECH-V304000150
...
12
BOLT M6x18 ECH-V204000480
...
13
CLUTCH KIT ECH-A056000470
...
14
BOLT, CLUTCH Includes ITEMS 14-19 ECH-A557000040
...
15
WASHER, SPRING ECH-V346000040
...
16
WASHER 6 MM ECH-V304000150
...
17
SHOE ASSY, CLUTCH INCLUDES ITEMS 18-19 ECH-A056000480
...
18
SHOE, CLUTCH ECH-A553000100
...
19
SPRING, CLUTCH ECH-A566000170
