Echo HC-1600 Type 1E Hedge Trimmer (HC/HCS)

Model: HC-1600 Type 1E

Save Part Not Listed?
product name

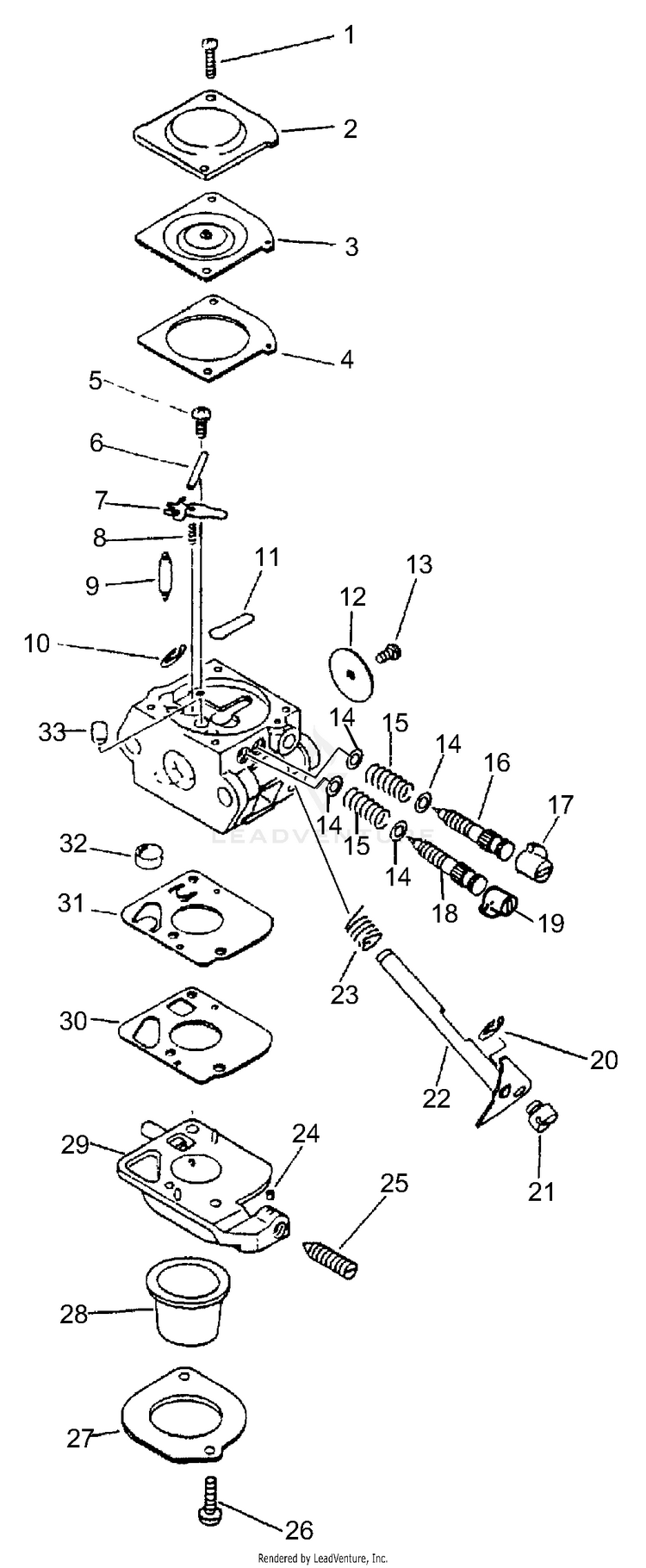

Carburetor

...
...
xx
CARBURETOR C1U-K51 HC-2410 INCLUDES THE FOLLOWING ITEMS ECH-12520005967
...
1
SCREW ECH-12534452130
...
2
COVER, METERING DIAPHRAGM ECH-12534252130
...
3
DIAPHRAGM, METERING USE REPAIR KIT - P/N 12530013310; USE GASKET/DIAPHRAGM KIT - P/N 12530313310 ECH---
...
4
GASKET, METERING USE REPAIR KIT - P/N 12530013310; USE GASKET/DIAPHRAGM KIT - P/N 12530313310 ECH---
...
5
SCREW ECH-12533942030
...
6
PIN, METERING LEVER USE REPAIR KIT - P/N 12530013310 ECH---
...
7
LEVER, METERING USE REPAIR KIT - P/N 12530013310 ECH---
...
8
SPRING, METERING LEVER USE REPAIR KIT - P/N 12530013310 ECH---
...
9
VALVE, NEEDLE USE REPAIR KIT - P/N 12530013310 ECH---
...
10
E-RING ECH-12532715130
...
11
PLUG, WELCH USE REPAIR KIT - P/N 12530013310 ECH---
...
12
VALVE, THROTTLE ECH-12531649030
...
13
SCREW ECH-12531413930
...
14
WASHER ECH-12535307760
...
15
SPRING, COIL ECH-125319-42030
...
16
NEEDLE, MIXTURE ECH-12531813120
...
17
CAP, LIMITER - WHITE ECH-12532909860
...
18
NEEDLE, HIGH SPEED ECH-12532013310
...
19
CAP, LIMITER - RED ECH-12532939030
...
20
CLIP ECH-125327-13930
...
21
SWIVEL ECH-12537242030
...
22
SHAFT, THROTTLE ECH-12531713310
...
23
SPRING, THROTTLE RETURN ECH-12531342030
...
24
PIECE, FRICTION ECH-12537813930
...
25
SCREW, IDLE ADJUST ECH-12533413930
...
26
SCREW ECH-12531011610
...
27
RETAINER ECH-12536311610
...
28
BULB, PURGE ECH-P005003120
...
29
BODY ASSY, PURGE ECH-P005000990
...
30
GASKET, PUMP USE REPAIR KIT - P/N 12530013310; USE GASKET/DIAPHRAGM KIT - P/N 12530313310 ECH---
...
31
DIAPHRAGM, PUMP USE REPAIR KIT - P/N 12530013310; USE GASKET/DIAPHRAGM KIT - P/N 12530313310 ECH---
...
32
STRAINER USE REPAIR KIT - P/N 12530013310 ECH---
...
33
NOZZLE, CHECK VALVE ECH-12537649030
...
33
REPAIR KIT, CARBURETOR ECH-P005002840
...
33
GASKET / DIAPHRAGM KIT ECH-12530313310

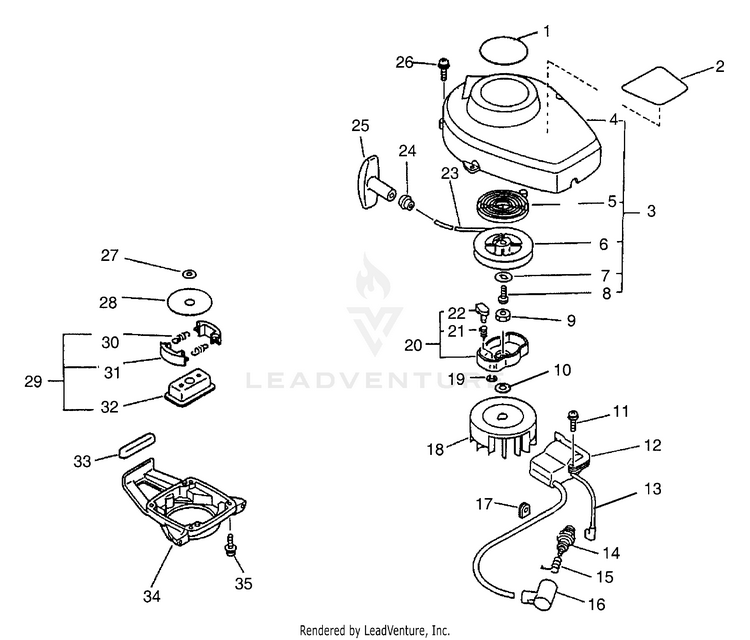

Clutch, Ignition, Starter

...
...
1
LABEL - HC-1600 ECH-89011506961
...
2
LABEL - CAUTION ECH-89016007761
...
3
STARTER ASSY INCLUDES ITEMS 4 - 8, 23 - 25 ECH-17720005962
...
4
CASE, STARTER ECH-17723205961
...
5
SPRING, RECOIL ECH-P022019680
...
6
REEL, ROPE ECH-17721505960
...
7
WASHER 5 ECH-V303000230
...
8
SCREW ECH-17723644330
...
9
NUT 8 ECH-90051200008
...
10
WASHER, SPRING 8 ECH-90060500008
...
11
SCREW 4x22 ECH-90016204022
...
12
COIL, IGNITION ECH-15660152131
...
13
LEAD - IGNITION ECH-V485001080
...
14
SPARK PLUG - BPM7Y ECH-99944500071R
...
14
SPARK PLUG - BPMR7A CANADA MODELS ECH-15901010230
...
15
TERMINAL, SPARK PLUG ECH-15901103432
...
16
CAP, SPARK PLUG ECH-15901201620
...
17
GROMMET ECH-15611004920
...
18
FLYWHEEL (S/N 001001 - 503650) ECH-15680144731
...
18
FLYWHEEL (S/N 503651 & UP) ECH-A409000100
...
19
E-RING 4 ECH-90070000004
...
20
PAWL ASSY, STARTER INCLUDES ITEMS 21 & 22 ECH-17720207361
...
21
SPRING, RETURN ECH-P022007980
...
22
PAWL, STARTER ECH-17721842030
...
23
ROPE, STARTER RePower BULK OPTION: 99944445000 ECH-17722605960
...
24
GUIDE, ROPE ECH-17722742030
...
25
GRIP, STARTER ECH-17722806530
...
26
BOLT 4x16 ECH-V202000830
...
27
WASHER, CLUTCH ECH-17501405360
...
28
PLATE, CLUTCH ECH-17501904920
...
29
CLUTCH ASSY INCLUDES ITEMS 30-32 ECH-17500002962
...
30
SPRING, CLUTCH ECH-17501805960
...
31
SHOE, CLUTCH ECH-17500905131
...
32
HUB, CLUTCH ECH-17501607330
...
33
CUSHION, FUEL TANK ECH-13192028230
...
34
HOUSING, CLUTCH ECH-17505506960
...
35
BOLT 4x16 ECH-V202000830
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000

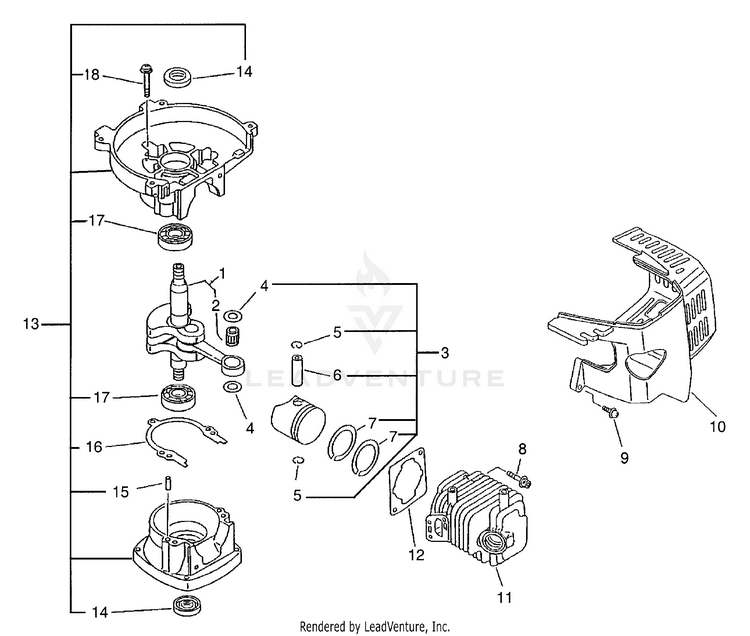

Engine, Crank Case, Cylinder Cover

...
...
1
CRANKSHAFT ASSY INCLUDES ITEM 2; (USE SB BELOW) ECH---
...
2
BEARING, NEEDLE ECH-10011305930
...
3
PISTON KIT S/N 001001 - 516430. INCLUDES ITEMS 4 - 7 ECH-10000006962
...
3
PISTON KIT S/N 516431 & UP. INCLUDES ITEMS 4 - 7 ECH-P021001113
...
4
WASHER, THRUST ECH-10001408960
...
5
RING, SNAP ECH-10001504630
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, PISTON S/N 001001 - 516430 ECH-10001105330
...
7
RING, PISTON S/N 516431 & UP ECH-A101000000
...
8
BOLT 5x22 ECH-90016205022
...
9
SCREW 4x22 ECH-90016204022
...
10
COVER, CYLINDER ECH-10151408960
...
11
CYLINDER S/N 001001 - 516430 ECH-10101106562
...
11
CYLINDER (SRM-22GES) S/N 516431 & UP ECH-A130002300
...
12
GASKET, CYLINDER INCLUDED IN GASKET KIT - P/N 88900006560 ECH-10101044332
...
13
CRANKCASE SET INCLUDES ITEMS 14-18; (USE SB BELOW) ECH---
...
14
SEAL, OIL 12 ECH-10021242031
...
15
PIN, LOCATING 4 ECH-V622000020
...
16
GASKET, CRANKCASE INCLUDED IN GASKET KIT - P/N 88900006560 ECH---
...
17
BEARING, BALL 6201 ECH-9403536201
...
18
BOLT 5x28 ECH-90016205028
...
xx
SHORT BLOCK HC-1600/2000 1E S/N: 001001-516430 ECH-SB1032
...
xx
GASKET KIT S/N 001001 - 511338. INCLUDES THE FOLLOWING ECH-P021000352
...
xx
GASKET, CYLINDER ECH-10101044332
...
xx
GASKET, CRANKCASE ECH---
...
xx
HEAT SHIELD, INTAKE ECH-V103001360
...
xx
GASKET, INTAKE ECH-13001642031
...
xx
GASKET, EXHAUST ECH-V104000160
...
xx
GASKET, EXHAUST ECH-14586642031
...
xx
GASKET, GEAR CASE ECH-61041405360
...
xx
GASKET KIT S/N 511339 & UP. INCLUDES THE FOLLOWING ECH-P021000352
...
xx
GASKET, CYLINDER ECH-10101044332
...
xx
GASKET, CRANKCASE ECH---
...
xx
HEAT SHIELD, INTAKE ECH-V103001360
...
xx
GASKET, INTAKE ECH-13001642031
...
xx
GASKET, EXHAUST ECH-V104000160
...
xx
GASKET, EXHAUST ECH-V104000003
...
xx
GASKET, GEAR CASE ECH-61041405360

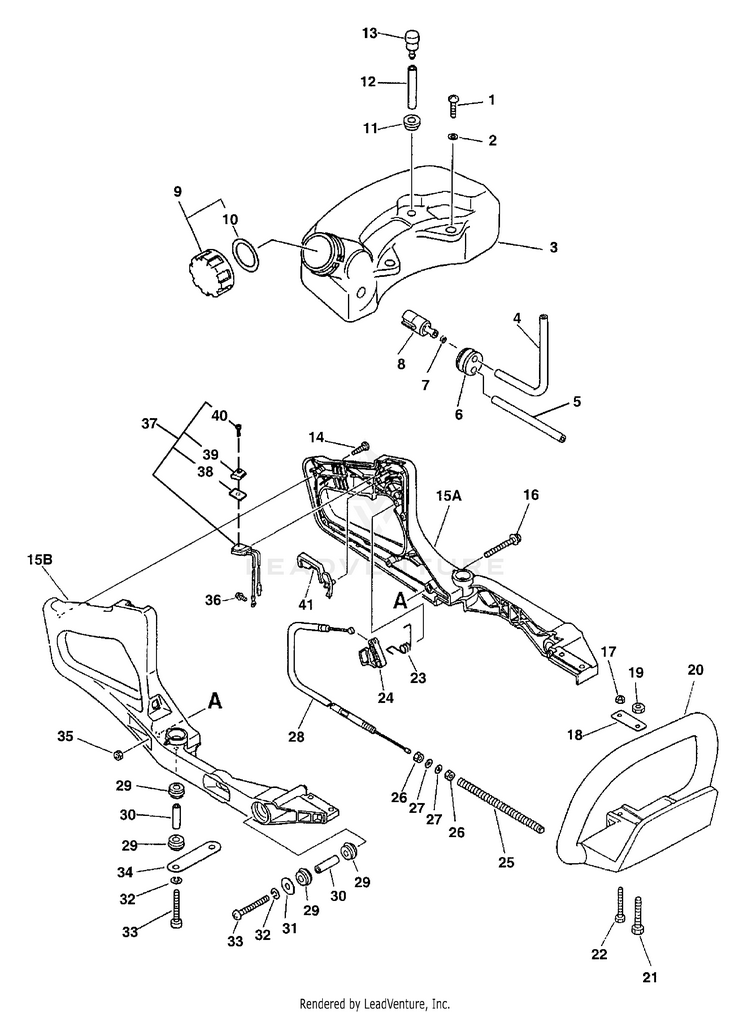

Fuel System, Handles, Throttle

...
...
1
SCREW 5x16 ECH-90023805016
...
2
WASHER 5.5x12x0.8 ECH-90060300005
...
3
TANK, FUEL ECH-13100208961
...
4
PIPE, FUEL ECH-13201002160
...
5
PIPE, RETURN, FUEL, 3X6X110 RePower BULK OPTION: 90017 ECH-V471006140
...
6
GROMMET, FUEL ECH-13211544331
...
7
CLIP 6 MM ECH-13201309820
...
8
FILTER, FUEL USE REPOWER FILTRATION KIT - P/N 90008 ECH-A369000480
...
9
FUEL CAP ASSY INCLUDES ITEM 10. USE REPOWER VENT/CAP KIT - P/N 90010 ECH-P200000830
...
10
GASKET, FUEL CAP ECH-V107000230
...
11
GROMMET ECH-13211501462
...
12
PIPE, FUEL 3x6x35 BLACK RePower BULK OPTION: 90015 ECH-V471001181
...
13
VENT ASSY USE REPOWER VENT/CAP KIT - P/N 90010 ECH-A356000031
...
14
SCREW 4x25 ECH-90025304025
...
15A
HANDLE, REAR ECH-35112906961
...
15B
HANDLE, REAR ECH-35111006961
...
16
SCREW 5x64 ECH-90024205064
...
17
NUT M5 ECH-90050000005
...
18
PLATE, EYE ECH-35161105360
...
19
NUT, HEX M6 ECH-90050000006
...
20
HANDLE, SUPPORT ECH-35161005360
...
21
BOLT - 6x32 ECH-90010006035
...
22
BOLT 5x35 SP ECH-90010005035
...
23
SPRING, TORSION ECH-17801335631
...
24
TRIGGER, THROTTLE ECH-17801005960
...
25
PIPE ECH-17812706960
...
26
NUT M6 ECH-90050200006
...
27
WASHER 6.5x11.5x0.8 ECH-90060000006
...
28
CABLE, THROTTLE ECH-17800106960
...
29
CUSHION ECH-35122806960
...
30
SPACER ECH-35124101261
...
31
WASHER ECH-35124906960
...
32
WASHER, SPRING 5 ECH-90060500005
...
33
SCREW 5x40 ECH-90022005040
...
34
PLATE, EYE ECH-35124206961
...
35
NUT M5 ECH-90050000005
...
36
SCREW 5x10 ECH-90023805010
...
37
IGNITION SWITCH ASSY INCLUDES ITEMS 38 - 40 ECH-A440000330
...
38
LABEL - STOP ECH-89015712330
...
39
SWITCH, ON-OFF ECH-A440000382
...
40
SCREW 3x10 ECH-90022003010
...
41
LOCKOUT, THROTTLE ECH-17801205960
...
xx
TUNE-UP KIT - YOUCAN™ ECH-90152Y
...
xx
CAP/VENT KIT - REPOWER ECH-90248

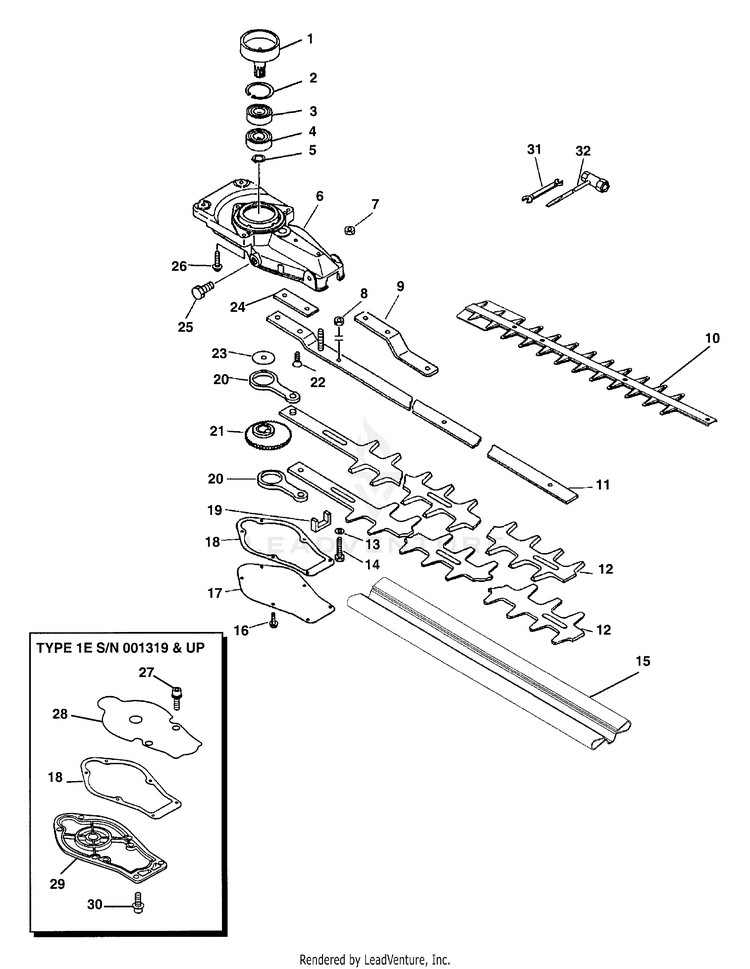

Gearcase, Blades, Clutch Drum

...
...
1
DRUM, CLUTCH ECH-17500504560
...
2
RING, SNAP 35 ECH-90070200035
...
3
BEARING, BALL 6202 ECH-90081336202
...
4
BEARING, BALL 6202 ECH-90081036202
...
5
RING, SNAP 14 ECH-90070100014
...
6
HOUSING, GEAR CASE S/N 001001 - 001318 ECH-61041007760
...
6
CASE, GEAR S/N 001319 & UP ECH-61040707760
...
7
NUT, HEX M6 ECH-90050000006
...
8
NUT M6 ECH-43302206460
...
9
PLATE, ANGLE ECH-69912006560
...
10
GUARD, CUTTER BLADE S/N 509359 & UP ECH-69912502961
...
11
SUPPORT, BLADE ECH-X425000230
...
12
BLADE, TRIMMER ECH-X411000380
...
13
WASHER 6.5x15.5x0.6 ECH-69911804560
...
14
BOLT 6x18 ECH-69911504660
...
14
BOLT 6x20 S/N 509359 & UP ECH-69911521460
...
15
SCABBARD ECH-X495000150
...
16
BOLT 4x10 S/N 001001 - 001318 ECH-90016204010
...
17
COVER, GEAR CASE S/N 001001 - 001318 ECH-61041105361
...
18
GASKET, GEAR CASE INCLUDED IN GASKET KIT - P/N 88900006560 ECH-61041405360
...
19
SEAL ECH-61042504560
...
20
ROD, CONNECTING ECH-C532000121
...
21
GEAR ECH-61031204560
...
22
SCREW 6x25 ECH-90021206025
...
23
WASHER ECH-61035004560
...
24
PLATE, EYE ECH-69911807760
...
25
BOLT 8x8 SP ECH-90010008008
...
26
BOLT 5x25 ECH-90016205025
...
27
BOLT 5x12 ECH-90016205012
...
28
PLATE, GEAR CASE S/N 001319 & UP ECH-61044707760
...
29
COVER, GEAR CASE S/N 001319 & UP ECH-61041107760
...
30
BOLT 4x12 S/N 001319 & UP ECH-90016204012
...
31
T-WRENCH 13x19x180 ECH-89541006961
...
32
SPANNER 8x10 ECH-89511200330
...
xx
GASKET KIT INCLUDES REF. NO 18 ECH-P021000352

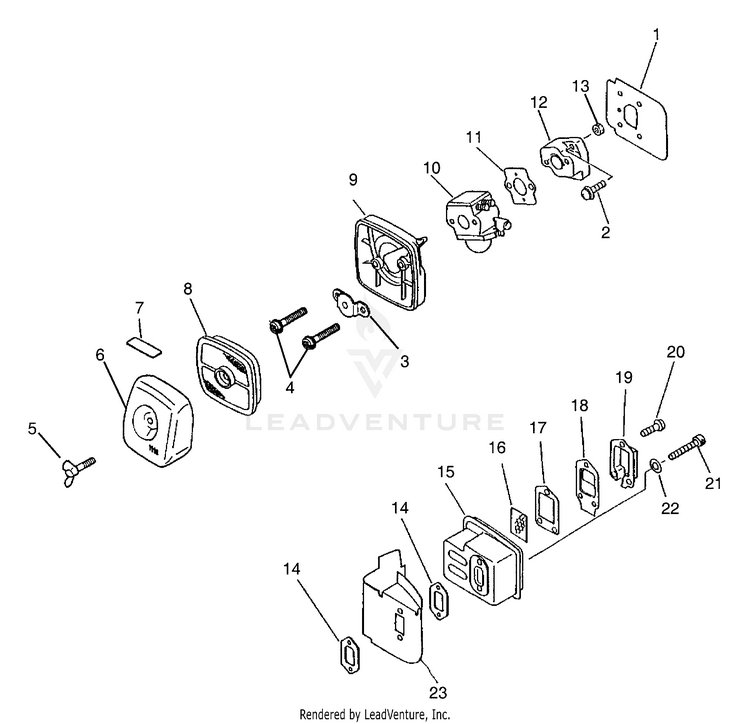

Intake, Air Cleaner, Exhaust

...
...
1
HEAT SHIELD, INTAKE INCLUDED IN GASKET KIT - P/N 88900006560 ECH-V103001360
...
2
SCREW 5x20 ECH-90023805020
...
3
PLATE, PREVENT ECH-12901152730
...
4
SCREW 5x65 ECH-90024205065
...
5
BOLT, WING 5x20 ECH-21041752730
...
6
COVER, AIR FILTER - GRAY ECH-13031306563
...
7
LABEL - CHOKE ECH-89012106360
...
8
FILTER, AIR ECH-13031006560
...
8
FILTER, AIR - DOUBLE LAYER INCLUDED IN FILTER KIT - P/N 90008 ECH-A226001410
...
9
CASE, AIR FILTER - GRAY ECH-P021002921
...
10
CARBURETOR C1U-K51 HC-2410 ECH-12520005967
...
11
GASKET, INTAKE INCLUDED IN GASKET KIT - P/N 88900006560 ECH-13001642031
...
12
INSULATOR, INTAKE ECH-13001742031
...
13
NUT M5 ECH-90050000005
...
14
GASKET, EXHAUST INCLUDED IN GASKET KIT - P/N 88900006560 ECH-V104000160
...
15
MUFFLER ECH-14580642030
...
16
SCREEN, SPARK ARRESTER ECH-14586240630
...
17
GASKET, EXHAUST S/N 001001-511338. INCLUDED IN GASKET KIT - P/N 88900006560 ECH-14586642031
...
17
GASKET, EXHAUST S/N 511339 & UP. INCLUDED IN GASKET KIT - P/N P021000350 ECH-V104000003
...
18
GUIDE, EXHAUST ECH-14587642030
...
19
GUIDE, EXHAUST - INNER S/N 001001-516430 ECH-14586308960
...
19
GUIDE, EXHAUST - INNER S/N 516431 & UP ECH-A313000010
...
20
SCREW 4x10 ECH-90024204010
...
21
BOLT 5x55 ECH-90010505055
...
22
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
23
HEAT SHIELD, EXHAUST ECH-A320000251
...
xx
GASKET KIT INCLUDES REF. NO 17 ECH-P021000352
...
xx
GASKET KIT INCLUDES REF. NO's. 1, 11, 14 and 17 ECH-P021000352
...
xx
TUNE-UP KIT - YOUCAN™ INCLUDES REF. NO 8 ECH-90152Y
