Echo HC-140 Hedge Trimmer (HC/HCS)

Model: HC-140

Save Part Not Listed?
product name

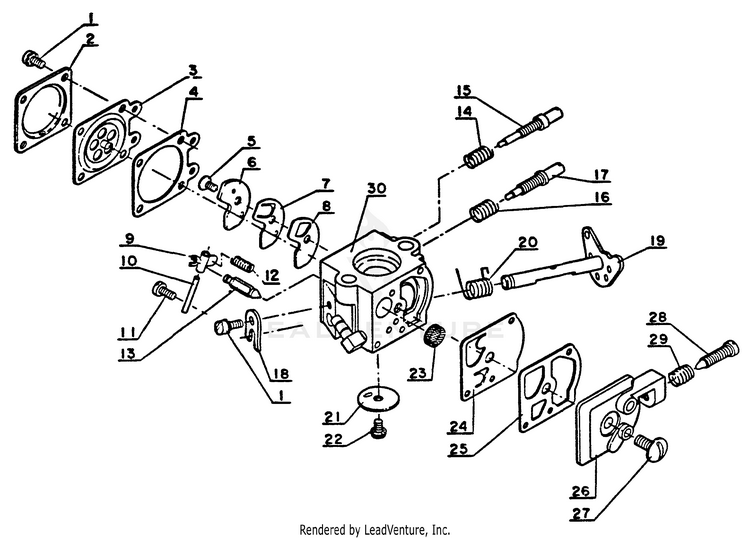

Carburetor

...
...
xx
CARBURETOR - WA Consists of items 1-30 ECH-12300001360
...
1
SCREW Included in Kwik Kit P/N 12310006520 ECH---
...
2
COVER, MET. DIA. ECH-P003006890
...
3
DIAPHRAGM, METERING Included in Kwik Kit P/N 12310006520 & Diaphragm Kit P/N 12310103930 ECH---
...
4
GASKET, METERING ECH---
...
5
SCREW, CIRCUIT PLATE ECH-12316705230
...
6
PLATE, CIRCUIT ECH-12316603930
...
------------------
DIAPHRAGM, CIRCUIT PLATE Included in Kwik Kit P/N 12310006520 ECH---
...
8
GASKET, CIRCUIT PLATE Included in Kwik Kit P/N 12310006520 ECH---
...
9
LEVER, METERING Included in Kwik Kit P/N 12310006520 ECH---
...
10
PIN, METERING LEVER Included in Kwik Kit P/N 12310006520 ECH---
...
11
SCREW, METERING LEVER PIN Included in Kwik Kit P/N 12310006520 ECH---
...
12
SPRING, METERING LEVER Included in Kwik Kit P/N 12310006520 ECH---
...
13
VALVE, INLET NEEDLE Included in Kwik Kit P/N 12310006520 ECH---
...
------------------
SPRING, NEEDLE Included in Kwik Kit P/N 12310006520 ECH---
...
15
NEEDLE, HIGH SPEED ECH-12312006530
...
16
SPRING, IDLE ADJUST Included in Kwik Kit P/N 12310006520 ECH---
...
17
NEEDLE, IDLE ECH-12311806530
...
18
CLIP, THROTTLE SHAFT ECH-12312703930
...
19
SHAFT, THROTTLE ECH-12311701360
...
20
SPRING, THROTTLE RETURN ECH-12311309660
...
21
VALVE, THROTTLE ECH-12311606530
...
22
SCREW ECH-12311403930
...
23
STRAINER Included in Kwik Kit P/N 12310006520 ECH---
...
------------------
DIAPHRAGM, PUMP Included in Kwik Kit P/N 12310006520 & Diaphragm Kit P/N 12310103930 ECH---
...
------------------
GASKET, PUMP Included in Kwik Kit P/N 12310006520 & Diaphragm Kit P/N 12310103930 ECH---
...
26
COVER, PUMP ECH-12312401360
...
27
SCREW, PUMP COVER ECH-P003006850
...
28
SCREW, IDLE ADJUST ECH-12313406320
...
29
SPRING ECH-12313306320
...
30
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
xx
REPAIR KIT, CARBURETOR ECH-12310006520
...
xx
GASKET / DIAPHRAGM KIT ECH-12310103930

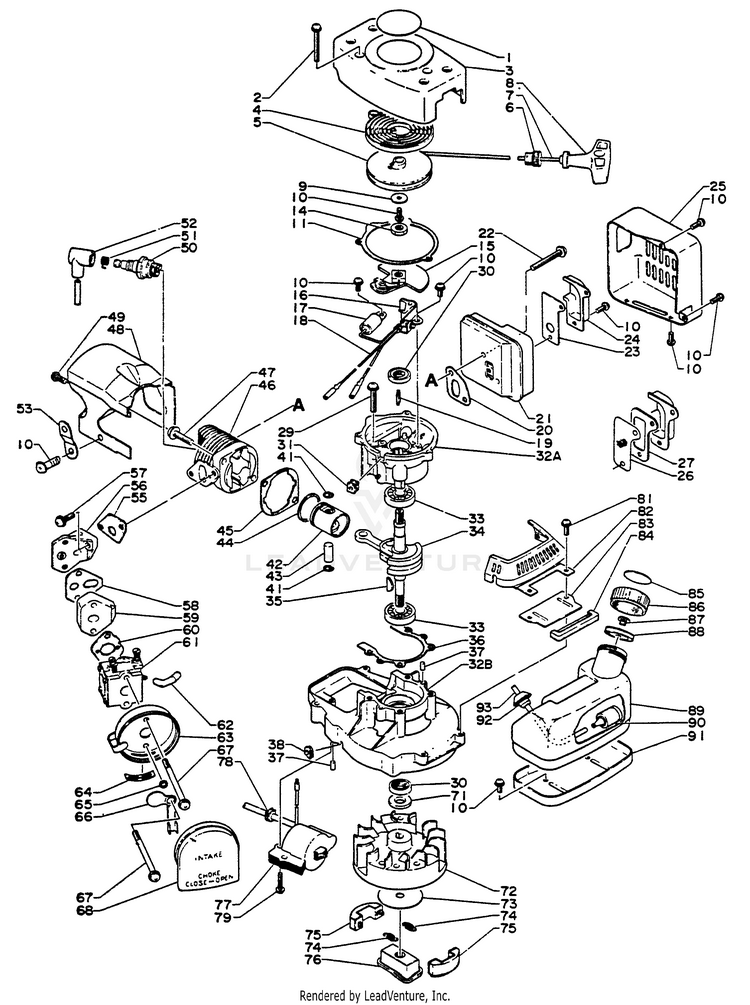

Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys

...
...
1
LABEL - ECHO ECH-X502000320
...
2
SCREW 4x40 ECH-90024204040
...
xx
STARTER ASSY. Includes Items 3-10 ECH-17720001361
...
3
CASE, STARTER ECH-17720901360
...
4
SPRING, RECOIL ECH-17722006530
...
5
REEL, ROPE ECH-17721504920
...
6
GUIDE, ROPE ECH-17722705330
...
7
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
8
GRIP, STARTER ECH-17722806530
...
9
WASHER 4.1x15.5x1T ECH-17721404630
...
10
SCREW 4x10 ECH-90024204010
...
10
SCREW 4x10 ECH-90024204010
...
11
GASKET, STARTER ECH-10061504921
...
14
NUT 8x1.25 ECH-90050200008
...
15
PAWL ASSY, STARTER ECH-17730504920
...
16
CONTACT POINT SET ECH-15010104920
...
17
CONDENSER ECH-15012704920
...
18
LEAD - GROUND ECH-15050506320
...
19
PAD, OIL ECH-15613403730
...
20
GASKET, MUFFLER ECH-14551021931
...
21
CASE, MUFFLER ECH-14580606320
...
22
SCREW 5x40 ECH-90024205040
...
23
COVER, MUFFLER ECH-14580921930
...
24
COVER, MUFFLER ECH-14587601360
...
25
COVER, MUFFLER ECH-14562101360
...
29
SCREW 5x30 ECH-90024205030
...
30
SEAL, OIL ECH-10021305930
...
31
GROMMET, LEAD ECH-15011404920
...
32
CRANKCASE SET Includes ITEM 37 ECH-10020001361
...
37
PIN, LOCATING 4 ECH-V622000020
...
33
BEARING, BALL 6200 ECH-90081036200
...
34
CRANKSHAFT ECH-10010004921
...
35
KEY ECH-10014200330
...
36
GASKET, CRANKCASE Use Gasket Kit, P/N 88900001361 ECH---
...
38
GROMMET ECH-15611404920
...
41
RING, SNAP ECH-10001504630
...
42
PISTON ECH-10001007330
...
43
PIN, PISTON ECH-10001304920
...
44
RING, PISTON ECH-10001105930
...
45
GASKET, CYLINDER Use Gasket Kit, P/N 88900001361 ECH---
...
46
CYLINDER ECH-10101104920
...
47
SCREW 6x22 ECH-90024206022
...
49
SCREW 5x10 ECH-90024205010
...
48
COVER, CYLINDER ECH-10151401360
...
50
FLYWHEEL ECH-159010-00330
...
51
TERMINAL, SPARK PLUG ECH-15901103432
...
26
SCREEN, SPARK ARRESTER SAM type ECH-14586206321
...
27
COVER, MUFFLER SAM type ECH-14580921930
...
52
CAP, SPARK PLUG ECH-15901201620
...
53
BRACKET ECH-10151801360
...
55
GASKET ECH-13001001361
...
56
BASE, INSULATOR ECH-13001301360
...
57
SCREW 5x16 ECH-90024205016
...
58
GASKET ECH-13002201361
...
59
INSULATOR ECH-13001701360
...
60
GASKET ECH-13001604922
...
61
CARBURETOR - WA ECH-12300001360
...
62
TUBE ECH-13011001360
...
63
CASE, AIR FILTER Includes Item 64 ECH-13030101360
...
64
GROMMET ECH-17881006530
...
65
WASHER 5.2x8x0.8T ECH-17851600830
...
66
SHUTTER, CHOKE ECH-17851501360
...
67
SCREW 5x57 ECH-90024205057
...
68
FILTER, AIR, FELT ECH-13031003060
...
71
WASHER ECH-10013206530
...
72
FLYWHEEL ECH-15020004920
...
73
PLATE, CLUTCH ECH-17501904920
...
74
SPRING, CLUTCH ECH-17501806530
...
75
SHOE, CLUTCH ECH-17501704631
...
76
BOSS, CLUTCH ECH-17501604920
...
77
COIL, IGNITION ECH-15012604920
...
78
GROMMET ECH-15611004920
...
79
SCREW 4x20 ECH-90024204020
...
81
SCREW 4x12 ECH-90024204012
...
82
COVER ECH-10061601360
...
83
BRACKET ECH-13191001360
...
84
CUSHION, FUEL TANK ECH-13192007930
...
85
LABEL - FUEL MIX ECH-89015403930
...
xx
CAP ASSY Includes Items 86-88 ECH-13160022130
...
86
CAP ECH-13101704930
...
87
VALVE ECH-A356000070
...
88
HOLDER, CHECK VALVE ECH-13101504931
...
89
BRACKET ECH-13101001360
...
90
FILTER, FUEL ECH-A369000480
...
91
BRACKET ECH-13191801360
...
92
GROMMET ECH-13211504920
...
93
PIPE, FUEL ECH-13201002160

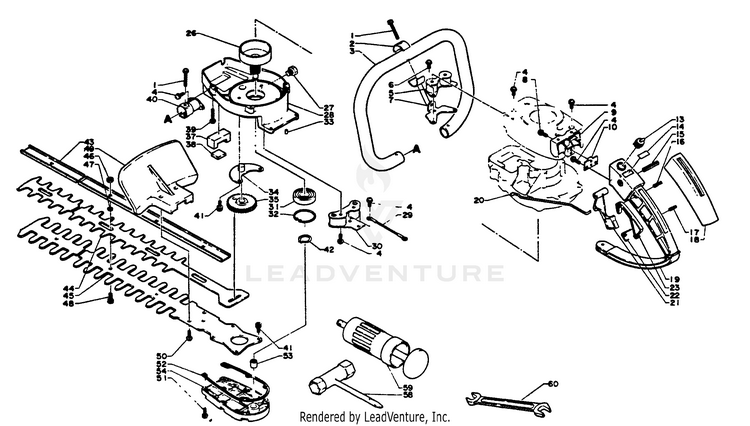

Gear Case, Handles, Blades, Throttle, Tools

...
...
1
SCREW 4x30 ECH-90024204030
...
2
PLATE ECH-35164101360
...
3
HANDLE, FRONT ECH-35161001360
...
4
SCREW 4x12 ECH-90024204012
...
5
CUSHION ECH-35160501360
...
6
SCREW 4x8 ECH-90024204008
...
7
BRACKET ECH-35161301361
...
8
SCREW 4x12 ECH-90024204012
...
9
CUSHION ECH-35110501360
...
10
PLATE ECH-35112601360
...
13
SWITCH, ON-OFF ECH-16340002160
...
14
LABEL - ON-OFF ECH-89015711130
...
15
PIN, SPRING 5x32 ECH-90034050032
...
16
PIN, SPRING 4x16 ECH-90034040016
...
17
PIN, SPRING 3x14 ECH-90034030014
...
18
GRIP ECH-35111101360
...
19
HANDLE ECH-35111002160
...
20
ROD, THROTTLE ECH-17801101360
...
21
TRIGGER, THROTTLE ECH-17801001360
...
22
SPRING, TORSION ECH-17809101360
...
23
LOCKOUT, THROTTLE ECH-17809001360
...
26
DRUM, CLUTCH ECH-17500501360
...
27
BOLT 8x8 SP ECH-90010008008
...
28
CASE, GEAR ECH-61041001360
...
29
LEAD - GROUND ECH-16201001360
...
30
CUSHION ECH-35110701360
...
31
BEARING, BALL 6003 ECH-90080206003
...
32
RING, SNAP 35 ECH-90070200035
...
33
PIN, LOCATING 4 ECH-V622000020
...
34
SHAFT ASSY, GEAR ECH-61030901360
...
35
GEAR, SPUR ECH-61030801360
...
37
SEAL, FELT ECH-61042601360
...
38
SEAL, FELT ECH-61043501360
...
39
SCREW 4x22 ECH-90024204022
...
40
CUSHION ECH-351607013610
...
41
BOLT 4x14 ECH-90016204014
...
42
RING, RETAINING - 16 ECH-90070100016
...
43
FRAME BAR ECH-69911001360
...
44
BLADE - UPPER ECH-69701001360
...
45
BLADE, TRIMMER - LOWER ECH-69701101360
...
46
NUT, LOCK M5 ECH-90056000005
...
47
SPACER ECH-69911101360
...
48
BOLT 5x12 ECH-90010505012
...
49
GUARD ECH-35180501360
...
50
SCREW 5x12 ECH-90024205012
...
51
SCREW 4x14 ECH-90024204014
...
52
GASKET, GEAR CASE ECH-61041401360
...
53
BEARING, NEEDLE ECH-61044201360
...
54
LID, GEAR CASE ECH-61041101360
...
58
T-WRENCH 17x19 L200 ECH-X602000020
...
59
PUMP, GREASE ECH-88030001260
...
60
SPANNER 10x13 ECH-89512303830
