Echo GT-2400 Grass Trimmer

Model: GT-2400

Back To Assemblies

Save Part Not Listed?
product name

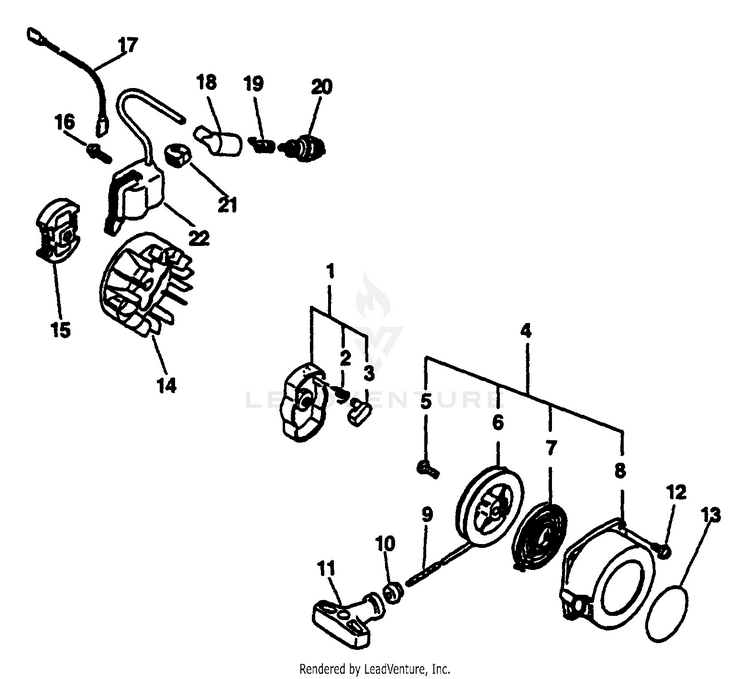

Clutch, Ignition, Starter

...
...
1
PAWL ASSY, STARTER INCLUDES ITEMS 2 & 3 ECH-17720212220
...
2
SPRING, RETURN ECH-17723412220
...
3
PAWL, STARTER - BLACK ECH-17721844330
...
4
STARTER ASSY, RECOIL INCLUDES ITEMS 5 - 11 ECH-17720042033
...
5
SCREW ECH-17723644330
...
6
REEL, ROPE ECH-17721544430
...
7
SPRING, RECOIL ECH-P022019680
...
8
CASE, RECOIL STARTER ECH-17723242032
...
9
ROPE, STARTER 3.0x1000 RePower BULK OPTION: 99944440000 ECH-17722610120
...
10
GUIDE, ROPE ECH-17722742030
...
11
GRIP, STARTER ECH-17722806530
...
12
BOLT 4x16 ECH-V202000830
...
13
LABEL - STARTER - ECHO ECH-X502000330
...
14
FLYWHEEL S/N 001001 - 001622 ECH-15680144731
...
14
FLYWHEEL S/N 001623 & UP ECH-15680109660
...
15
CLUTCH ASSY ECH-17500056831
...
16
SCREW 4x22 ECH-90016204022
...
17
LEAD - IGNITION ECH-V485001080
...
18
CAP, SPARK PLUG ECH-15901201620
...
19
TERMINAL, SPARK PLUG ECH-15901103432
...
20
SPARK PLUG - BPM7Y ECH-99944500071R
...
20
SPARK PLUG - BPMR7A CANADA MODELS ECH-15901010230
...
21
GROMMET ECH-15611240630
...
22
COIL, IGNITION S/N 001001 - 001622 ECH-15660152131
...
22
COIL,IGNITION S/N 001623 & UP ECH-15662609661
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000
