product name

Echo GT-2400 Grass Trimmer

Model: GT-2400

Back To Assemblies

Save Part Not Listed?
product name

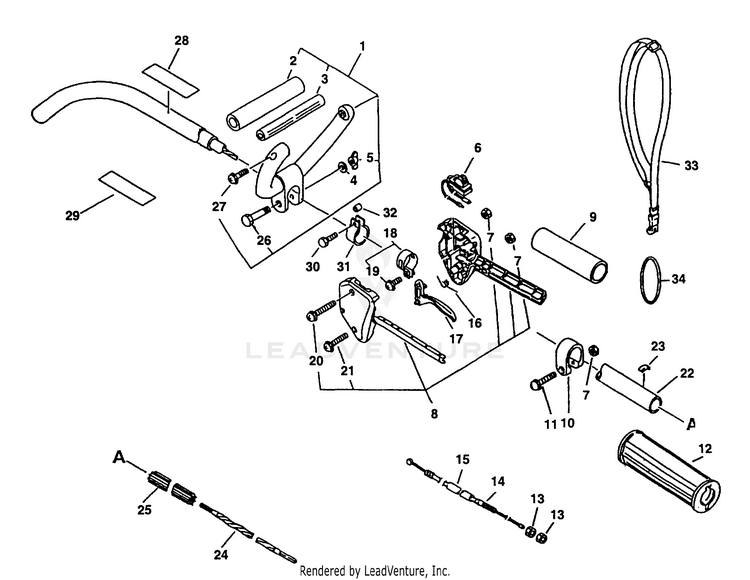

Driveshaft, Handles, Throttle, Stop Switch, Harness

...
...
1
HANDLE ASSY - LOOP INCLUDES ITEMS 2 - 5, 26 & 27 ECH-35120150630
...
2
GRIP, HANDLE ECH-35121351730
...
3
HANDLE ECH-35121051730
...
4
WASHER 6.5x11.5x0.8 ECH-90060000006
...
5
NUT, WING 6 ECH-90052500006
...
6
SWITCH ASSY, ON-OFF ECH-16340155631
...
7
NUT M5 ECH-90050000005
...
8
THROTTLE BRACKET SET INCLUDES ITEMS 7, 20 & 21 ECH-17800352731
...
9
GRIP, HANDLE ECH-35121352730
...
10
CLAMP ECH-61027252730
...
11
SCREW 5x28 ECH-90024205028
...
12
GRIP ECH-35111144530
...
13
NUT M6 ECH-90050200006
...
14
CABLE, THROTTLE ECH-17800144430
...
15
PIPE ECH-17812750330
...
16
SPRING, TORSION ECH-17804342230
...
17
TRIGGER, THROTTLE ECH-17801052130
...
18
CLAMP KIT Includes ITEM 19 ECH-30120152730
...
19
SCREW 5x14 ECH-90024205014
...
20
SCREW 5x35 ECH-90024205035
...
21
SCREW 5x25 ECH-90024205025
...
22
MAIN PIPE ASSY INCLUDES ITEMS 25, 28 & 29 ECH-61060944530
...
23
LABEL - ALIGNMENT ECH-89015204930
...
24
DRIVESHAFT - FLEXIBLE ECH-C506000090
...
25
LINER - FLEXIBLE ECH-61021744530
...
26
BOLT - 6x40 ECH-90010006040
...
27
SCREW 5x30 ECH-90024605030
...
28
LABEL - CAUTION ECH-X505009800
...
29
LABEL - CAUTION ECH-89022809560
...
30
BOLT 5x18 S/N 054000 & UP ECH-90010005018
...
31
HOOK S/N 054000 & UP ECH-30120723330
...
32
SPACER S/N 054000 & UP ECH-69901203330
...
33
HARNESS, SHOULDER S/N 054000 & UP ECH-C062000680
...
34
RING, HARNESS 32 S/N 054000 & UP ECH-30101652730
Schematic Image Zoomed
