Echo GT-2400 Grass Trimmer

Model: GT-2400

Back To Assemblies

Save Part Not Listed?
product name

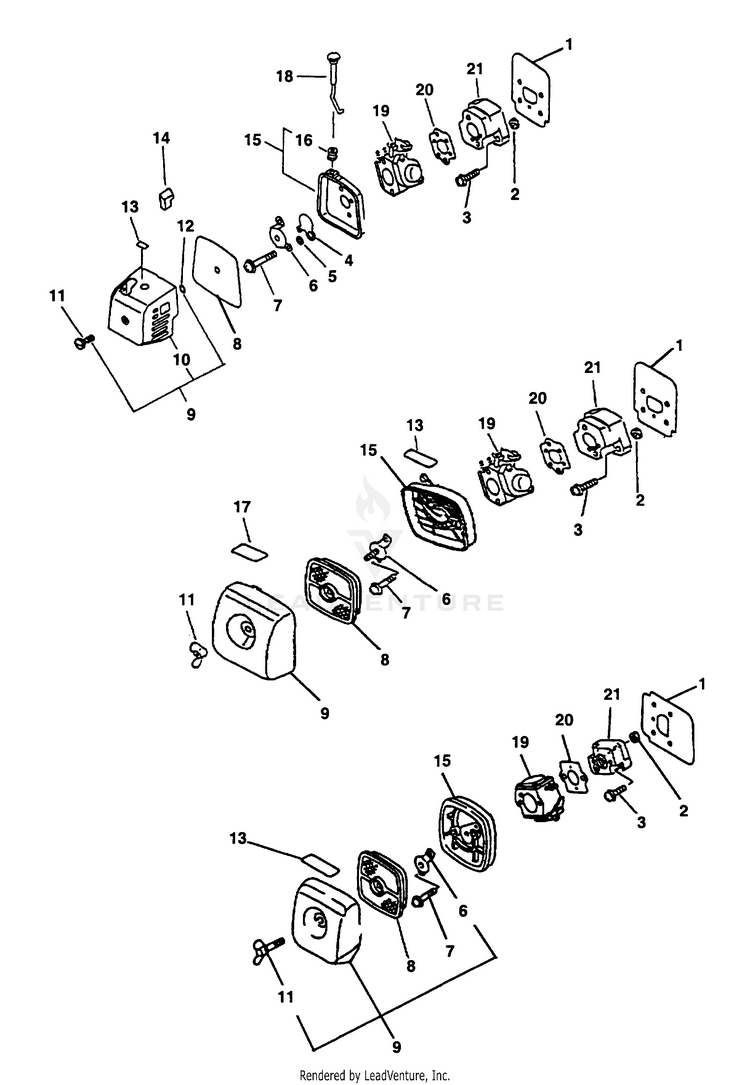

Intake, Air Cleaner

...
...
1
HEAT SHIELD, INTAKE INCLUDED IN KIT P/N 88900044632 ECH-V103001360
...
2
NUT M5 ECH-90050000005
...
3
SCREW 5x20 ECH-90023805020
...
4
SHUTTER, CHOKE ECH-17851504560
...
5
WASHER 5.2x8x0.8T ECH-17851600830
...
6
CASE, AIR FILTER S/N 001001 - 027403 ECH-13041044730
...
6
PLATE, PREVENT S/N 027404 - 100005 ECH-12901105060
...
6
PLATE, PREVENT S/N 100006 & UP ECH-12901106361
...
7
SCREW 5x57 S/N 001001 - 027403 ECH-90024205057
...
7
SCREW 5x65 S/N 027404 & UP ECH-90024205065
...
8
FILTER, AIR S/N 001001 - 027403 ECH-13031004560
...
8
FILTER, AIR - DOUBLE LAYER INCLUDED IN KIT 90008 S/N: 027404 - 999999 ECH-A226001410
...
9
COVER ASSY, AIR FILTER Includes ITEMS 10-12 S/N: 001001 - 027403 ECH-13030250630
...
9
COVER, AIR FILTER S/N 027404 - 100005 ECH-13030206561
...
9
COVER, AIR FILTER S/N 100006 & UP. INCLUDES ITEMS 6 & 11 ECH-13030206561
...
10
COVER, AIR FILTER ECH-13031350630
...
11
SCREW S/N 001001 - 027403 ECH-13041540630
...
11
WINGNUT - 6 S/N 027404 - 100005 ECH-90052800005
...
11
BOLT, WING 5x20 S/N 100006 & UP ECH-21041752730
...
12
O-RING ECH-90072000004
...
13
LABEL - CHOKE S/N 001001 - 027403 ECH-X506000070
...
13
LABEL - CHOKE S/N 027404 & UP ECH-89012106360
...
14
PLUG ECH-13033652130
...
15
CASE, AIR FILTER S/N 001001 - 027403. INCLUDES ITEM 16 ECH-13030104560
...
15
CASE, AIR FILTER - GRAY S/N 027404 & UP WHEN REPLACING ORIGINAL AIR CLEANER CASE WITH 13030706561, ALSO ORDER (2) 90024205065 SCREWS FOR PROPER RETENTION. ECH-P021002921
...
16
GROMMET, CHOKE ECH-17881005230
...
17
LABEL - TOP S/N 027404 - 096000 ECH-89018706960
...
18
ROD, CHOKE ECH-17851048830
...
19
CARBURETOR C1U-K52 SRM-2400 S/N 001001 - 103574 ECH-12520013317
...
19
CARBURETOR - WT-424C S/N 103575 & UP ECH-12300052133
...
20
GASKET, INTAKE INCLUDED IN KIT P/N 88900044632 ECH-13001642031
...
21
INSULATOR, INTAKE ECH-13001742031
...
xx
GASKET KIT ECH-88900005065
...
xx
TUNE-UP KIT - YOUCAN™ ECH-90152Y
