Echo GT-2400 Grass Trimmer

Model: GT-2400

Back To Assemblies

Save Part Not Listed?
product name

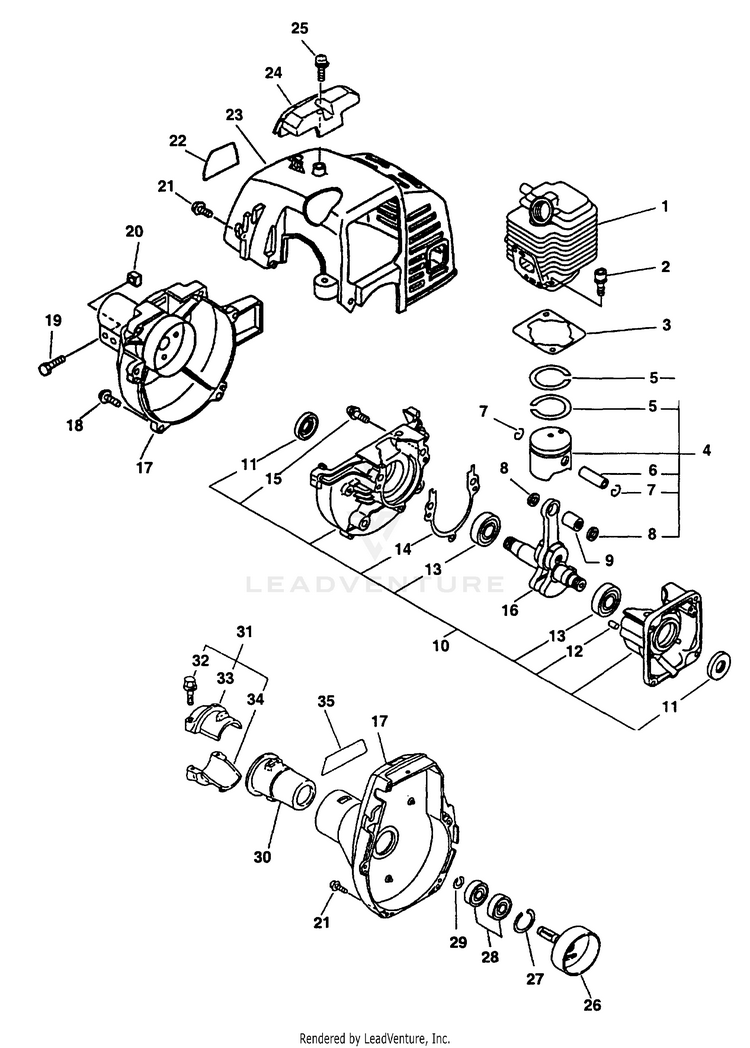

Crankcase, Engine, Fan Case

...
...
1
CYLINDER/PISTON KIT SRM-2400 ECH-P021035810
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER USE GASKET KIT P/N 88900044632 ECH-10101044332
...
4
PISTON KIT S/N 001001 - 053399. INCLUDES ITEMS 5-8 ECH-10000052130
...
4
PISTON KIT S/N 054000 & UP. INCLUDES ITEMS 5 - 8 ECH-10000052130
...
5
RING, PISTON S/N 001001 - 053399 ECH-10001121230
...
5
RING, PISTON S/N 054000 & UP ECH-10001109560
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
BEARING, NEEDLE 8 ECH-V553000010
...
10
CRANKCASE KIT INCLUDES ITEMS 11 - 15 (USE P/N SB1024) ECH---
...
11
SEAL, OIL 12 ECH-10021242031
...
12
PIN, LOCATING 4 ECH-V622000020
...
13
BEARING, BALL 6201 ECH-9403536201
...
14
GASKET, CRANKCASE USE GASKET KIT P/N 88900044632 ECH---
...
15
BOLT 5x28 ECH-90016205028
...
16
CRANKSHAFT ASSY Includes ITEM 8 (USE P/N SB1024) ECH---
...
17
COVER ASSY, FAN S/N 001001 - 082499 ECH-10150356630
...
17
COVER ASSY, FAN S/N 082500 & UP ECH-10150352131
...
18
SCREW 4x18 ECH-90023804018
...
19
BOLT 5x28 ECH-90014205028
...
20
NUT - 5 - SQUARE ECH-90056550005
...
21
BOLT 4x16 ECH-V202000830
...
22
LABEL - GT-2400 ECH-89011252730
...
23
COVER, ENGINE - GRAY S/N 001001 - 082499 ECH-10151448731
...
23
COVER, ENGINE S/N 082500 & UP ECH-10151448930
...
24
GUARD, TOP - GRAY S/N 001001 - 082499 ECH-15991248630
...
24
GUARD, TOP S/N 082500 & UP ECH-15991254130
...
25
SCREW 5x16 ECH-90025305016
...
26
DRUM, CLUTCH S/N 082500 & UP ECH-17500548931
...
27
RING, SNAP 28 S/N 082500 & UP ECH-90070200028
...
28
BEARING, BALL 6001 S/N 082500 & UP ECH-9406106001
...
29
RING, SNAP 12 SIN 082500 & UP ECH-90070100012
...
30
CUSHION S/N 082500 & UP ECH-61091052730
...
31
HOLDER KIT S/N 082500 & UP. INCLUDES ITEM 32 - 34 ECH-61090352130
...
32
BOLT - 5x25 S/N 082500 & UP ECH-90014205025
...
33
HOLDER, MAIN PIPE - UPPER S/N 082500 & UP ECH-61092251030
...
34
HOLDER S/N 082500 & UP ECH-61092352130
...
35
LABEL - GT-2400 S/N 082500 & UP ECH-89011252730
...
xx
SHORT BLOCK ES-2400 ECH-SB1027
...
xx
GASKET KIT ECH-88900005065
...
xx
GASKET, CYLINDER ECH-10101044332
...
xx
GASKET, EXHAUST ECH-14586642031
...
xx
GASKET, EXHAUST ECH-V104000160
...
xx
GASKET, CRANKCASE ECH---
...
xx
HEAT SHIELD, INTAKE ECH-V103001360
...
xx
GASKET, INTAKE ECH-13001642031
...
xx
TUNE-UP KIT - YOUCAN™ REPOWER KIT. S/N 027404 & UP ECH-90152Y
...
xx
TUNE-UP KIT - YOUCAN™ REPOWER KIT ECH-90152Y
...
xx
CAP/VENT KIT - REPOWER REPOWER KIT. FOR ALL MODELS ECH-90248
