Echo GT-2400 Grass Trimmer

Model: GT-2400

Back To Assemblies

Save Part Not Listed?
product name

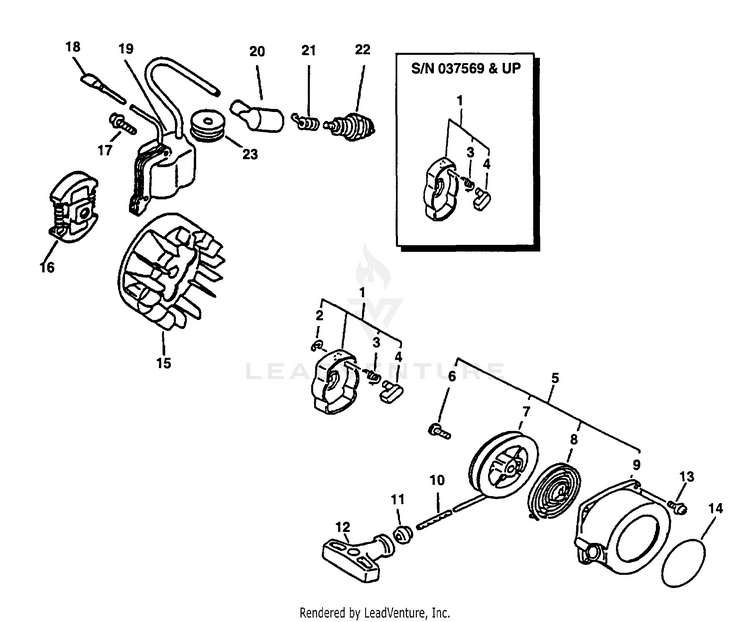

Clutch, Ignition, Starter

...
...
1
PAWL ASSY, STARTER INCLUDES ITEMS 2 - 4. S/N 001001 - 037568 ECH-17720212220
...
1
PAWL ASSY, STARTER INCLUDES ITEMS 3 - 4. S/N 037569 & UP ECH-17720212220
...
2
E-RING 4 S/N 001001 - 037568 ECH-90070000004
...
3
SPRING, RETURN ECH-17723412220
...
4
PAWL, STARTER S/N 001001 - 037568 ECH-17721842030
...
4
PAWL, STARTER - BLACK S/N 037569 & UP ECH-17721844330
...
5
STARTER ASSY, RECOIL INCLUDES ITEMS 6 - 12 ECH-17720042033
...
6
SCREW ECH-17723644330
...
7
REEL, ROPE ECH-17721544430
...
8
SPRING, RECOIL ECH-P022019680
...
9
CASE, RECOIL STARTER ECH-17723242032
...
10
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH-P022006800
...
11
GUIDE, ROPE ECH-17722742030
...
12
GRIP, STARTER ECH-17722806530
...
13
BOLT 4x16 ECH-V202000830
...
14
LABEL - STARTER - ECHO ECH-X502000330
...
15
FLYWHEEL S/N 001001 - 120980 ECH-15680144731
...
15
FLYWHEEL S/N 120981 & UP ECH-15680109660
...
16
CLUTCH ASSY ECH-17500056831
...
17
SCREW 4x22 ECH-90016204022
...
18
LEAD - IGNITION S/N 103037 & UP ECH-V485001080
...
19
COIL, IGNITION S/N 001001 - 103036 ECH-15660144732
...
19
COIL, IGNITION S/N 103037 - 120980 ECH-15660152131
...
19
COIL,IGNITION S/N 120981 & UP ECH-15662609661
...
20
CAP, SPARK PLUG ECH-15901201620
...
21
TERMINAL, SPARK PLUG ECH-15901103432
...
22
SPARK PLUG - BPMR7A ECH-15901010230
...
23
GROMMET S/N 001001 - 082499 ECH-15011244330
...
23
GROMMET S/N 082500 & UP ECH-15611240630
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000
