Echo GT-2400 Grass Trimmer

Model: GT-2400

Back To Assemblies

Save Part Not Listed?
product name

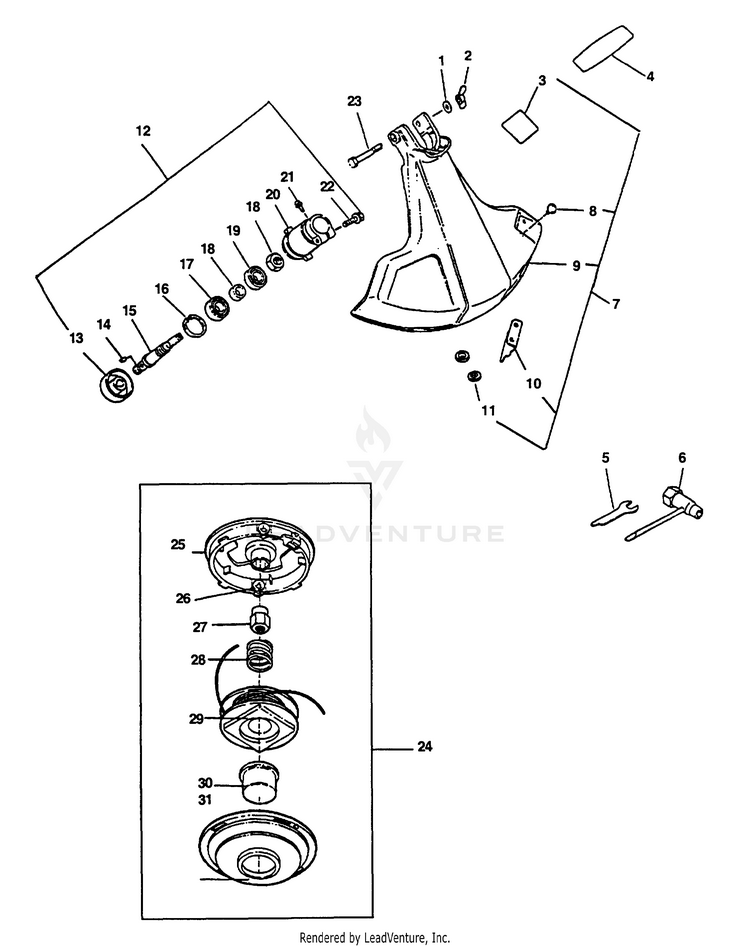

Shield, Gear Case, Tools, Line Head

...
...
1
WASHER 6.5x11.5x0.8 ECH-90060000006
...
2
NUT, WING 6 ECH-90052500006
...
3
LABEL - CAUTION ECH-89016844330
...
4
LABEL - ECHO S/N 001001 - 093826 ECH-X502000320
...
5
WRENCH ECH-89541009460
...
6
SPANNER ECH-89501526630
...
7
SHIELD ASSY, DEBRIS INCLUDES ITEMS 1 - 3, 8 - 11 & 23 ECH-P021053910
...
8
SCREW 5x16 ECH-90024205016
...
9
SHIELD, DEBRIS ECH-C550000870
...
10
CUTTER, LINE ECH-C554000080
...
11
NUT M5 ECH-90050000005
...
12
GEAR CASE ASSY (S/N 001001 - 096000). INCLUDES ITEMS 13-22 ECH-C056000012
...
12
GEAR CASE ASSY (S/N 096001 & UP). INCLUDES ITEMS 13-22 ECH-C056000012
...
13
PLATE, ADAPTOR - UPPER ECH-61031309630
...
14
PIN ECH-90030530006
...
15
SHAFT, GEAR ECH-61031009630
...
16
RING, SNAP 28 ECH-90070200028
...
17
BEARING, BALL ECH-9404206001
...
18
SPACER ECH-61031506530
...
19
NUT 12 L.H. ECH-90051300012
...
20
GEAR CASE ASSY ECH-C056000012
...
21
SCREW 4x10 ECH-90024204010
...
22
BOLT - 5x25 ECH-90014205025
...
23
BOLT - 6x50 S/N 001001 - 102488 ECH-90010006050
...
23
BOLT 1/4"-20x2" S/N 102489 & UP ECH-90001708064
...
24
KNIFE, TRIMMER LINE ACCESSORIES. INCLUDES ITEMS 25-31 ECH-99944200240
...
25
HOUSING ACCESSORIES ECH-69621052730
...
26
EYELET ACCESSORIES ECH-215703
...
27
SHAFT ACCESSORIES ECH-69621152730
...
28
SPRING ACCESSORIES ECH-215405
...
29
SPOOL ACCESSORIES ECH-69621452730
...
30
BUTTON ACCESSORIES ECH-215407
...
31
COVER ACCESSORIES ECH-69621752730
...
xx
GT SHOULDER STRAP KIT ACCESSORIES ECH-99944200201
...
xx
GT MANUAL HEAD ACCESSORIES ECH-99944200020
...
xx
MAXI-CUT ACCESSORIES ECH-215111
