Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

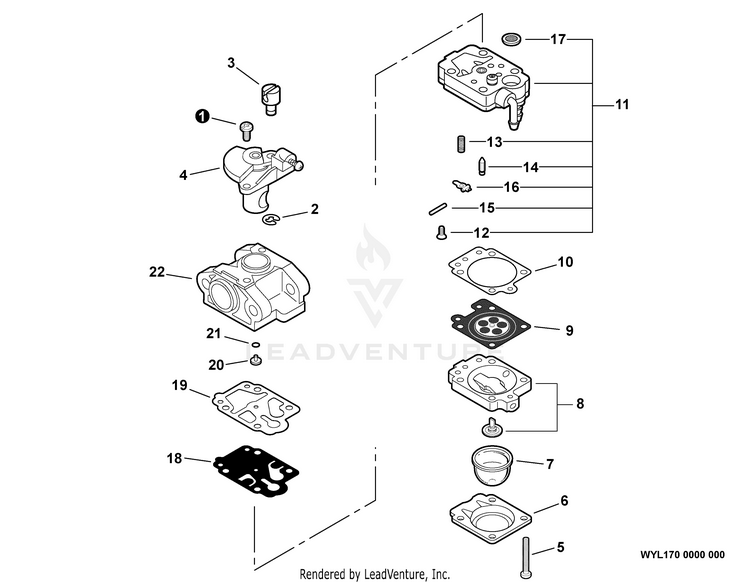

Carburetor -- WYL-170

...
...
xx
CARBURETOR - WYL-170 ECH-A021000550
...
1
SCREW, THROTTLE COLLAR ECH-12311444330
...
2
CLIP, SWIVEL ECH-P003006790
...
3
SWIVEL ECH-P003006810
...
4
VALVE ASSY, THROTTLE ECH-P003000840
...
5
SCREW, PUMP COVER ECH-P003006830
...
6
COVER, PRIMER PUMP ECH-P003006760
...
7
PURGE BULB ECH-P003006770
...
8
BODY, AIR PURGE ECH-P003007100
...
9
DIAPHRAGM, METERING ECH-P003000090
...
10
GASKET, M. DIAPHRAGM ECH-P003006780
...
11
BODY ASSY, PUMP Includes ITEMS 18-23 ECH-12317905560
...
12
SCREW, METERING LEVER PIN ECH---
...
13
SPRING, METERING LEVER ECH---
...
14
VALVE, INLET NEEDLE ECH---
...
15
PIN, METERING LEVER ECH---
...
16
LEVER, METERING ECH---
...
17
STRAINER ECH---
...
18
DIAPHRAGM, FUEL PUMP ECH-12311240630
...
19
GASKET, FUEL PUMP ECH-12312540630
...
20
JET, MAIN #37 ECH-12318444330
...
21
O-RING ECH-12318305960
...
22
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
