Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

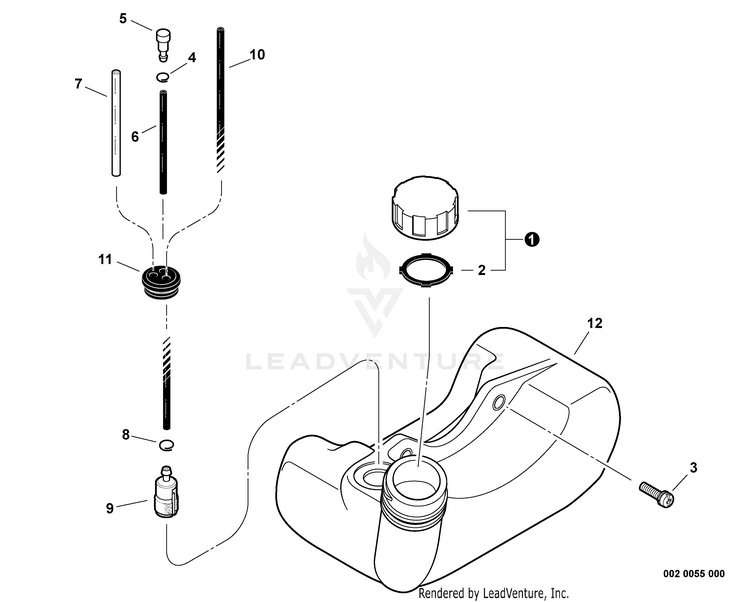

Fuel System

...
...
1
FUEL CAP ASSY Includes ITEM 2 ECH-P200000830
...
2
GASKET, FUEL CAP ECH-V107000230
...
3
SCREW 5x16 ECH-90024305016
...
4
CLIP 5.5 ECH-13011100530
...
5
VENT ASSY ECH-13130056431
...
6
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
7
PIPE, FUEL RETURN 3x6x70 RePower BULK OPTION: 90017 ECH-13271750430
...
8
CLIP 6 MM ECH-13201309820
...
9
FILTER, FUEL ECH-A369000480
...
10
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
11
GROMMET, FUEL 5 ECH-13211546730
...
12
TANK, FUEL ECH-A350000032
