Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

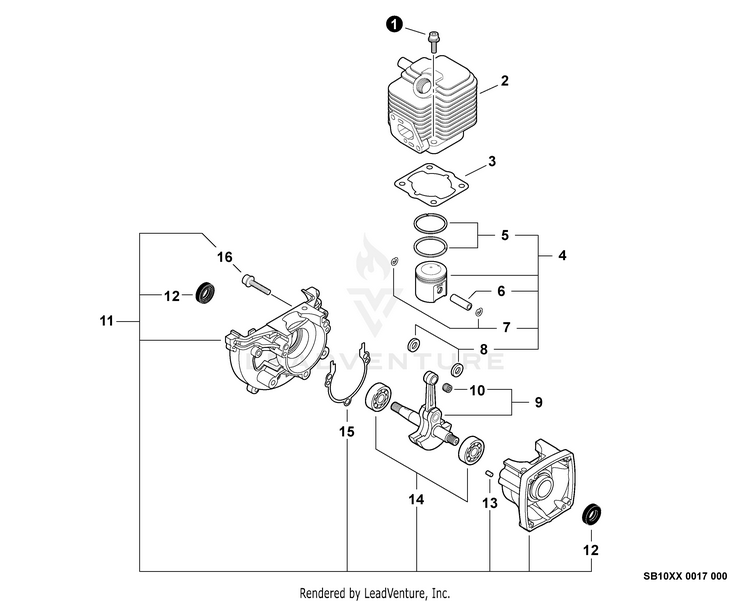

Engine

...
...
1
BOLT 5x22 ECH-90016205022
...
2
CYLINDER (SRM-22GES) ECH-A130002300
...
3
GASKET, CYLINDER ECH-10101044332
...
4
PISTON KIT Includes ITEMS 5-8 ECH-P021009950
...
5
RING, PISTON ECH-A101000000
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER 8.2x13x0.8 ECH-V306000150
...
9
CRANKSHAFT ASSY Includes ITEM 10 ECH-A011000002
...
10
BEARING, NEEDLE 8 ECH-V553000010
...
11
CRANKCASE KIT Includes ITEMS 12-16 ECH-10020452133
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4x8 ECH-90033040080
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
GASKET, CRANKCASE ECH-10024242030
...
16
BOLT 5x28 ECH-90016205028
Schematic Image Zoomed
