Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

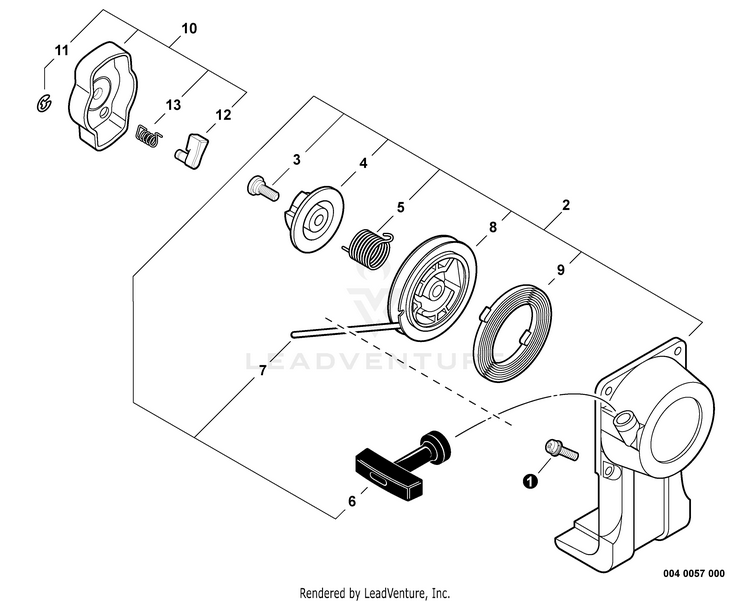

Starter

...
...
1
SCREW 4x16 ECH-90023804016
...
2
STARTER ASSY, RECOIL Includes ITEMS 3-9 ECH-A051001401
...
3
SCREW 5 ECH-V253000310
...
4
PLATE, CAM (NLA SEE PB 15-06) ECH-P022008280
...
5
SPRING, TORSION ECH-P022008270
...
6
GRIP, STARTER ECH-P022036700
...
7
ROPE, STARTER ECH-P022025730
...
8
REEL/CAM PLATE SET ECH-P050009900
...
9
SPRING, RECOIL ECH-P022019680
...
10
PAWL ASSY, STARTER Includes ITEMS 11-13 ECH-A052000180
...
11
E-RING 4 ECH-P022002100
...
12
PAWL, STARTER ECH-P022006850
...
13
SPRING, RETURN ECH-17723412220
