Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

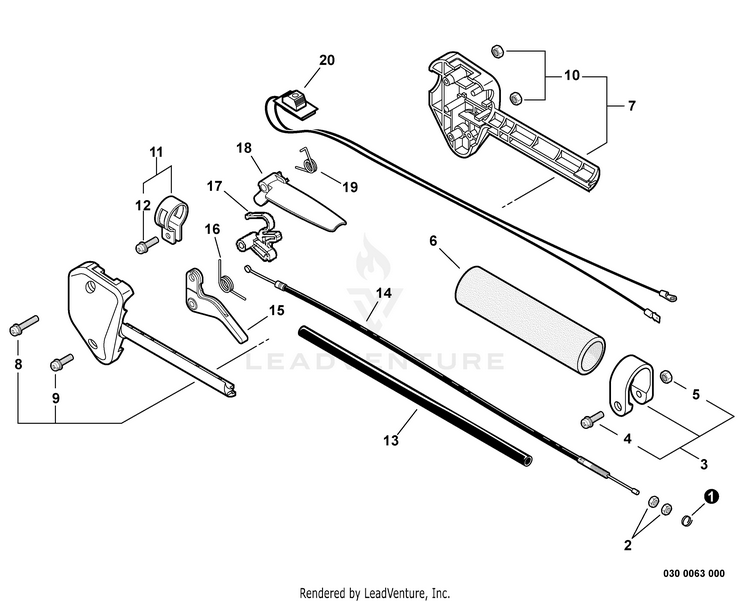

Control Handle, Throttle Cable, Ignition Switch

...
...
1
CLIP ECH-V490000440
...
2
NUT M6 ECH-90050200006
...
3
CLAMP KIT INCLUDES ITEMS 4-5 ECH-61027252130
...
4
SCREW 5x28 ECH-90024205028
...
5
NUT M5 ECH-90050000005
...
6
GRIP, HANDLE ECH-C403000140
...
7
HANDLE KIT, CONTROL INCLUDES ITEMS 8-10 ECH-17800352130
...
8
SCREW 5x35 ECH-90024205035
...
9
SCREW 5x25 ECH-90024205025
...
10
NUT M5 ECH-90050000005
...
11
CLAMP KIT Includes ITEM 12 ECH-30120029431
...
12
SCREW 5x14 ECH-90024205014
...
13
PIPE, 10x11x180 ECH-17812724430
...
14
CABLE, THROTTLE 320x77.5 ECH-V430001520
...
15
TRIGGER, THROTTLE ECH-17801052130
...
16
SPRING, TORSION ECH-17804342230
...
17
LOCKOUT, THROTTLE ECH-17801252630
...
18
LEVER, THROTTLE LOCKOUT ECH-17809052632
...
19
SPRING, TORSION ECH-17801352630
...
20
SWITCH, ON-OFF ECH-A440000651
