Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

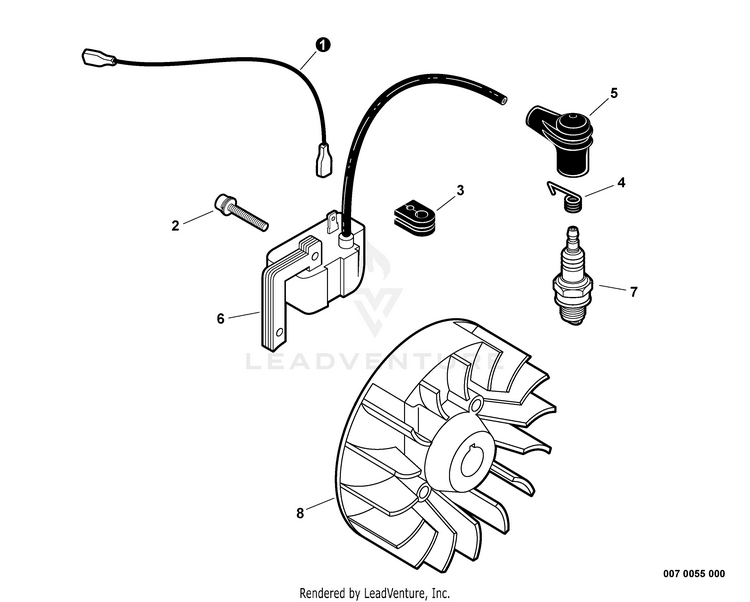

Ignition

...
...
1
LEAD - IGNITION ECH-V485001080
...
2
SCREW 4x22 ECH-90016204022
...
3
GROMMET ECH-15611240630
...
4
TERMINAL, SPARK PLUG ECH-15901103432
...
5
CAP, SPARK PLUG ECH-15901203433
...
6
COIL, IGNITION ECH-15660152131
...
7
SPARK PLUG - BPMR7A Included In RePower KIT ECH-15901010230
...
8
FLYWHEEL ECH-A409000100
