Echo GT-22GES Grass Trimmer

Model: GT-22GES

Back To Assemblies

Save Part Not Listed?
product name

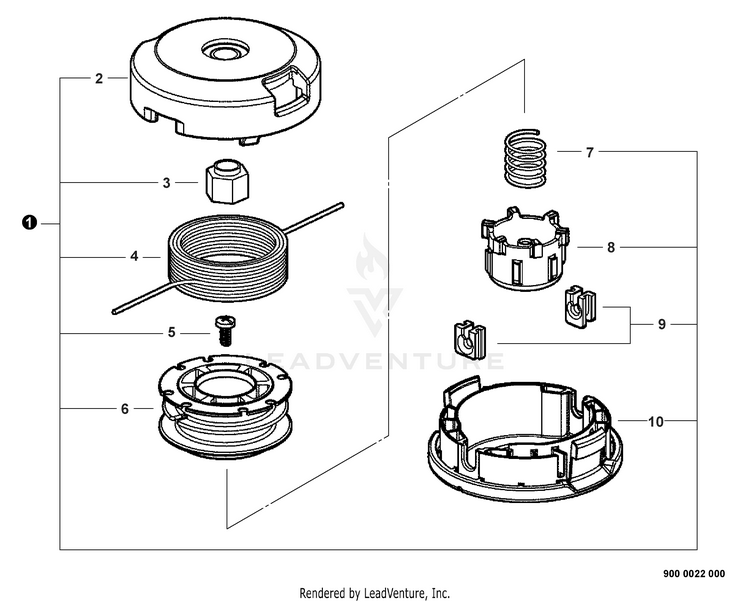

G137 Trimmer Head

...
...
1
HEAD, TRIMMER Includes item 2-10 ECH-X047000551
...
2
COVER, SPOOL ECH-P022025630
...
3
BUSHING ECH-P022025660
...
4
LINE, NYLON TRIMMER ECH-P022025600
...
5
SCREW ECH-P022025580
...
6
SPOOL ECH-P022025640
...
7
SPRING ECH-P022025650
...
8
BUTTON ECH-P022025560
...
9
EYELET ECH-P022025590
...
10
HOUSING, SPOOL ECH-P022025530
