product name

Echo GT-2102 Grass Trimmer

Model: GT-2102

Back To Assemblies

Save Part Not Listed?
product name

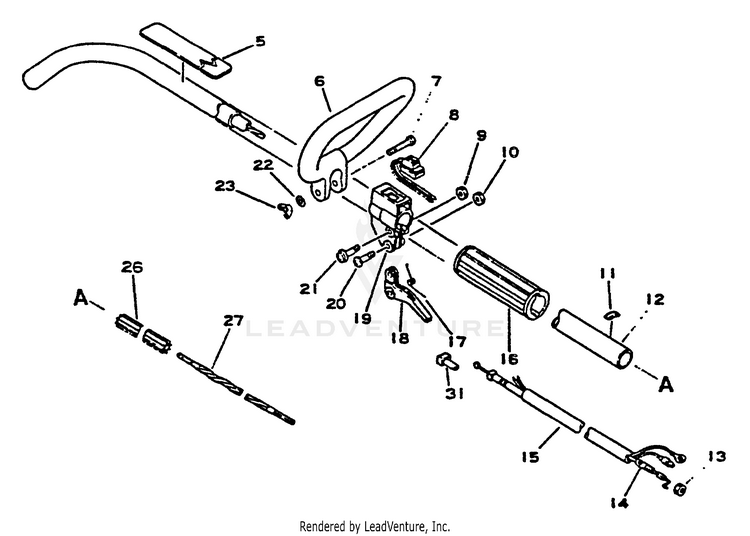

Driveshaft, Handles, Ignition Switch, Throttle

...
...
6
HANDLE ASSY - LOOP ECH-35120150630
...
7
BOLT - 6x40 ECH-90010006040
...
8
SWITCH ASSY, ON-OFF ECH-16340155631
...
9
NUT M5 ECH-90050000005
...
10
NUT, LOCK M5 ECH-90056000005
...
13
NUT M6 ECH-90050200006
...
14
CABLE, THROTTLE Used Prior To S/N 051001 ECH-17800144430
...
14
CABLE, THROTTLE Eff. S/N 051001 and Up ECH-17800144430
...
15
PIPE ECH-17812724030
...
16
GRIP ECH-35111144530
...
17
SPRING, THROTTLE ECH-17804306930
...
18
TRIGGER, THROTTLE ECH-C450000060
...
19
BRACKET, THROTTLE CONTROL ECH-17802448830
...
20
SCREW ECH-17811005330
...
21
SCREW 5x28 ECH-90022005028
...
22
WASHER 6.5x11.5x0.8 ECH-90060000006
...
23
NUT, WING 6 ECH-90052500006
...
27
DRIVESHAFT - FLEXIBLE L. 52-1/2 in. 1333.5mm D. 1/4 in. 6mm ECH-C506000090
...
31
GUIDE, CABLE ECH-17804805630
...
12
MAIN PIPE ASSY L. 53 in. 1346.2mm D. 7/8 in. 22mm ECH-61060944530
...
5
LABEL - CAUTION ECH-X505009800
...
5
LABEL - CAUTION Canadian CANADA MODELS ECH-89031749030
...
11
LABEL - ALIGNMENT ECH-89015204930
...
11
LABEL - ALIGNMENT CANADA MODELS ECH-89015204930
...
26
LINER - FLEXIBLE D. 6/8 in. 18mm ECH-61021744530
Schematic Image Zoomed
