Echo GT-2100 Grass Trimmer

Model: GT-2100

Back To Assemblies

Save Part Not Listed?
product name

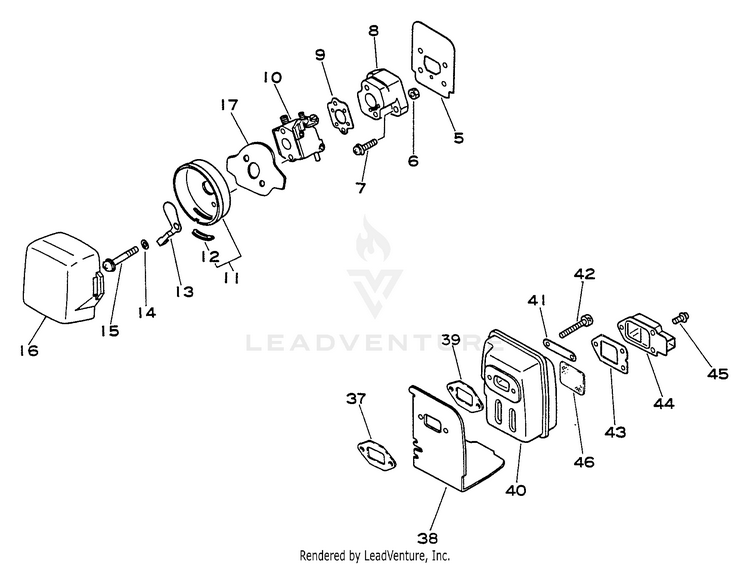

Intake, Exhaust, Air Cleaner

...
...
5
HEAT SHIELD, INTAKE ECH-V103001360
...
6
NUT M5 ECH-90050000005
...
7
SCREW 5x20 ECH-90023805020
...
8
INSULATOR, INTAKE ECH-13001742031
...
9
GASKET, INTAKE ECH-13001642031
...
10
CARBURETOR ECH-12520042031
...
11
CASE, AIR FILTER ECH-13030142030
...
12
BUSHING ECH-17881042030
...
13
SHUTTER, CHOKE ECH-17851546731
...
14
WASHER 5.2x8x0.8T ECH-17851600830
...
15
SCREW 5x55 ECH-90024205055
...
16
FILTER, AIR ECH-13031042030
...
17
PLATE, AIR FILTER ECH-13031942030
...
37
GASKET, EXHAUST ECH-V104000160
...
38
HEAT SHIELD, EXHAUST ECH-A320000251
...
39
GASKET, EXHAUST ECH-V104000160
...
40
MUFFLER ECH-14580642030
...
41
WASHER ECH-14564204930
...
42
BOLT 5x55 ECH-90010505055
...
43
GASKET, EXHAUST ECH-14586642031
...
44
COVER, MUFFLER ECH-145809-42030
...
45
SCREW 4x10 ECH-90023804010
...
46
SCREEN, SPARK ARRESTER ECH-14586240630
