Echo GT-200BE Grass Trimmer

Model: GT-200BE

Back To Assemblies

Save Part Not Listed?
product name

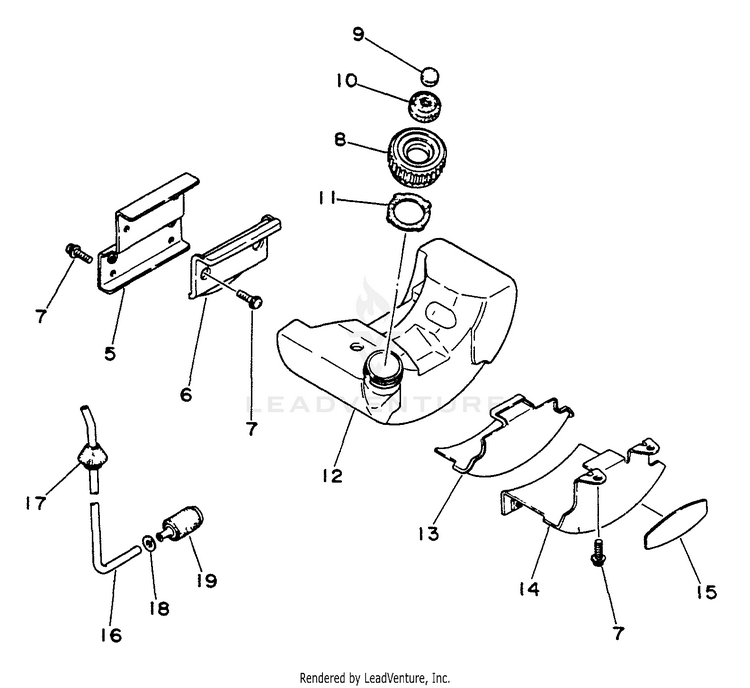

Fuel System

...
...
5
BRACKET, FUEL TANK ECH-13191009220
...
6
CUSHION, FUEL TANK ECH-13192009220
...
7
SCREW 4x14 ECH-90024204014
...
8
CAP ASSY Includes item 9 ECH-13100406320
...
9
FILTER, CHECK VALVE ECH-13131505020
...
10
VENT ASSY ECH-13131406320
...
11
PACKING ECH-13101604920
...
12
TANK, FUEL ECH-13101009220
...
13
CUSHION ECH-13192409220
...
14
BRACKET, FUEL TANK ECH-13191809220
...
15
LABEL - ECHO ECH-89011824030
...
------------------
PIPE, FUEL 3×6×135 BLACK ITEM NO LONGER AVAILABLE RePower BULK OPTION: 90015 ECH---
...
17
GROMMET ECH-13211504920
...
18
WASHER 5.5x12x0.8 ECH-90060300005
...
19
FILTER, FUEL ECH-A369000470
