Echo GT-200BE Grass Trimmer

Model: GT-200BE

Back To Assemblies

Save Part Not Listed?
product name

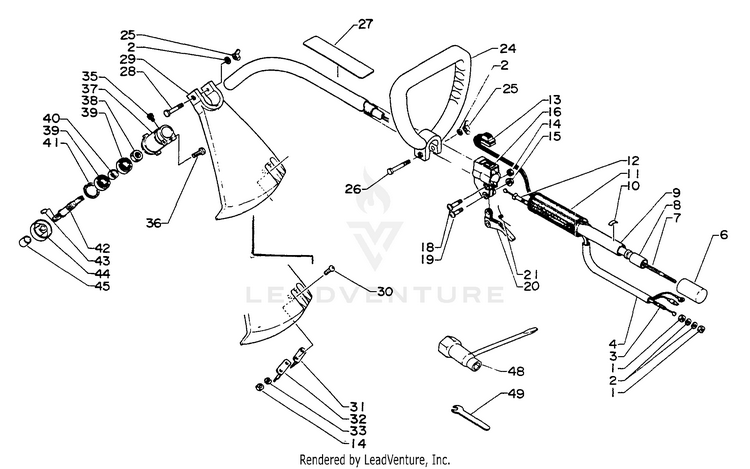

Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools

...
...
1
NUT M6 ECH-90050200006
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
3
CABLE, THROTTLE ECH-17800109630
...
4
PIPE ECH-17812724030
...
7
DRIVESHAFT - FLEXIBLE ECH-C506000030
...
8
BUSHING ECH-61021709630
...
9
MAIN PIPE ASSY ECH-61060944330
...
10
LABEL - ALIGNMENT ECH-89015204930
...
11
GRIP ECH-35111144530
...
12
GUIDE, CABLE ECH-17804805630
...
13
IGNITION SWITCH ASSY ECH-16340009630
...
14
NUT M5 ECH-90050000005
...
15
NUT, LOCK M5 ECH-90056000005
...
16
BRACKET, THROTTLE ECH-17802409630
...
18
SCREW 5x28 ECH-90024005028
...
19
SCREW ECH-17811005330
...
20
TRIGGER, THROTTLE ECH-C450000060
...
21
SPRING, THROTTLE ECH-17804306930
...
24
HANDLE ASSY Includes 2, 25, and 26 ECH-35160009630
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
25
NUT, WING 6 ECH-90052500006
...
26
BOLT - 6x40 ECH-90010006040
...
27
LABEL - CAUTION ECH-89016026632
...
xx
SHIELD ASSY, DEBRIS Consists of 2, 14, 25 and 28 thru 33 ECH-P021053910
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
14
NUT M5 ECH-90050000005
...
25
NUT, WING 6 ECH-90052500006
...
28
BOLT - 6x50 ECH-90010006050
...
29
SHIELD ASSY, DEBRIS ECH-P021053910
...
30
SCREW 5x14 ECH-90024005014
...
31
KNIFE, TRIMMER LINE ECH-69901606320
...
32
GUARD ECH-69921209630
...
33
WASHER, SPRING 5 ECH-90060500005
...
xx
GEAR CASE ASSY Consists of 35 thru 45 ECH-C056000012
...
35
SCREW 4x10 ECH-90024204010
...
36
BOLT - 5x25 ECH-90015205025
...
37
GEAR CASE ASSY ECH-C056000012
...
38
NUT 12 L.H. ECH-90051300012
...
39
BEARING, BALL ECH-9404206001
...
40
SPACER ECH-61031506530
...
41
RING, SNAP 28 ECH-90070200028
...
42
SHAFT, GEAR ECH-61031009630
...
43
PIN ECH-90030530006
...
44
PLATE, ADAPTOR - UPPER ECH-61031309630
...
48
WRENCH ECH-89541009460
...
49
SPANNER ECH-89501526630
...
------------------
CAP ECH---
...
------------------
CAP ECH---
