Echo GT-2000SB Type 1E Grass Trimmer

Model: GT-2000SB Type 1E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

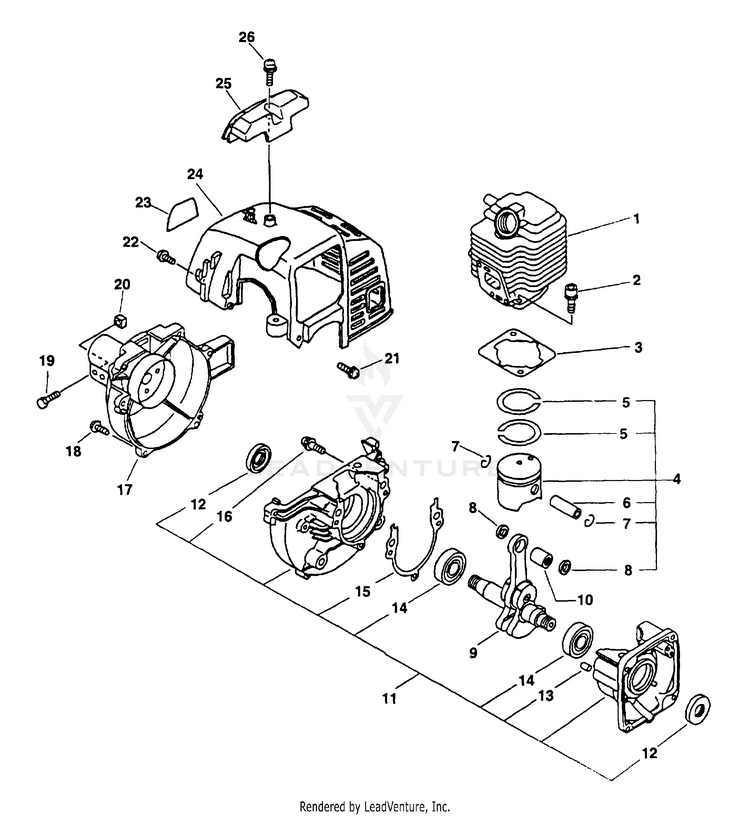

Engine, Fan Housing, Cover

...
...
1
CYLINDER ECH-10101106562
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER Included In GASKET KIT ECH-10101044332
...
4
KIT, PISTON INCLUDES ITEMS 5 - 8 ECH-P100013150
...
5
RING, PISTON ECH-10001105330
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
CRANKSHAFT Includes ITEM 10 ECH---
...
10
BEARING, NEEDLE 8 ECH-V553000010
...
11
CRANKCASE KIT Includes ITEMS 12-16 ECH---
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
GASKET, CRANKCASE Included In GASKET KIT ECH---
...
16
BOLT 5x28 ECH-90016205028
...
17
COVER ASSY, FAN ECH-10150356630
...
18
SCREW - 4x18 ECH-90016204018
...
19
BOLT 5x28 ECH-90014205028
...
20
NUT - 5 - SQUARE ECH-90056550005
...
21
SCREW 4x12 ECH-90025304012
...
22
SCREW 4x16 ECH-90025304016
...
23
LABEL - MODEL ECH-89011256630
...
24
COVER, ENGINE - GRAY ECH-10151448731
...
25
GUARD, TOP - GRAY ECH-15991248630
...
26
SCREW 5x16 ECH-90025305016
...
xx
SHORT BLOCK ES-2100;PB-2100 ECH-SB1026
...
xx
GASKET KIT ECH-88900042036
