product name

Echo GT-200 Grass Trimmer

Model: GT-200

Back To Assemblies

Save Part Not Listed?
product name

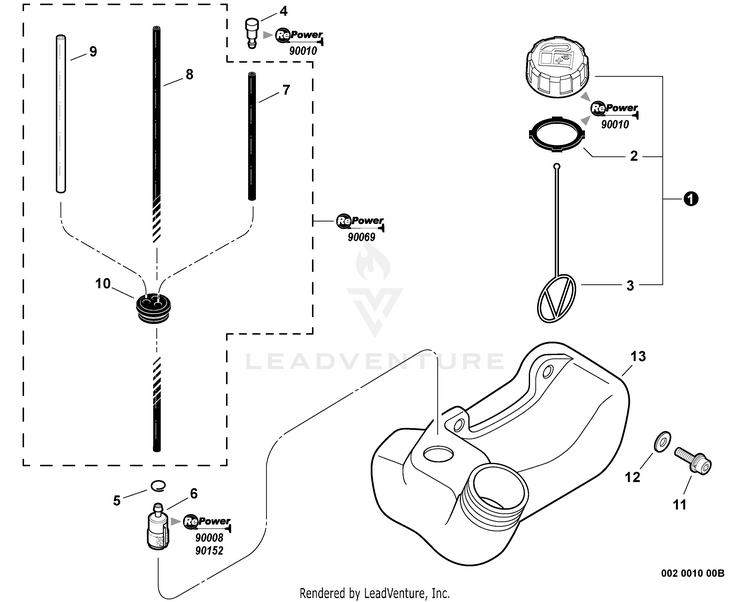

Fuel System

...
...
1
ASSY, FUEL CAP, ORANGE Includes ITEMS 2-3 ECH-P100014810
...
2
GASKET, FUEL CAP ECH-V107000230
...
3
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
4
VENT ASSY ECH-A356000031
...
5
CLIP 6 MM ECH-13201309820
...
6
FILTER, FUEL ECH-A369000480
...
7
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
8
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
9
PIPE, FUEL 3x6x80 YELLOW RePower BULK OPTION: 90017 ECH-V471006060
...
10
GROMMET, FUEL 5 ECH-13211546730
...
11
BOLT 5x20 ECH-90016205020
...
12
WASHER 5.5x12x0.8 ECH-90060300005
...
13
TANK, FUEL ECH-A350000690
...
14
TUNE-UP KIT - YOUCAN™ ECH-90152Y
...
15
CAP/VENT KIT - REPOWER ECH-90248
...
18
FUEL SYSTEM KIT - YOUCAN™ ECH-90069Y
...
19
TUNE-UP KIT - YOUCAN™ ECH-90152Y
...
16
BULK PIPE - 3x5 MM BLACK (4 PIECESx2 M) BLACK ECH-90014
...
17
BULK PIPE - 3x6 MM CLEAR (4 PIECESx2 M) CLEAR ECH-90017
