Echo GT-160A Grass Trimmer

Model: GT-160A

Back To Assemblies

Save Part Not Listed?
product name

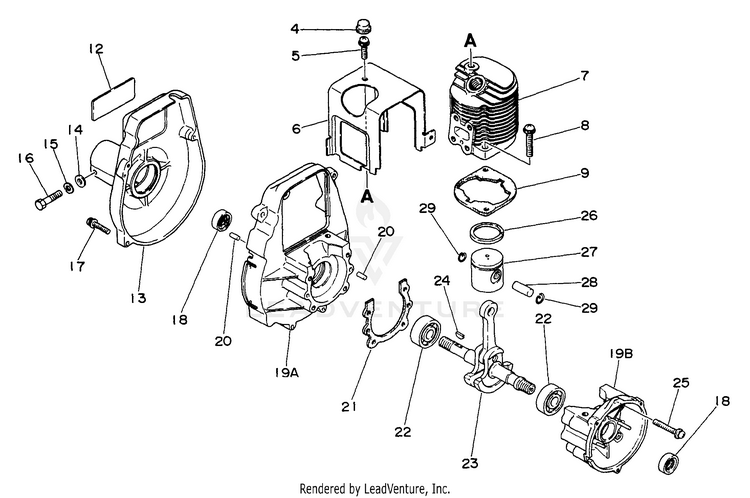

Engine, Crankcase, Fan Housing

...
...
4
SCREW - SOCKET HEAD CAP ECH-88051609220
...
5
SCREW 5x10 ECH-90024205010
...
6
COVER, ENGINE ECH-10151409220
...
7
CYLINDER ECH-10103409220
...
8
SCREW 6x20 ECH-90024206020
...
9
GASKET, CLY.BASE ECH-10101004921
...
12
LABEL - MODEL ECH-89011524030
...
13
CASE, FAN ECH-10151104920
...
14
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
15
WASHER, SPRING 5 ECH-90060500005
...
16
BOLT - 5x20 ECH-90015105020
...
17
SCREW 4x20 ECH-90024204020
...
18
SEAL, OIL ECH-10021305930
...
19
CRANKCASE SET Includes ITEM 20 ECH-10020004921
...
19A
CRANKCASE SET ECH-10020004921
...
19B
CRANKCASE SET ECH-10020004921
...
20
PIN, LOCATING 4 1 ECH-V622000020
...
21
GASKET, CRANKCASE ECH-10024204920
...
22
BEARING, BALL 6200 ECH-90081036200
...
23
CRANKSHAFT ECH-10010004921
...
24
KEY ECH-10014200330
...
25
SCREW 5x30 ECH-90024205030
...
26
RING, PISTON ECH-10001102160
...
27
PISTON KIT ECH-10000002160
...
28
PIN, PISTON ECH-10001321930
...
29
RING, SNAP ECH-10001504630
