Echo GT-160A Grass Trimmer

Model: GT-160A

Back To Assemblies

Save Part Not Listed?
product name

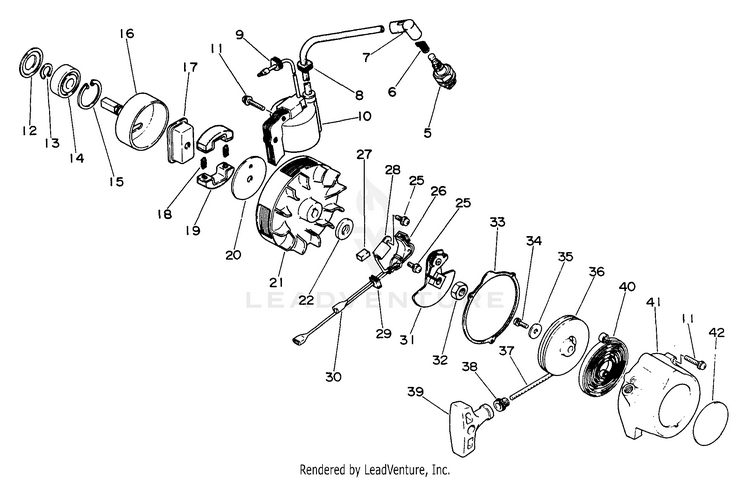

Clutch, Ignition, Starter

...
...
5
SPARK PLUG - CJ8 ECH-CJ8
...
6
TERMINAL, SPARK PLUG ECH-15901103432
...
7
CAP, SPARK PLUG ECH-15901203433
...
8
GROMMET ECH-15611004920
...
9
GROMMET ECH-15611404920
...
10
COIL, IGNITION ECH-15012604920
...
11
SCREW 4x20 ECH-90024204020
...
12
STOPPER ECH-175053-04920
...
13
RING, SNAP 12 ECH-90070100012
...
14
BEARING, BALL 6201 ECH-90081206201
...
15
RING, SNAP 32 ECH-90070200032
...
16
DRUM, CLUTCH ECH-17501004920
...
17
BOSS, CLUTCH ECH-17501604920
...
18
SPRING, CLUTCH ECH-17501806530
...
19
SHOE, CLUTCH ECH-17501704631
...
20
PLATE, CLUTCH ECH-17501904920
...
21
FLYWHEEL ECH-15020004920
...
22
WASHER ECH-10013206530
...
25
SCREW 4x10 ECH-90024204010
...
26
CONTACT POINT SET ECH-15010104920
...
27
PAD, OIL ECH-15613403730
...
28
CONDENSER ECH-15012704920
...
29
GROMMET, LEAD ECH-15011404920
...
30
LEAD - GROUND ECH-15050506320
...
31
PAWL ASSY, STARTER ECH-17730504920
...
32
NUT 8x1.25 ECH-90050200008
...
33
GASKET, STARTER ECH-10061504921
...
xx
STARTER ASSY Consists of 34 thru 41 ECH-17720006321
...
34
SCREW 4x10 ECH-90024204010
...
35
WASHER 4.1x15.5x1T ECH-17721404630
...
36
REEL, ROPE ECH-17721504920
...
37
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
38
GUIDE, ROPE ECH-17722705330
...
39
GRIP, STARTER ECH-17722806530
...
40
SPRING, RECOIL ECH-17722006530
...
41
CASE, STARTER ECH-17720906320
...
42
LABEL - ECHO ECH-X502000320
