Echo GT-140B Grass Trimmer

Model: GT-140B

Save Part Not Listed?
product name

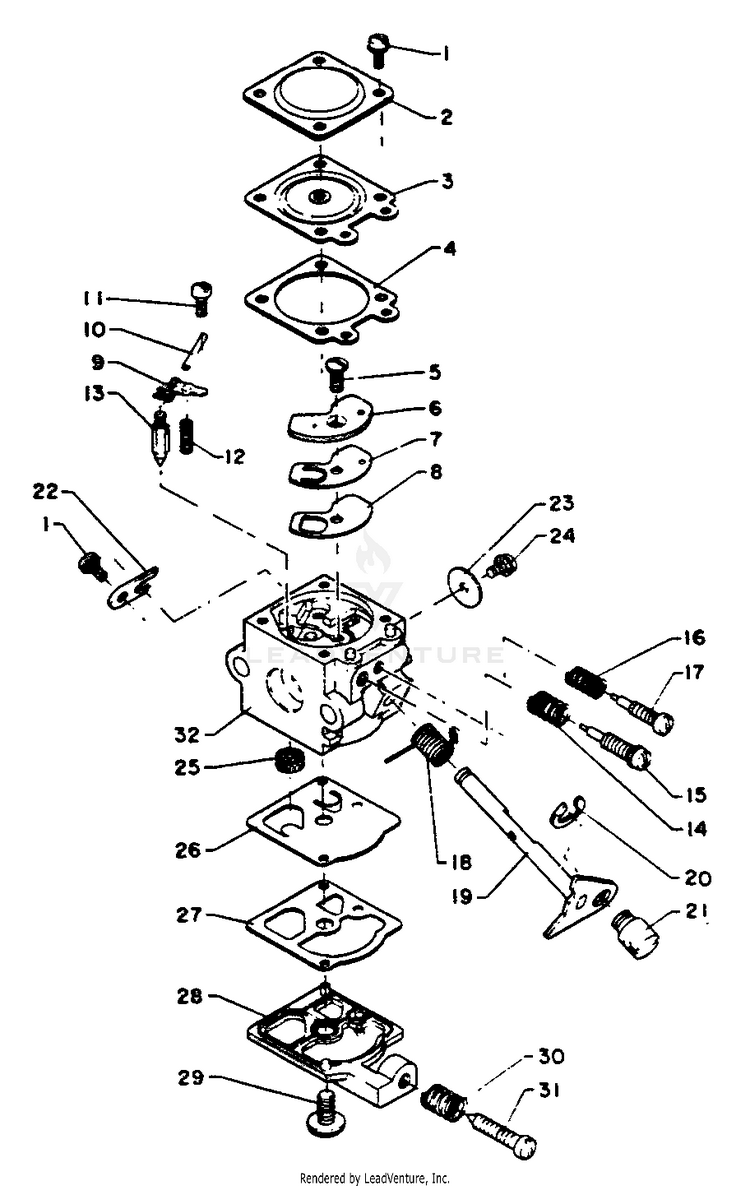

Carburetor

...
...
1
CARBURETOR - WA-80 Includes ITEMS 1-32 ECH-12300006320
...
1
SCREW ECH-12314403930
...
2
COVER, MET. DIA. ECH-P003006890
...
3
DIAPHRAGM, METERING ECH-12314103930
...
4
GASKET, METERING DIAPHRAGM ECH-P003006980
...
5
SCREW, CIRCUIT PLATE ECH-12316705230
...
6
PLATE, CIRCUIT ECH-12316603930
...
7
VALVE, CHECK ECH-12316503930
...
8
GASKET, CIRCUIT PLATE ECH-12316403930
...
9
LEVER, METERING ECH-12312338330
...
10
PIN ECH-P003006740
...
11
SCREW, METER. LEV. PIN ECH-P003007030
...
12
SPRING, METERING LEVER ECH-P003006990
...
13
VALVE, INLET NEEDLE ECH-12313703930
...
14
SPRING, NEEDLE ECH-12311903930
...
15
NEEDLE, HIGH SPEED ECH-12312006530
...
16
SPRING, NEEDLE ECH-12312103930
...
17
NEEDLE, IDLE ECH-12311806530
...
18
SPRING, THROTTLE RETURN ECH-12311309660
...
19
SHAFT, THROTTLE ECH-12311706530
...
20
RING, RETAINING ECH-12312710630
...
21
SWIVEL ECH-12317204320
...
22
CLIP, THROTTLE SHAFT ECH-12312703930
...
23
VALVE, THROTTLE ECH-12311606530
...
24
SCREW ECH-12311403930
...
25
SCREEN, INLET ECH-P003006710
...
26
DIAPHRAGM, FUEL PUMP ECH-12311203930
...
27
GASKET, FUEL PUMP ECH-12312503930
...
28
COVER, PUMP ECH-12312406320
...
29
SCREW, PUMP COVER ECH-P003006850
...
30
SPRING ECH-12313306320
...
31
SCREW, IDLE ADJUST ECH-12313406320
...
32
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---

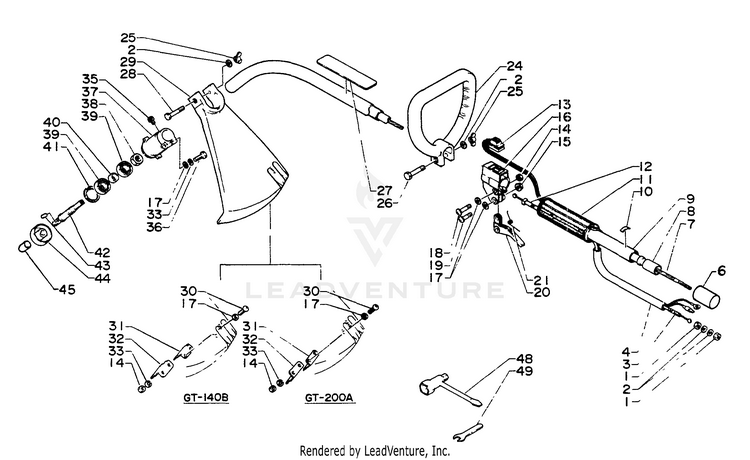

Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools

...
...
1
NUT M6 ECH-90050200006
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
3
CABLE, THROTTLE ECH-17800109630
...
4
PIPE ECH-17812724030
...
7
DRIVESHAFT - FLEXIBLE ECH-C506000030
...
8
BUSHING ECH-61021709630
...
9
MAIN PIPE ASSY ECH-61060944330
...
10
LABEL - ALIGNMENT ECH-89015204930
...
11
GRIP ECH-35111144530
...
12
GUIDE, CABLE ECH-17804805630
...
13
IGNITION SWITCH ASSY ECH-16340009630
...
14
NUT M5 ECH-90050000005
...
15
NUT, LOCK M5 ECH-90056000005
...
16
BRACKET, THROTTLE ECH-17802409630
...
17
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
18
SCREW 5x30 ECH-90022005030
...
19
SCREW ECH-17811005330
...
20
TRIGGER, THROTTLE ECH-C450000060
...
21
SPRING, THROTTLE ECH-17804306930
...
24
HANDLE ASSY Includes items 2, 25 and 26 ECH-35160009630
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
25
NUT, WING 6 ECH-90052500006
...
26
BOLT - 6x40 ECH-90010006040
...
27
LABEL - CAUTION ECH-89016026632
...
xx
SHIELD ASSY, DEBRIS Includes item 2, 14, 17, 25 and 28 thru 33 ECH-P021053910
...
xx
SHIELD ASSY, DEBRIS Includes item 2, 14, 17, 25 and 28 thru 33 ECH-P021053910
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
14
NUT M5 ECH-90050000005
...
17
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
25
NUT, WING 6 ECH-90052500006
...
28
BOLT - 6x50 ECH-90010006050
...
29
SHIELD ASSY, DEBRIS ECH-P021053910
...
30
SCREW 5x14 ECH-90022005014
...
31
KNIFE, TRIMMER LINE ECH-69901606320
...
32
GUARD ECH-69921209630
...
33
WASHER, SPRING 5 ECH-90060500005
...
xx
GEAR CASE ASSY Includes items 17, 33 and 35 thru 45 ECH-C056000012
...
17
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
33
WASHER, SPRING 5 ECH-90060500005
...
35
SCREW 4x10 ECH-90024204010
...
36
BOLT - 5x25 ECH-90015005025
...
37
GEAR CASE ASSY ECH-C056000012
...
38
NUT 12 L.H. ECH-90051300012
...
39
BEARING, BALL ECH-9404206001
...
40
SPACER ECH-61031506530
...
41
RING, SNAP 28 ECH-90070200028
...
42
SHAFT, GEAR ECH-61031009630
...
43
PIN ECH-90030530006
...
44
PLATE, ADAPTOR - UPPER ECH-61031309630
...
48
WRENCH ECH-89541009460
...
49
SPANNER ECH-89501526630
...
------------------
CAP ECH---
...
------------------
CAP ECH---

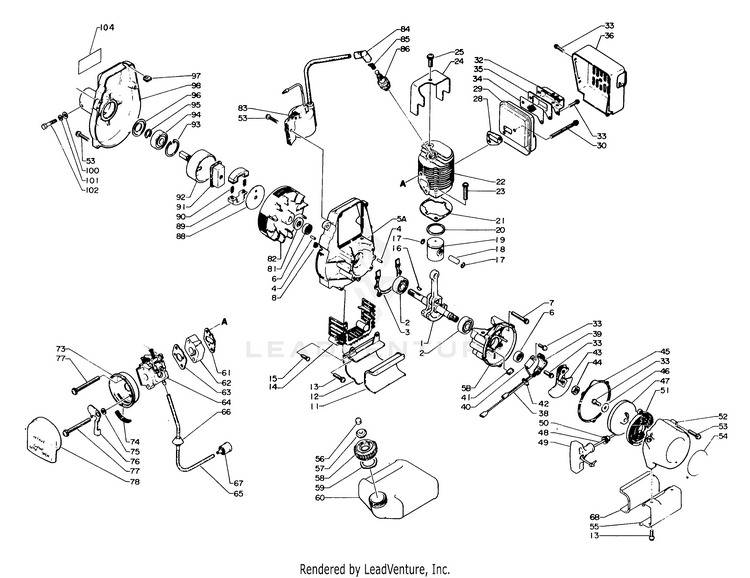

Engine, Crankcase, Ignition

...
...
1
CRANKSHAFT ECH-10010004921
...
2
BEARING, BALL 6200 ECH-90081036200
...
3
GASKET, CRANKCASE ECH-10024204920
...
5
CRANKCASE SET ECH-10020004921
...
5A
CRANKCASE SET See Ref No. 5, Crankcase set, P/N 10020004920 ECH-10020004921
...
5B
CRANKCASE SET See Ref No. 5, Crankcase set, P/N 10020004920 ECH-10020004921
...
4
PIN, LOCATING 4 ECH-V622000020
...
6
SEAL, OIL ECH-10021305930
...
7
SCREW 5x30 ECH-90024205030
...
8
GROMMET ECH-15611404920
...
11
CUSHION ECH-13192006320
...
12
BRACKET, FUEL TANK ECH-13191006321
...
13
SCREW 4x14 ECH-90024204014
...
14
SEAL, DUST ECH-10061606320
...
15
SCREW 4x14 ECH-90024504014
...
16
KEY ECH-10014200330
...
17
RING, SNAP ECH-10001504630
...
18
PIN, PISTON ECH-10001304920
...
19
PISTON ECH-10001007330
...
20
RING, PISTON ECH-10001105930
...
21
GASKET, CLY.BASE ECH-10101004921
...
22
CYLINDER ECH-10101104920
...
23
SCREW 6x22 ECH-90024206022
...
24
COVER, CYLINDER ECH-10151404920
...
25
SCREW 5x10 ECH-90024205010
...
xx
MUFFLER ASSY Includes items 28, 29 and 33 thru 36 ECH-14580321932
...
28
GASKET, MUFFLER ECH-14551021931
...
29
CASE, MUFFLER ECH-14580606320
...
32
COVER, MUFFLER ECH-14580921930
...
33
SCREW 4x10 ECH-90024204010
...
34
SCREEN, SPARK ARRESTER ECH-14586206321
...
35
COVER, MUFFLER ECH-14580921930
...
36
COVER, MUFFLER ECH-14562106320
...
30
SCREW 5x40 ECH-90024205040
...
33
SCREW 4x10 ECH-90024204010
...
38
LEAD - GROUND ECH-15050506320
...
39
CONTACT POINT SET ECH-15010104920
...
40
CONDENSER ECH-15012704920
...
41
PAD, OIL ECH-15613403730
...
42
GROMMET, LEAD ECH-15011404920
...
43
PAWL ASSY, STARTER ECH-17730504920
...
44
NUT 8x1.25 ECH-90050200008
...
45
GASKET, STARTER ECH-10061504921
...
xx
STARTER ASSY Includes items 33 and 46 thru 52 ECH-17720006321
...
33
SCREW 4x10 ECH-90024204010
...
46
WASHER 4.1x15.5x1T ECH-17721404630
...
47
REEL, ROPE ECH-17721504920
...
48
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
49
GRIP, STARTER ECH-17722806530
...
50
GUIDE, ROPE ECH-17722705330
...
51
SPRING, RECOIL ECH-17722006530
...
52
CASE, STARTER ECH-17720906320
...
53
SCREW 4x20 ECH-90024204020
...
54
PLATE, MODEL ECH-89015111231
...
55
BRACKET, FUEL TANK ECH-13191806320
...
xx
CAP ASSY Includes items 56 thru 59 ECH-13100406320
...
56
FILTER, CHECK VALVE ECH-13131505020
...
57
VENT ASSY ECH-13131406320
...
58
CAP ASSY ECH-13100406320
...
59
PACKING ECH-13101604920
...
60
TANK, FUEL ECH-13101006320
...
61
GASKET ECH-13001004922
...
62
INSULATOR ECH-13001704921
...
63
GASKET ECH-13001604922
...
64
CARBURETOR - WA-80 ECH-12300006320
...
65
PIPE, FUEL RePower BULK OPTION: 90014 ECH-13201007531
...
66
GROMMET ECH-13211504920
...
67
FILTER, FUEL ECH-A369000480
...
68
CUSHION ECH-13192406320
...
73
CASE, AIR FILTER Includes item 74 ECH-13030104920
...
74
GROMMET ECH-17881004920
...
75
WASHER 5.2x8x0.8T ECH-17851600830
...
76
SHUTTER, CHOKE ECH-17851504920
...
77
SCREW 5x57 ECH-90024205057
...
78
FILTER, AIR, FELT ECH-13031003060
...
81
WASHER ECH-10013206530
...
82
FLYWHEEL ECH-15020004920
...
83
COIL, IGNITION ECH-15012604920
...
84
CAP, SPARK PLUG ECH-15901201620
...
85
TERMINAL, SPARK PLUG ECH-15901103432
...
86
SPARK PLUG - CJ8 ECH-CJ8
...
88
PLATE, CLUTCH ECH-17501904920
...
89
SHOE, CLUTCH ECH-17501704631
...
90
SPRING, CLUTCH ECH-17501806530
...
91
BOSS, CLUTCH ECH-17501604920
...
92
DRUM, CLUTCH ECH-17501004920
...
93
RING, SNAP 32 ECH-90070200032
...
94
BEARING, BALL 6201 ECH-90081206201
...
95
RING, SNAP 12 ECH-90070100012
...
96
STOPPER ECH-175053-04920
...
97
GROMMET ECH-15611004920
...
98
COVER, FAN ECH-10151106320
...
100
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
101
WASHER, SPRING 5 ECH-90060500005
...
102
BOLT - 5x20 ECH-90015105020
...
104
DECAL, MODEL ECH-89011509630
