Echo GT-1000 Grass Trimmer

Model: GT-1000

Back To Assemblies

Save Part Not Listed?
product name

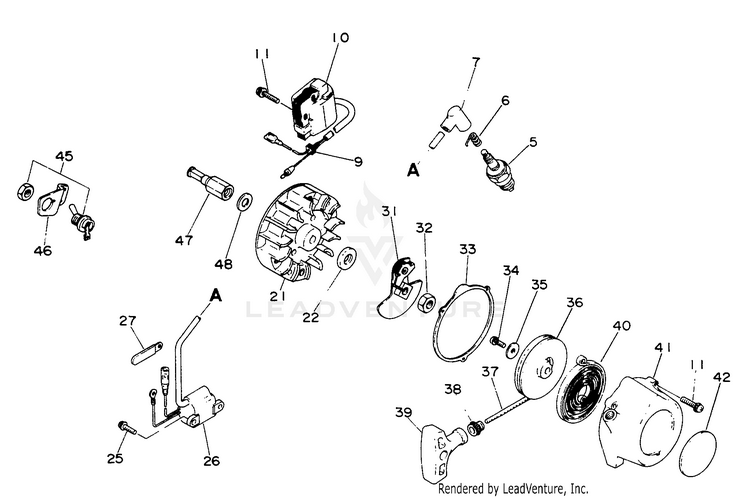

Clutch, Ignition, Starter

...
...
5
SPARK PLUG - CJ8 ECH-CJ8
...
6
TERMINAL, SPARK PLUG ECH-15901103432
...
7
CAP, SPARK PLUG ECH-15901203433
...
9
GROMMET ECH-15611402310
...
10
COIL, IGNITION ECH-15060126630
...
11
SCREW 4x20 ECH-90024204020
...
21
FLYWHEEL ECH-15080026630
...
22
WASHER ECH-10013206530
...
25
SCREW 4x14 ECH-90024204014
...
26
COIL, IGNITION ECH-15062626630
...
27
CLIP ECH-15911323630
...
31
PAWL ASSY, STARTER ECH-17730504920
...
32
NUT 8x1.25 ECH-90050200008
...
33
GASKET, STARTER ECH-10061504921
...
xx
STARTER ASSY Consists of items 36-41 ECH-17720007421
...
34
SCREW 4x10 ECH-90024204010
...
35
WASHER 4.1x15.5x1T ECH-17721404630
...
36
REEL, ROPE ECH-17721504920
...
37
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
38
GUIDE, ROPE ECH-17722705330
...
39
GRIP, STARTER ECH-17722806530
...
40
SPRING, RECOIL ECH-17722006530
...
41
CASE, STARTER ECH-17720907420
...
42
LABEL - ECHO ECH-89011226730
...
45
SWITCH, IGNITION ECH-16340006520
...
46
BRACKET, SWITCH ECH-16381006520
...
47
DRIVESHAFT ECH-61001229130
...
48
WASHER ECH-90060300008
