Echo F259 S/N: 25900001 25999999 Trimmer/Bruhcutter

Model: F259 S/N: 25900001 25999999

Save Part Not Listed?
product name

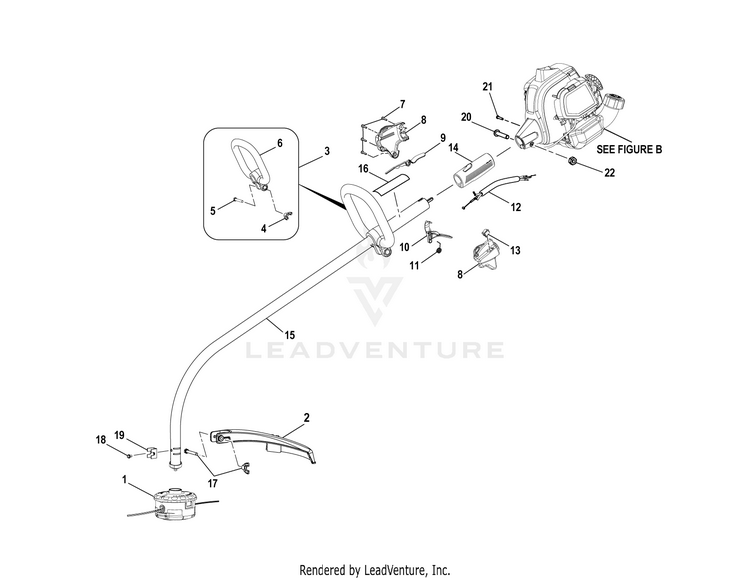

FIGURE A

...
...
1
Stringhead Assembly ECH-78890-32000
...
2
DEFLECTOR, GRASS ECH-YH479001110
...
3
ASSY., FRONT HANDLE ECH-YH470000470
...
4
NUT, WING ECH-YH450000270
...
5
BOLT ECH-YH435000440
...
6
HANDLE, FRONT ECH-YH466000250
...
7
SCREW ECH-YH415000350
...
8
ASSY., CONTROL HANDLE ECH-YH470000430
...
9
LOCK, TRIGGER ECH-YH470000630
...
10
TRIGGER ECH-YH470000640
...
11
SPRING, TRIGGER ECH-YH476000150
...
12
ASSY., THROTTLE CABLE AND WIRE ECH-YH601000090
...
13
SWITCH, STOP ECH-YH321000130
...
14
GRIP, HANDLE ECH-YH466000270
...
15
ASSY., BOOM ECH-YH484000010
...
16
LABEL, WARNING ECH-YH653000530
...
17
KIT, FASTENER ECH-YH452000230
...
18
SCREW ECH-YH415000590
...
19
CLAMP ECH-YH452000260
...
20
SCREW ECH-YH415000690
...
21
SCREW ECH-YH415000630
...
22
NUT, HEX ECH-YH450000350
...
xx
Operator’s Manual ECH-99922205362

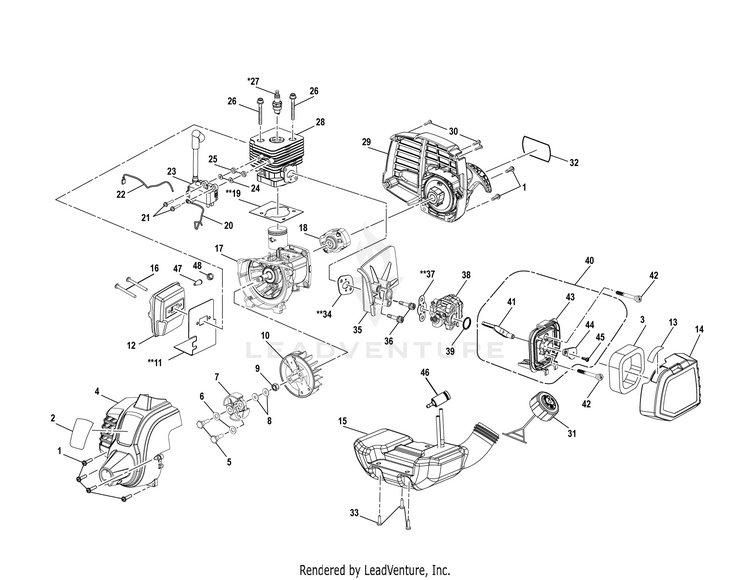

FIGURE B

...
...
1
SCREW W/WASHER ECH-YH411000010
...
2
LABEL, LOGO ECH-YH653000630
...
3
FILTER, AIR ECH-YH465000160
...
4
ASSY., FRONT HOUSING ECH-YH479001040
...
5
BOLT, CLUTCH SHOULDER ECH-YH480000060
...
6
WASHER, CURVED ECH-YH451000260
...
7
ASSY., CLUTCH ECH-YH480000040
...
8
WASHER ECH-YH451000240
...
9
NUT, HEX FLANGE ECH-YH450000010
...
10
FLYWHEEL ECH-YH461000180
...
11
GASKET, MUFFLER ECH-YH468000980
...
12
ASSY., MUFFLER ECH-YH460000130
...
13
LABEL, CHOKE POSITION ECH-YH653000550
...
14
COVER, AIRBOX ECH-YH479001050
...
15
ASSY., FUEL TANK W/CAP ECH-YH455000110
...
16
SCREW ECH-YH415000310
...
17
ASSY., CRANKCASE ECH-YH458000490
...
18
CUP, STARTER ECH-YH463000130
...
19
GASKET ECH-YH468001040
...
20
WIRE, LEAD (RED) ECH-YH301000070
...
21
SCREW W/WASHER ECH-YH411000030
...
22
WIRE, LEAD (BLACK) ECH-YH301000080
...
23
MODULE, IGNITION ECH-YH461000170
...
24
WASHER ECH-YH451000280
...
25
SPACER ECH-YH475000030
...
26
SCREW ECH-YH415000250
...
27
PLUG, SPARK (LTRTC) ECH-YH461000000
...
28
CYLINDER ECH-YH458000740
...
29
ASSY., STARTER ECH-YH463000120
...
30
SCREW ECH-YH415000350
...
31
ASSY., FUEL CAP ECH-YH468000840
...
32
LABEL, LOGO (REAR) ECH-YH653000640
...
33
SCREW, SHOULDER ECH-YH415000650
...
34
GASKET, INSULATOR ECH-YH468001120
...
35
INSULATOR, HEAT DAM ECH-YH468000870
...
36
SCREW ECH-YH415000670
...
37
GASKET ECH-YH468001100
...
38
ASSY., CARBURETOR ECH-YH459000150
...
39
O-RING, CARBURETOR ECH-YH468000910
...
40
ASSY., AIRBOX BASE ECH-YH479001100
...
41
LEVER, CHOKE ECH-YH470000670
...
42
SCREW ECH-YH415000340
...
43
BASE, AIRBOX ECH-YH479001310
...
44
PLATE, CHOKE ECH-YH479001300
...
45
SCREW ECH-YH415000290
...
46
FILTER FUEL ECH-YH465000140
...
47
KIT, HONDA WT SPARK ARRESTOR ECH-YH460000160
...
48
KIT, BRIGGS 208CC SPRK ARRESTR ECH-YH460000170
...
xx
KIT, GASKET & DIAPHRAGM ECH-YH459000250
...
xx
KIT, MIXTURE SCREW ECH-YH459000270
...
xx
KIT, IDLE ADJUSTMENT SCREW ECH-YH459000290
...
xx
KIT, PISTON ECH-YH458000610
...
xx
KIT, CYLINDER W/GASKET ECH-YH458000630
...
xx
KIT, CRANKSHAFT SEALS ECH-YH458000650
