Echo ES-2400 Type 1E Shred 'N Vac

Model: ES-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

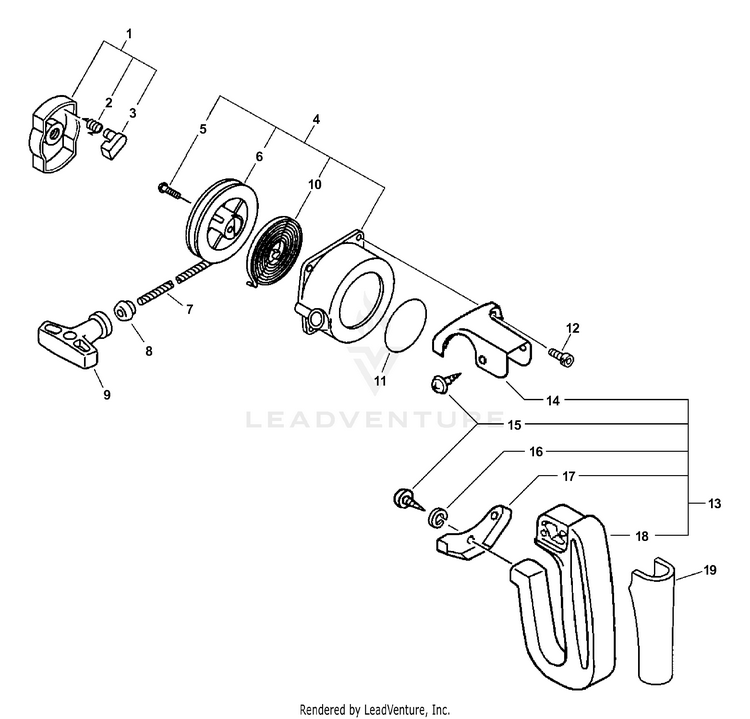

Starter, Side Handle

...
...
1
PAWL ASSY, STARTER INCLUDES ITEMS 2-3 ECH-17720212220
...
2
SPRING, RETURN ECH-17723412220
...
3
PAWL, STARTER - BLACK ECH-17721844330
...
4
STARTER ASSY, RECOIL INCLUDES ITEMS 5-10 ECH-17720042033
...
5
SCREW ECH-17723644330
...
6
REEL, ROPE ECH-17721544430
...
7
ROPE, STARTER 3.0x1000 RePower BULK OPTION: 99944440000 ECH-17722610120
...
8
GUIDE, ROPE ECH-17722742030
...
9
GRIP, STARTER ECH-17722806530
...
10
SPRING, RECOIL ECH-P022019680
...
11
BOLT 4x16 ECH-V202000830
...
12
LABEL - STARTER - ECHO ECH-X502000330
...
13
HANDLE ASSY, SIDE Includes ITEMS 14-18 ECH-35100005060
...
14
SCREW 5x16 ECH-90025305016
...
15
BRACKET, UPPER HANDLE ECH-35101105060
...
16
WASHER, SPRING 5 ECH-90060500005
...
17
BRACKET, LOWER HANDLE ECH-35102805060
...
18
HANDLE ECH-35101005060
...
19
GRIP, HANDLE ECH-35121354330
