Echo ES-2400 Type 1E Shred 'N Vac

Model: ES-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

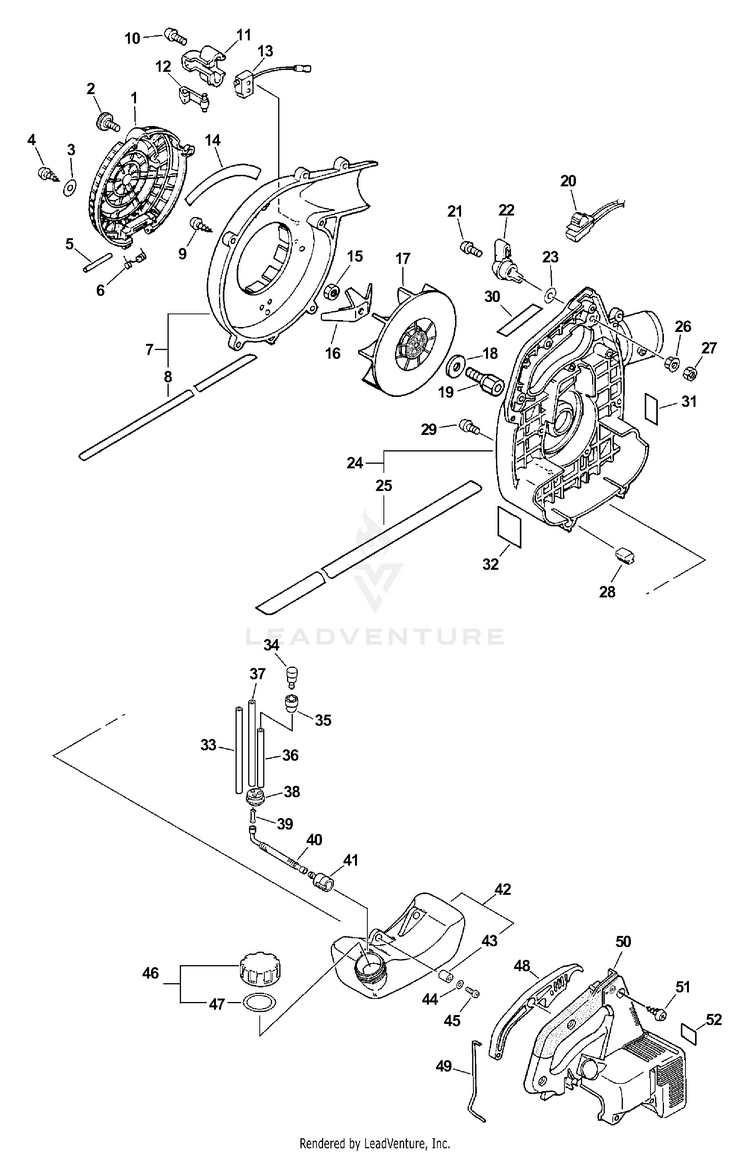

Fan Case, Engine Cover, Fuel System

...
...
1
COVER, INTAKE ECH-20012420661
...
2
THUMBSCREW ECH-V299000650
...
3
WASHER 5.5x12x0.8 ECH-90060300005
...
4
SCREW 5x14 ECH-90025305014
...
5
PIN, INTAKE COVER ECH-20015005060
...
6
SPRING, COIL ECH-20015205060
...
7
COVER, FAN - LEFT - GRAY Includes ITEM 8 ECH-P021009410
...
8
CUSHION ECH-22012020561
...
9
SCREW, TAPPING 5x20 ECH-90025305020
...
10
SCREW 4x22 ECH-90025604022
...
11
BRACKET, SWITCH ECH-16381020660
...
12
LEVER, ACTUATOR ECH-A446000000
...
13
SWITCH, INTERLOCK ECH-16340020660
...
14
LABEL - MODEL ECH-89011509560
...
15
NUT M8 ECH-90050000008
...
16
CUTTER, SHREDDER ECH-20018008761
...
17
FAN ECH-20001006363
...
18
WASHER ECH-10013205660
...
19
HUB, FAN ECH-20001105661
...
20
SWITCH, ON-OFF ECH-16340120661
...
21
SCREW 5x25 ECH-90023805025
...
22
CONTROL, THROTTLE ECH-17805420560
...
23
WASHER 5.5x12x0.8 ECH-90060300005
...
24
COVER ASSY, FAN - RIGHT - GRAY Includes ITEM 25 ECH-P021003702
...
25
CUSHION ECH-22012020661
...
26
NUT, FLANGE M5 ECH-90051600005
...
27
NUT M5 ECH-90050200005
...
28
CUSHION ECH-35133520560
...
29
SCREW 4x22 ECH-90016204022
...
30
LABEL - CAUTION ECH-89016008761
...
31
LABEL - CAUTION - ISO ECH-89016009461
...
32
LABEL - CAUTION - ISO ECH-89016009461
...
33
PIPE, RETURN, FUEL, 3X6X90 RePower BULK OPTION: 90017 ECH-V471006160
...
34
VENT ASSY ECH-A356000031
...
35
HOLDER, VENT ECH-13132840630
...
36
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
37
PIPE, FUEL 3x5x90 BLACK RePower BULK OPTION: 90014 ECH-V471001211
...
38
GROMMET, FUEL 5 ECH-13211546730
...
39
CONNECTOR, PIPE ECH-13201103360
...
40
PIPE, FUEL 3x7x100 FLEXIBLE ECH-13201212362
...
41
FILTER, FUEL ECH-A369000480
...
42
TANK ASSY, FUEL ECH-A350002541
...
43
SPACER 6.2x7.8x6 ECH-13104528230
...
44
WASHER 5.5x12x0.8 ECH-90060300005
...
45
SCREW 5x16 ECH-90023805016
...
46
FUEL CAP ASSY Includes ITEM 47 ECH-P200000830
...
47
GASKET, FUEL CAP ECH-V107000230
...
48
CONTROL, THROTTLE ECH-17801020560
...
49
ROD, THROTTLE ECH-17801120561
...
50
SCREW, TAPPING 5x20 ECH-90025305020
...
51
LABEL - CAUTION - HOT ECH-X505002310
...
52
COVER, ENGINE ECH-10401220561
