Echo ES-2400 Type 1E Shred 'N Vac

Model: ES-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

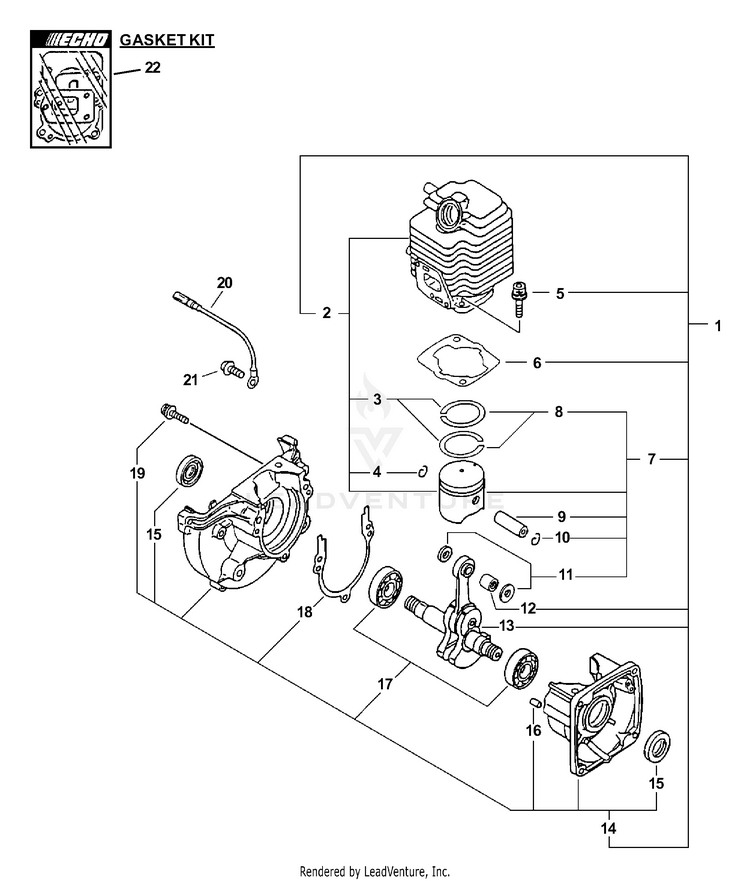

Engine, Short Block, Cylinder

...
...
1
SHORT BLOCK ES-2400 Includes ITEM 2-19; OPTIONAL ENGINE REPOWER ECH-SB1027
...
2
CYLINDER/PISTON KIT SRM-2400 Includes ITEMS 3-4 ECH-P021035810
...
3
RING, PISTON ECH-10001109560
...
4
RING, SNAP Included In GASKET KIT ECH-10001504630
...
5
BOLT 5x22 ECH-90016205022
...
6
GASKET, CYLINDER ECH-10101044332
...
7
PISTON KIT INCLUDES ITEMS 8-11 ECH-10000052130
...
8
RING, PISTON ECH-10001109560
...
9
PIN, PISTON 8 ECH-10001311520
...
10
RING, SNAP ECH-10001504630
...
11
WASHER, THRUST ECH-10001411520
...
12
BEARING, NEEDLE 8 ECH-V553000010
...
13
CRANKSHAFT ASSY ECH---
...
14
CRANKCASE KIT Includes ITEMS 15-19 ECH---
...
15
SEAL, OIL 12 ECH-10021242031
...
16
PIN, LOCATING 4 ECH-V622000020
...
17
BEARING, BALL 6201 ECH-9403536201
...
18
GASKET, CRANKCASE ECH---
...
19
BOLT 5x28 ECH-90016205028
...
20
LEAD - GROUND ECH-16201020660
...
21
SCREW 4x22 ECH-90016204022
...
22
GASKET KIT ECH-88900020560
