Echo ES-2400 Type 1E Shred 'N Vac

Model: ES-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

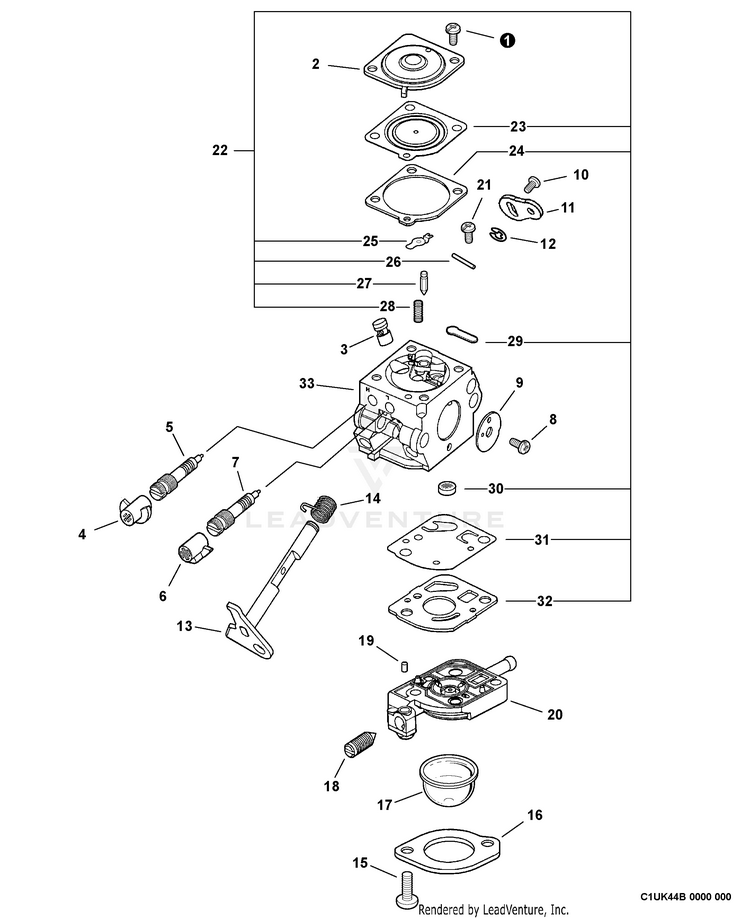

Carburetor -- C1U-K44B S/N: 519979 - 999999, CANADA - 029299 - 999999

...
...
xx
CARBURETOR C1U-K44B ECH-12520009565
...
1
SCREW ECH-12534452130
...
2
COVER, DIAPHRAGM ECH-12534207360
...
3
NOZZLE, CHECK VALVE ECH-12537607360
...
4
CAP, LIMITER ECH-12532908560
...
5
NEEDLE, HIGH SPEED ECH-12532020560
...
6
CAP, LIMITER - WHITE ECH-12532909860
...
7
NEEDLE, LOW SPEED ECH-P005000450
...
8
SCREW ECH-12531413930
...
9
VALVE, THROTTLE ECH-12531620560
...
10
SCREW ECH-12534813930
...
11
LEVER, THROTTLE ECH-12535020560
...
12
SHAFT ASSY, THROTTLE ECH-12531713931
...
13
SHAFT, THROTTLE ECH-12531706860
...
14
SPRING, THROTTLE RETURN ECH-12531308560
...
15
SCREW ECH-12531011610
...
16
RETAINER ECH-12536311610
...
17
BULB, PURGE ECH-P005003120
...
18
SCREW ECH-12533406860
...
19
PIECE, FRICTION ECH-12537813930
...
20
BODY ASSY, PURGE ECH-12532411610
...
21
SCREW ECH-12533942030
...
22
REBUILD KIT INCLUDES ITEMS 23-32 ECH-12530020560
...
23
DIAPHRAGM, METERING ECH---
...
24
GASKET, METERING ECH---
...
25
LEVER, METERING ECH---
...
26
PIN, METERING LEVER ECH---
...
27
VALVE, INLET NEEDLE ECH---
...
28
SPRING, METERING LEVER ECH---
...
29
PLUG, WELCH ECH---
...
30
STRAINER ECH---
...
31
DIAPHRAGM, PUMP ECH---
...
32
GASKET, PUMP ECH---
...
33
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
