Echo ES-2400 Type 1 Shred 'N Vac

Model: ES-2400 Type 1

Back To Assemblies

Save Part Not Listed?
product name

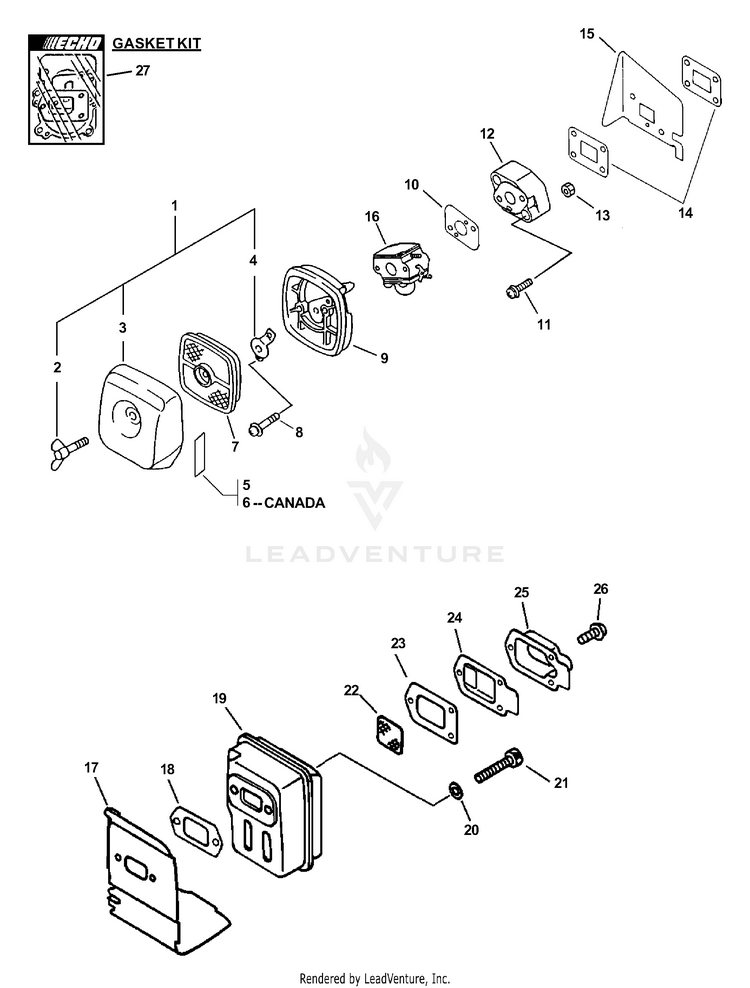

Intake, Exhaust

...
...
1
COVER, AIR FILTER INCLUDES ITEMS 2-4 ECH-13030206561
...
2
BOLT, WING 5x20 ECH-21041752730
...
3
COVER, AIR FILTER - GRAY ECH-13031306563
...
4
PLATE, PREVENT ECH-12901152730
...
5
LABEL - CHOKE ECH-89012106360
...
6
LABEL - CHOKE CANADA MODELS ECH-89012105360
...
7
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
8
SCREW 5x65 ECH-90024205065
...
9
CASE, AIR FILTER - GRAY ECH-P021002921
...
10
GASKET, INTAKE Included In GASKET KIT ECH-13001020560
...
11
SCREW 5x22 ECH-90023805022
...
12
INSULATOR, INTAKE ECH-13001705062
...
13
NUT M5 ECH-90050000005
...
14
GASKET, INTAKE Included In GASKET KIT ECH-13001009561
...
15
HEAT SHIELD, INTAKE ECH-10151420560
...
16
CARBURETOR See Carburetor Diagram For Details ECH---
...
17
COVER, MUFFLER ECH-14587105760
...
18
GASKET, EXHAUST Included In GASKET KIT ECH-V104000160
...
19
MUFFLER ECH-14580642030
...
20
WASHER, SPRING 5 ECH-90060500005
...
21
BOLT 5x55 ECH-90010505055
...
22
SCREEN, SPARK ARRESTER ECH-14586240630
...
23
GASKET, EXHAUST Included In GASKET KIT ECH-14586642031
...
24
GUIDE, EXHAUST ECH-14587642030
...
25
GUIDE, EXHAUST ECH-14587605061
...
26
SCREW 4x10 ECH-90024204010
...
27
GASKET KIT ECH-88900020560
