Echo ES-2100 Type 1E Shred 'N Vac

Model: ES-2100 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

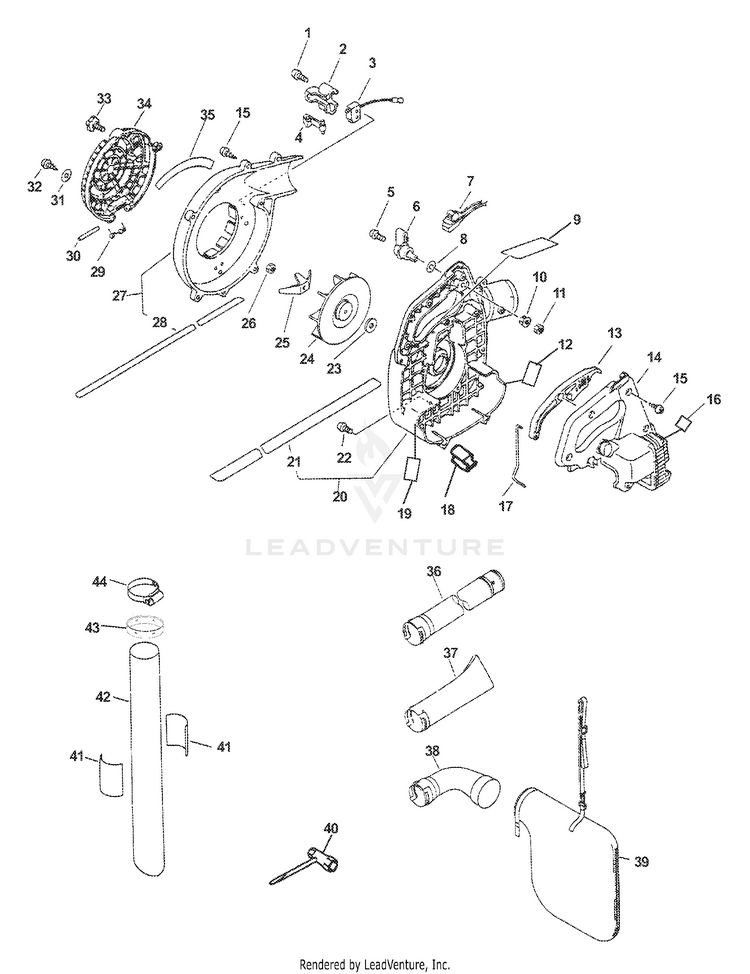

Fan, Fan Cases, Engine Cover, Tubes, Tool

...
...
1
SCREW 4x22 ECH-90025604022
...
2
BRACKET, SWITCH ECH-16381020660
...
3
SWITCH, INTERLOCK ECH-16340020660
...
4
LEVER, ACTUATOR ECH-A446000000
...
5
SCREW 5x25 ECH-90023805025
...
6
CONTROL, THROTTLE ECH-17805420560
...
7
SWITCH, ON-OFF ECH-16340120661
...
8
WASHER 5.5x12x0.8 ECH-90060300005
...
9
LABEL - CAUTION ECH-89016008761
...
10
NUT, FLANGE M5 ECH-90051600005
...
11
NUT M5 ECH-90050200005
...
12
LABEL - CAUTION - ISO ECH-89016009461
...
13
CONTROL, THROTTLE ECH-17801020560
...
14
COVER, ENGINE ECH-10401220561
...
15
SCREW, TAPPING 5x20 ECH-90025305020
...
16
LABEL - CAUTION - HOT ECH-X505002310
...
17
ROD, THROTTLE ECH-17801120561
...
18
CUSHION ECH-35133520560
...
19
LABEL - CAUTION - ISO ECH-89016009461
...
20
COVER ASSY, FAN - RIGHT - GRAY Includes ITEM 21 ECH-P021003702
...
21
CUSHION ECH-22012020661
...
22
SCREW 4x22 ECH-90016204022
...
23
WASHER ECH-10013205660
...
24
FAN ECH-20001006363
...
25
CUTTER, SHREDDER ECH-20018008761
...
26
NUT M8 ECH-90050000008
...
27
COVER, FAN - LEFT - GRAY Includes ITEM 28 ECH-P021009410
...
28
CUSHION ECH-22012020561
...
29
SPRING, COIL ECH-20015205060
...
30
PIN, INTAKE COVER ECH-20015005060
...
31
WASHER 5.5x12x0.8 ECH-90060300005
...
32
SCREW 5x14 ECH-90025305014
...
33
THUMBSCREW ECH-V299000650
...
34
COVER, INTAKE ECH-20012420661
...
35
LABEL - MODEL ECH-89011520660
...
36
TUBE, BLOWER - STRAIGHT ECH-21001505060
...
37
TUBE, BLOWER - NOZZLE ECH-21001420561
...
38
ELBOW ECH-21501205060
...
39
BAG, DUST ECH-88081409460
...
40
T-WRENCH 13x19x180 ECH-89541006961
...
41
LABEL - SHRED ‘N’ VAC ECH-89013508760
...
42
COVER, FAN - LEFT - GRAY ECH-P021009410
...
43
SLEEVE ECH-38515509660
...
44
CLAMP ECH-21041305060
