Echo ES-2100 Type 1E Shred 'N Vac

Model: ES-2100 Type 1E

Save Part Not Listed?

Popular Parts

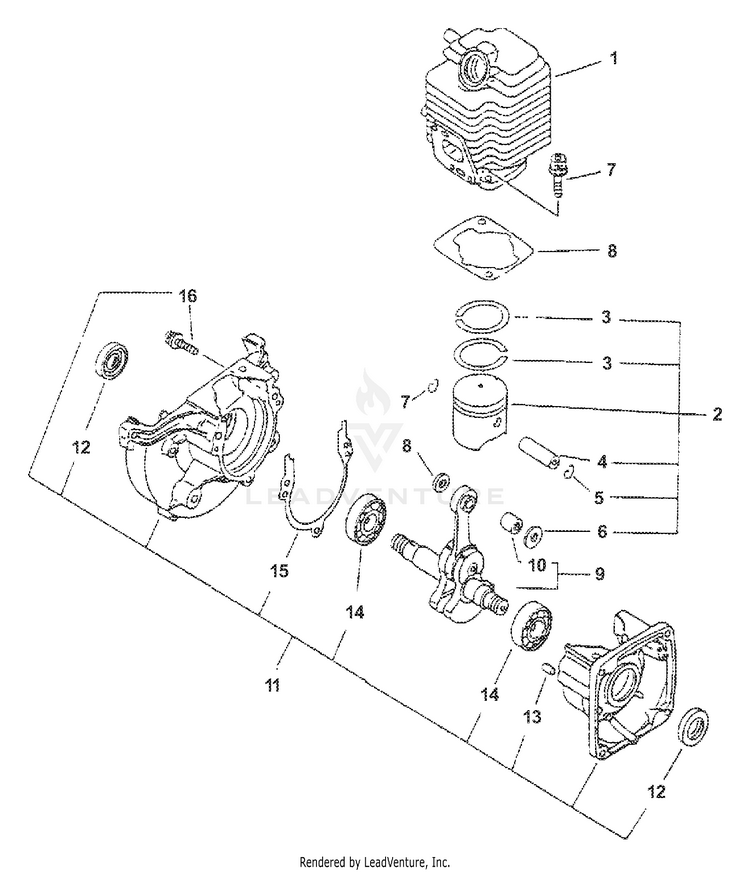

SHORT BLOCK ES-2100;PB-2100 ECH-SB1026

CYLINDER TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553 ECH-10101106562

KIT, PISTON TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553; INCLUDES ITEMS 3-6 ECH-P100013150

RING, PISTON TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553 ECH-10001105330

CYLINDER (SRM-22GES) TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP ECH-A130002300

PISTON KIT TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP; INCLUDES ITEMS 3-6 ECH-P021001102

RING, PISTON TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP ECH-A101000000

PIN, PISTON 8 ECH-10001311520

RING, SNAP ECH-10001504630

WASHER, THRUST ECH-10001411520

BOLT 5x22 ECH-90016205022

GASKET, CYLINDER INCLUDED IN KIT 88900020560 ECH-10101044332

CRANKSHAFT ASSY INCLUDES ITEM 10 (USE SB1026) ECH---

BEARING, NEEDLE 8 ECH-V553000010

CRANKCASE KIT INCLUDES ITEMS 12-16 (USE SB1026) ECH---

SEAL, OIL 12 ECH-10021242031

PIN, LOCATING 4 ECH-V622000020

BEARING, BALL 6201 ECH-9403536201

GASKET, CRANKCASE INCLUDED IN KIT 88900020560 ECH---

BOLT 5x28 ECH-90016205028

GASKET KIT INCLUDES THE FOLLOWING ECH-88900020560

GASKET, CYLINDER ECH-10101044332

GASKET, CRANKCASE ECH---

GASKET, INTAKE ECH-13001009561

GASKET, INTAKE ECH-13001020560

GASKET, EXHAUST ECH-V104000160

GASKET, EXHAUST ECH-14586642031

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
