Echo ES-2100 Type 1E Shred 'N Vac

Model: ES-2100 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

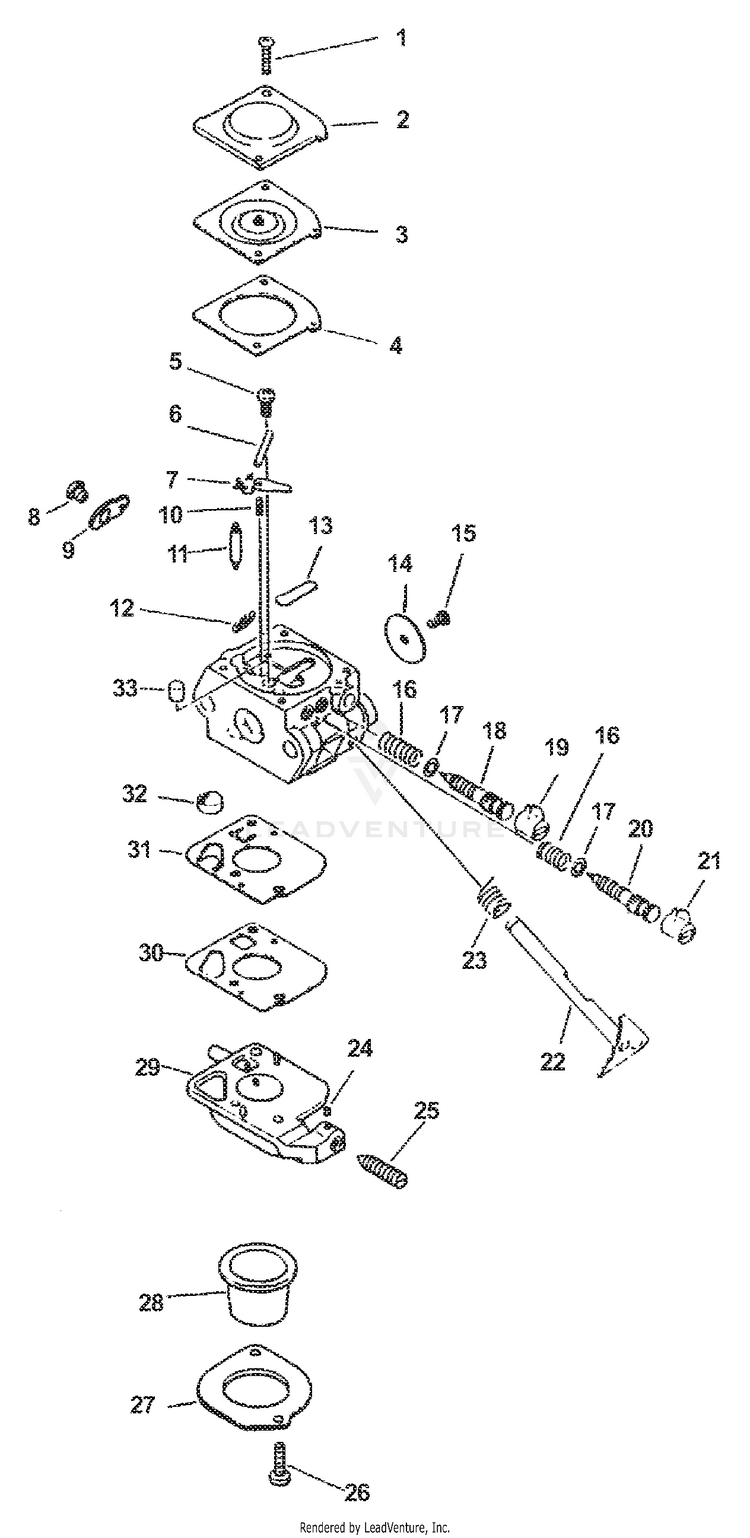

Carburetor

...
...
xx
CARBURETOR C1U-K43B INCLUDES THE FOLLOWING ECH-12520020665
...
1
SCREW ECH-12534452130
...
2
COVER, DIAPHRAGM ECH-12534207360
...
3
DIAPHRAGM USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560 ECH---
...
4
GASKET, DIAPHRAGM USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560 ECH---
...
5
SCREW ECH-12533942030
...
6
PIN, METERING LEVER USE REPAIR KIT P/N 12530020560 ECH---
...
7
LEVER, METERING USE REPAIR KIT P/N 12530020560 ECH---
...
8
SCREW ECH-12534813930
...
9
LEVER, THROTTLE ECH-12535020560
...
10
SPRING, METERING LEVER USE REPAIR KIT P/N 12530020560 ECH---
...
11
VALVE, INLET NEEDLE USE REPAIR KIT P/N 12530020560 ECH---
...
12
CLIP ECH-125327-13930
...
13
PLUG, WELCH USE REPAIR KIT P/N 12530020560 ECH---
...
14
VALVE, THROTTLE ECH-12531620560
...
15
SCREW 3x4.5 ECH-12531451230
...
16
SPRING ECH-12331942030
...
17
WASHER ECH-12535307760
...
18
NEEDLE, LOW SPEED ECH-12531820560
...
19
CAP, LIMITER - WHITE ECH-12532909860
...
20
NEEDLE, HIGH SPEED ECH-12532020560
...
21
CAP, LIMITER ECH-12532908560
...
22
SHAFT, THROTTLE ECH-12531706860
...
23
SPRING, THROTTLE RETURN ECH-12531308560
...
24
PIECE, FRICTION ECH-12537813930
...
25
SCREW ECH-12533406860
...
26
SCREW ECH-12531011610
...
27
RETAINER ECH-12536311610
...
28
BULB, PURGE ECH-P005003120
...
29
BODY ASSY, PURGE ECH-12532411610
...
30
GASKET, PUMP USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560 ECH---
...
31
DIAPHRAGM, PUMP USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560 ECH---
...
32
STRAINER USE REPAIR KIT P/N 12530020560 ECH---
...
33
NOZZLE, CHECK VALVE ECH-12537620660
...
xx
REBUILD KIT ECH-12530020560
...
xx
GASKET / DIAPHRAGM KIT ECH-12530320560
