Echo ES-2100 Type 1 Shred 'N Vac

Model: ES-2100 Type 1

Back To Assemblies

Save Part Not Listed?
product name

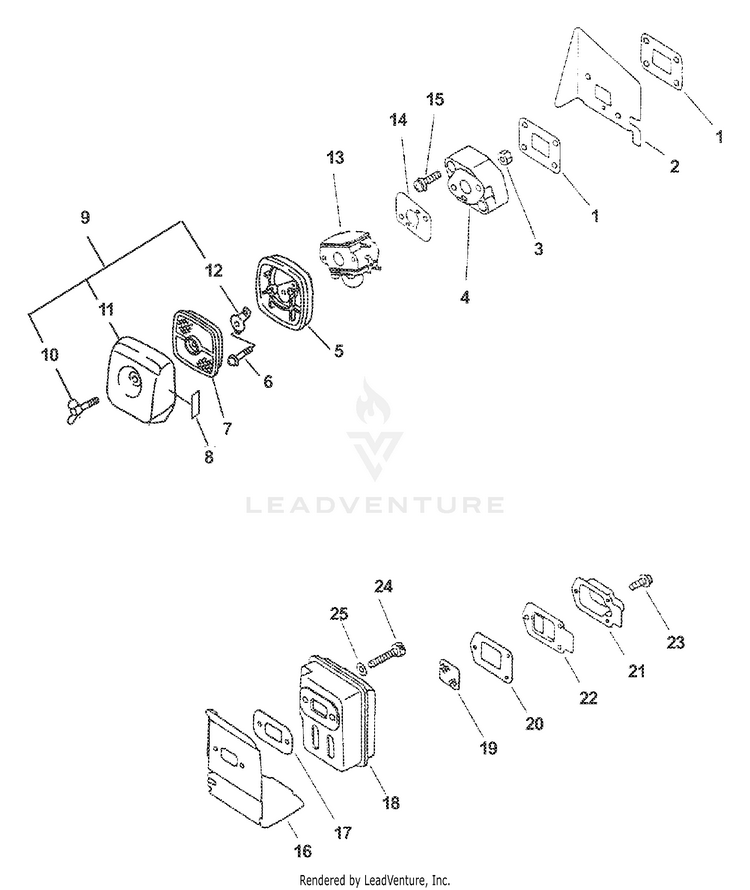

Intake, Air Cleaner, Exhaust

...
...
1
GASKET, INTAKE INCLUDED IN KIT 88900020560 ECH-13001009561
...
2
HEAT SHIELD, INTAKE ECH-10151420560
...
3
NUT M5 ECH-90050000005
...
4
INSULATOR, INTAKE ECH-13001705062
...
5
CASE, AIR FILTER - GRAY ECH-P021002921
...
6
SCREW 5x65 ECH-90024205065
...
7
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
8
LABEL - CHOKE ECH-89012106360
...
8
LABEL - CHOKE CANADA MODELS ECH-89012105360
...
9
COVER, AIR FILTER Includes ITEMS 10-12 ECH-13030206561
...
10
BOLT, WING 5x20 ECH-21041752730
...
11
COVER, AIR FILTER - GRAY ECH-13031306563
...
12
PLATE, PREVENT ECH-12901152730
...
13
CARBURETOR C1U-K43B ECH-12520020665
...
14
GASKET, INTAKE INCLUDED IN KIT 88900020560 ECH-13001020560
...
15
SCREW 5x22 ECH-90023805022
...
16
COVER, MUFFLER ECH-14587105760
...
17
GASKET, EXHAUST INCLUDED IN KIT 88900020560 ECH-V104000160
...
18
MUFFLER ECH-14580642030
...
19
SCREEN, SPARK ARRESTER ECH-14586240630
...
20
GASKET, EXHAUST TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553; INCLUDED IN KIT 88900020560 ECH-14586642031
...
21
GUIDE, EXHAUST TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553 ECH-14587420560
...
20
GASKET, EXHAUST TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP; INCLUDED IN KIT 88900020560 ECH-V104000003
...
21
GUIDE, EXHAUST - INNER TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP ECH-A313000020
...
22
GUIDE, EXHAUST ECH-14587642030
...
23
SCREW 4x10 ECH-90024204010
...
24
BOLT 5x55 ECH-90010505055
...
25
WASHER 5.5x12x0.8 ECH-90060300005
...
xx
GASKET KIT ECH-88900020560
