Echo EG-5500E Electric Generator

Model: EG-5500E

Save
 Part Not Listed?Part Not Listed?
product name

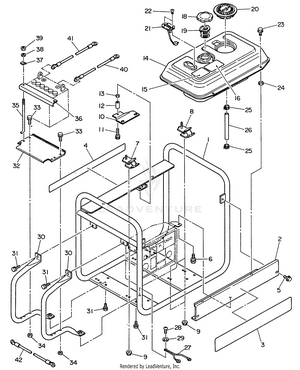

Battery, Fuel System, Frame

...
...
1
PIPE FRAME, COMPL. ECH-103903100101
...
2
SIDE PLATE, COMPL. ECH-103903110101
...
3
LABEL - MODEL EG-5500E ECH-103909100103
...
4
LABEL - MODEL EG-5500E ECH-103909100203
...
5
BOLT - FLANGE ECH-100110060080
...
6
BOLT ECH-100011406160
...
7
MOUNT, RUBBER ECH-103525704118
...
8
MOUNT, RUBBER ECH-103525704218
...
9
NUT, FLANGE ECH-100023808000
...
10
STOPPER PLATE ECH-103905441208
...
11
BOLT ECH-100011306400
...
12
SPACER ECH-103895439808
...
13
NUT ECH-100021706000
...
14
TANK ASSY, FUEL ECH-102246900401
...
15
LABEL - CAUTION - OPERATION ECH-103895915808
...
16
LABEL - DANGER ECH-103909900103
...
18
CAP ASSY ECH-100430430015
...
19
FILTER, FUEL ECH-100641360010
...
20
PLUG COVER ECH-102276600103
...
21
FUEL GAUGE, COMPL. ECH-100648000300
...
22
SCREW ECH-100145050040
...
23
BOLT - FLANGE ECH-103595998808
...
24
RUBBER WASHER ECH-103525432708
...
25
CLAMP, HOSE ECH-100561170010
...
26
RUBBER PIPE (11.5x17.5x230 MM) ECH-100851110000
...
27
LEAD - GROUND ECH-103905441508
...
28
SCREW ECH-103410050800
...
29
WASHER, SPRING ECH-103320005008
...
30
BATTERY FRAME, COMPL. ECH-103903300101
...
31
BOLT ECH-100011408200
...
32
BATTERY BASE ECH-103893300511
...
33
BOLT ASSY ECH-100011106350
...
34
NUT ECH-100021706000
...
35
BATTERY BOLT ECH-103535992108
...
36
BATTERY RETAINER ECH-103855438208
...
37
BATTERY SUPPORT ECH-103855441608
...
38
LOCKWASHER ECH-100032006000
...
39
NUT ECH-100021706000
...
40
BATTERY CORD (-) ECH-103895445308
...
41
BATTERY CORD (+) ECH-103905445408
...
42
BATTERY CORD (+) ECH-103905445408

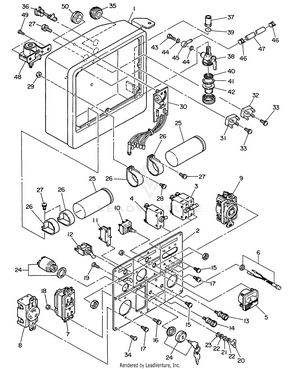

Electrical Panel

...
...
------------------
CONTROL BOX ASSY Includes items 2 thru 36 and 48 thru 50 ECH---
...
1
CONTROL BOX ASSY ECH-103904000301
...
------------------
CONTROL PANEL ASSY Includes items 3 thru 24 ECH---
...
2
CONTROL PANEL ECH-103904100301
...
3
NO-FUSE BREAKER (22Ax2) ECH-103904566008
...
4
NO-FUSE BREAKER (30A) ECH-103594564108
...
5
AC VOLTMETER - 150V ECH-103207512708
...
6
LAMP, NEON ECH-103207517308
...
7
AC RECEPTACLE - 125V-20A, GFCI ECH-103904575008
...
8
AC RECEPTACLE - 125/250V-20A ECH-103564571108
...
9
AC RECEPTACLE - 125/250V-20A ECH-103534572408
...
10
SWITCH ECH-103554561308
...
11
CIRCUIT BREAKER - 10A DC ECH-103524562008
...
12
SWITCH ASSY ECH-103444561508
...
13
BOLT, TERMINAL - RED ECH-103634570108
...
14
BOLT, TERMINAL - BLACK ECH-103634570008
...
15
SCREW ECH-100043503060
...
16
SCREW ECH-100043504100
...
17
SCREW ECH-103565993708
...
18
NUT ECH-100021704000
...
19
SCREW ECH-103564990708
...
20
WINGNUT ECH-103534990108
...
21
NUT ECH-103534990208
...
22
WASHER, SPRING ECH-103320005008
...
23
WASHER ECH-103534990308
...
24
KEY SWITCH ASSY ECH-100660000111
...
25
CONDENSER ECH-103904755308
...
26
CONDENSER BRACKET ECH-103804753108
...
27
SCREW ECH-100043504100
...
28
SCREW ECH-103895998908
...
29
NUT ECH-103895999008
...
30
IDLE CONTROL UNIT ECH-103883060308
...
32
DIODE STACK ASS'Y ECH-103634580308
...
33
SCREW ECH-100043604200
...
34
SCREW - TAPPING ECH-103534990408
...
35
GROMMET ECH-103744754008
...
36
CORD BUSH ECH-103635600008
...
37
CLAMP, HOSE ECH-100533090020
...
38
FILTER, FUEL Includes items 39 thru 44 ECH-100642002310
...
39
O-RING ECH-100642000330
...
40
FILTER ECH-100642000220
...
41
PACKING ECH-100642000230
...
42
CUP ECH-100642000210
...
43
BOLT, BANJO ECH-100642000240
...
44
FIBER PACKING ECH-100642000250
...
45
BOLT, BANJO ECH-100521070042
...
46
CLAMP, HOSE ECH-100561110020
...
47
RUBBER PIPE (6x12x160 MM) ECH-100851060000
...
48
MAGNETIC SWITCH ECH-102147700110
...
49
BOLT ECH-100016505120
...
50
GROMMET ECH-103914900303

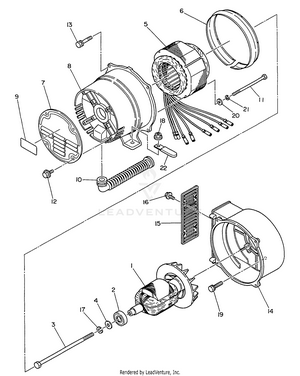

GENERATOR

...
...
1
FLYWHEEL ASSY Include item 2 ECH-103905053508
...
2
BEARING, BALL 6205RS ECH-103545820408
...
3
THROUGH BOLT ECH-103675800808
...
4
WASHER ECH-100200100170
...
5
STATOR ASSY ECH-103905166708
...
6
SUPPORT RING ECH-103855438103
...
7
END COVER ECH-103885500113
...
8
REAR COVER ECH-103905400101
...
9
LABEL - DANGER ECH-103909200203
...
10
BUSHING ECH-103855751008
...
11
BOLT ECH-103865998208
...
12
BOLT, FLANGE ECH-100110060010
...
13
BOLT ECH-100011406250
...
14
FRONT COVER ECH-103905410113
...
15
FRONT PROTECTOR ECH-103885510103
...
16
SCREW - TAPPING ECH-100152050010
...
17
LOCKWASHER ECH-100032010000
...
18
NUT, FLANGE ECH-100023808000
...
19
BOLT ECH-100011308200
...
20
WASHER ECH-100031006000
...
21
LOCKWASHER ECH-100032006000
...
22
CLAMP ECH-100566000170
...
...
...
