Echo EG-3501 Electric Generator

Model: EG-3501

Save
 Part Not Listed?Part Not Listed?
product name

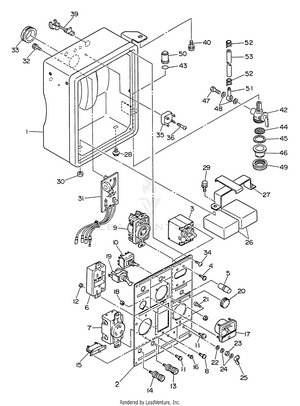

Electrical Panel

...
...
1
CONTROL BOX ASSY Includes ITEMS 1-36 ECH-103898010100
...
1
CONTROL BOX ASSY ECH-103898000101
...
2
CONTROL PANEL ASSY Includes items 2 thru 25 ECH-103898115000
...
2
CONTROL PANEL ASSY ECH-103898105001
...
3
BREAKER, CIRCUIT ECH-103924310203
...
4
SCREW ECH-100043503060
...
5
LAMP, NEON ECH-103207517308
...
6
AC RECEPTACLE - 125V-20A, GFCI ECH-103904575008
...
7
AC RECEPTACLE - 125/250V-20A ECH-103564571108
...
8
SCREW ECH-100043504100
...
9
AC RECEPTACLE - 125/250V-20A ECH-103534572408
...
10
SWITCH ECH-103554561308
...
11
SCREW ECH-103565993708
...
12
NUT ECH-100021704000
...
13
BOLT, TERMINAL - RED ECH-103634570108
...
14
BOLT, TERMINAL - BLACK ECH-103634570008
...
15
CIRCUIT BREAKER - 10A DC ECH-103524562008
...
16
SCREW ECH-100043503060
...
17
AC VOLT METER ECH-103914790001
...
18
NUT ECH-100021703000
...
19
SWITCH ASSY ECH-103444561508
...
20
GROMMET ECH-103894755208
...
21
SCREW ECH-103564990708
...
22
WASHER ECH-103534990308
...
23
NUT ECH-103534990208
...
24
WASHER, SPRING ECH-103320005008
...
25
WINGNUT ECH-103534990108
...
26
CONDENSER ECH-103762200003
...
27
CONDENSER BRACKET ASSY ECH-103874500201
...
28
BOLT, FLANGE ECH-100110060010
...
29
BOLT ECH-103914900103
...
30
NUT ECH-100022706000
...
31
IDLE CONTROL UNIT ECH-103883060308
...
32
SCREW ECH-100043504100
...
33
GROMMET ECH-103898900103
...
34
SCREW - TAPPING ECH-103534990408
...
35
DIODE STACK ASS'Y ECH-103534580408
...
36
SCREW - TAPPING ECH-100150040070
...
39
CORD BUSH ECH-103635600008
...
40
BOLT ECH-100011406160
...
42
FILTER, FUEL Includes items 42 thru 49 ECH-100642002311
...
43
O-RING ECH-100642000330
...
44
FILTER ECH-100642000220
...
45
PACKING ECH-100642000230
...
46
CUP ECH-100642001910
...
47
BOLT, BANJO ECH-100642000240
...
48
FIBER PACKING ECH-100642000250
...
49
NUT, LOCK ECH-100642002410
...
50
CLAMP, HOSE ECH-100533090020
...
51
BOLT, BANJO ECH-100521070042
...
52
CLAMP, HOSE ECH-100561110020
...
53
RUBBER PIPE (6x12x160 MM) ECH-100851060000

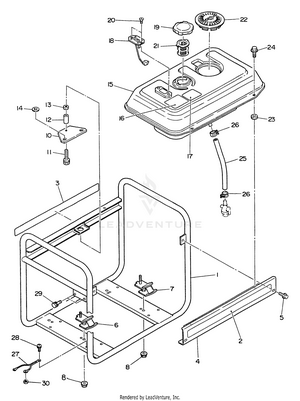

Fuel Tank, Pipe Frame

...
...
1
PIPE FRAME, COMPL. ECH-103897110001
...
2
LABEL - MODEL EG-3501 ECH-103899100403
...
3
LABEL - MODEL EG-3501 ECH-103899100503
...
4
SIDE PLATE, COMPL. ECH-103897210001
...
5
BOLT - FLANGE ECH-100110060080
...
6
MOUNT, RUBBER ECH-103525704118
...
7
MOUNT, RUBBER ECH-103525704218
...
8
NUT, FLANGE ECH-100023808000
...
10
STOPPER PLATE ECH-103895441108
...
11
BOLT ECH-100011306350
...
12
SPACER ECH-103895439808
...
13
NUT ECH-100021706000
...
14
WASHER ECH-100031206000
...
15
TANK ASSY, FUEL Includes ITEMS 16-17 ECH-102346900501
...
16
LABEL - CAUTION - OPERATION ECH-103895915808
...
17
LABEL - DANGER ECH-103909900103
...
18
LEVEL GAUGE, COMPL. ECH-100648000400
...
19
CAP ASSY ECH-100430430015
...
20
SCREW ECH-100145050040
...
21
FILTER, FUEL ECH-100641360010
...
22
PLUG COVER ECH-102276600103
...
23
RUBBER WASHER ECH-103525432708
...
24
BOLT, FLANGE ECH-100110060180
...
25
RUBBER PIPE (11.5x17.5x230 MM) ECH-100851110000
...
26
CLAMP, HOSE ECH-100561170010
...
27
LEAD - GROUND ECH-103883900101
...
28
SCREW ECH-103763910001
...
29
BOLT ECH-100011406160
...
30
NUT ECH-103914900203

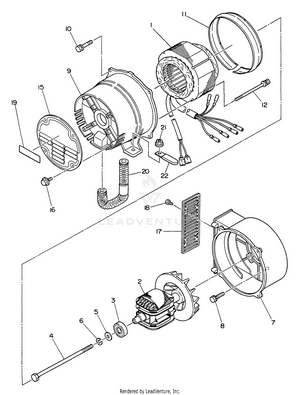

GENERATOR

...
...
1
STATOR ASSY ECH-103922130001
...
2
ROTOR Includes ITEM 3 ECH-103922100001
...
3
BEARING, BALL ECH-103535820808
...
4
THROUGH BOLT ECH-103922510003
...
5
WASHER ECH-100200100170
...
6
LOCKWASHER ECH-100032010000
...
7
FRONT COVER ECH-103895410113
...
8
BOLT ECH-100011308200
...
9
REAR COVER ASSY ECH-103885400101
...
10
BOLT ECH-100011406250
...
11
SUPPORT RING ECH-103885438103
...
12
BOLT ECH-103922520003
...
15
END COVER ECH-103885500113
...
16
BOLT, FLANGE ECH-100110060010
...
17
FRONT PROTECTOR ECH-103885510103
...
18
SCREW - TAPPING ECH-100152050010
...
19
LABEL - GENERATOR ECH-103899200203
...
20
BUSHING ECH-103912900013
...
21
NUT, FLANGE ECH-100023808000
...
22
CLAMP ECH-100566000170
...
...
...
