Echo EDR-2400 Type 1E Engine Drill Reversable

Model: EDR-2400 Type 1E

Save Part Not Listed?
product name

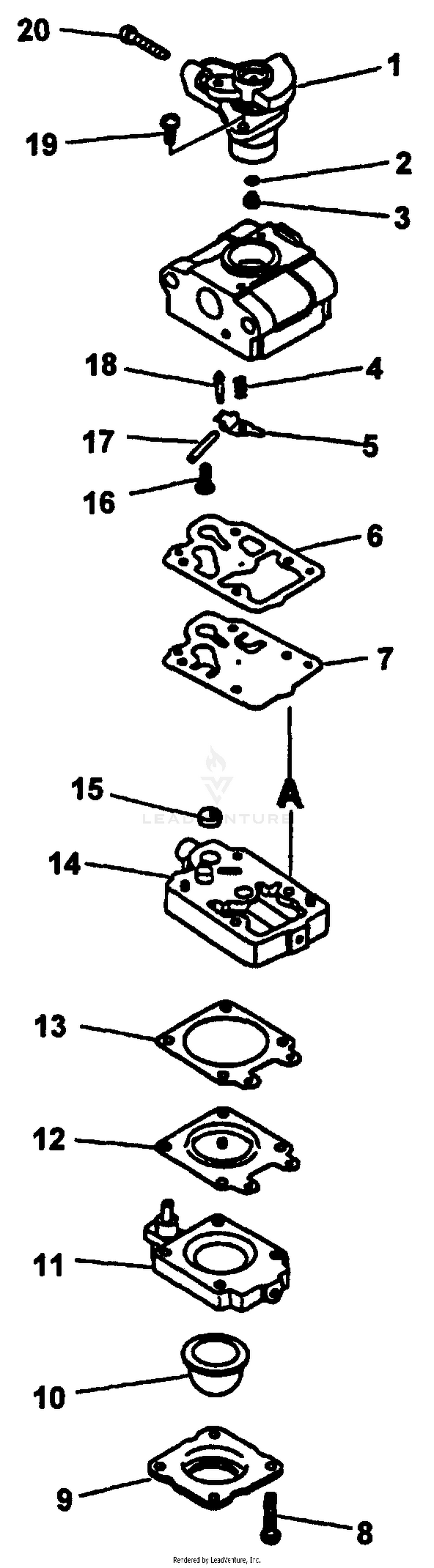

Carburetor

...
...
xx
CARBURETOR Includes ITEMS 1-20 ECH-12300021361
...
1
VALVE, THROTTLE ECH-12311605560
...
2
O-RING INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
------------------
JET - 38 INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
4
SPRING, METERING LEVER INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
5
LEVER, METERING INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
------------------
GASKET, PUMP INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560 ECH---
...
------------------
DIAPHRAGM, PUMP INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560 ECH---
...
8
SCREW, PUMP COVER ECH-P003006830
...
9
COVER, PRIMER PUMP ECH-P003006760
...
10
PURGE BULB ECH-P003006770
...
11
BODY, AIR PURGE ECH-P003007100
...
12
DIAPHRAGM, METERING INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560 ECH---
...
13
GASKET, METERING INCLUDED IN REBUILD KIT P/N 12310021360 AND GASKET/DIAPHRAGM KIT P/N 12310105560 ECH---
...
14
BASE, PURGE INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
15
STRAINER INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
16
SCREW, METERING LEVER PIN INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
17
PIN, METERING LEVER INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
------------------
VALVE, INLET NEEDLE INCLUDED IN REBUILD KIT P/N 12310021360 ECH---
...
19
SCREW, THROTTLE COLLAR ECH-12311444330
...
20
SCREW ECH-12313440030
...
xx
REPAIR KIT ED-2000 ECH-12310005560
...
xx
GASKET / DIAPHRAGM KIT ECH-12310105560

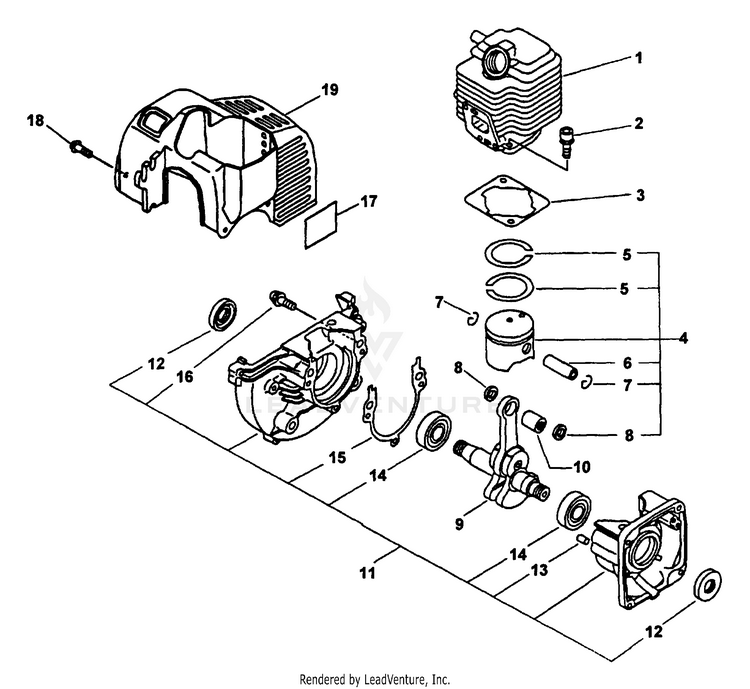

Engine, Crankcase, Cover

...
...
1
CYLINDER/PISTON KIT SRM-2400 ECH-P021035810
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER USE KIT 88900044431 ECH-10101044332
...
4
PISTON KIT INCLUDES ITEMS 5-8 ECH-10000052130
...
5
RING, PISTON ECH-10001109560
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
CRANKSHAFT ASSY Includes ITEM 10 ECH-A011001410
...
10
BEARING, NEEDLE 8 ECH-V553000010
...
11
CRANKCASE KIT Includes ITEMS 12-16 ECH-10020452133
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
GASKET, CRANKCASE USE KIT 88900044431 ECH---
...
16
BOLT 5x28 ECH-90016205028
...
17
LABEL - MODEL ECH-89011221360
...
18
SCREW 4x12 ECH-90024204012
...
19
COVER, CYLINDER ECH-10151421360
...
xx
SHORT BLOCK ES-2400 ECH-SB1027
...
xx
GASKET KIT OPTIONAL ECH-88900044434
...
xx
GASKET, CYLINDER OPTIONAL ECH-10101044332
...
xx
GASKET, CRANKCASE OPTIONAL ECH---
...
xx
GASKET, INTAKE OPTIONAL ECH-13001044431
...
xx
HEAT SHIELD, INTAKE OPTIONAL ECH-V103001360
...
xx
GASKET, EXHAUST OPTIONAL ECH-14586642031
...
xx
GASKET, EXHAUST OPTIONAL ECH-V104000160
...
xx
GASKET, MUFFLER OPTIONAL ECH-14551044331
...
xx
O-RING 15 OPTIONAL ECH-90072000015

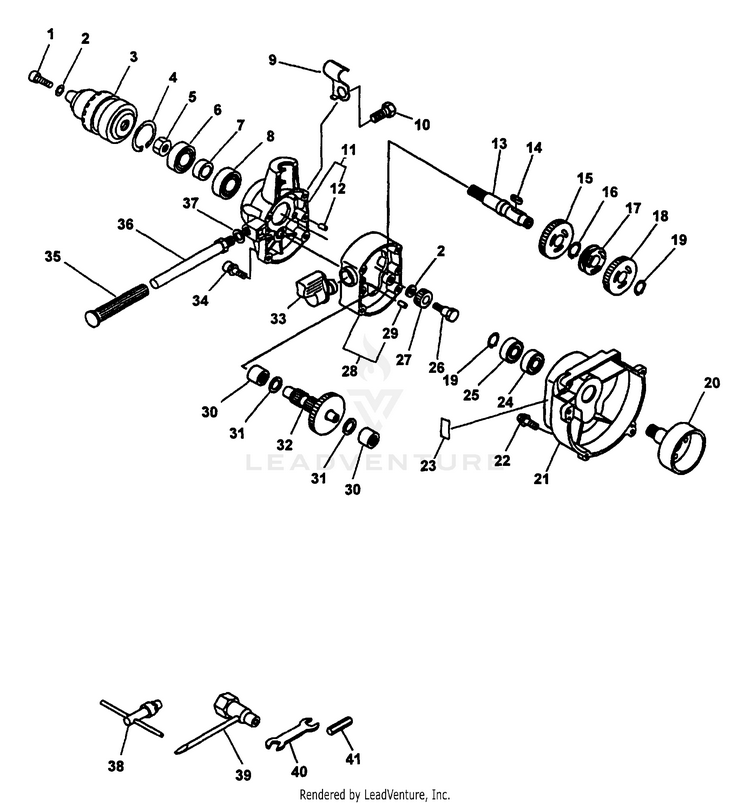

Gear Case, Chuck, Fan Cover, Tools

...
...
1
BOLT 6x20 ECH-90010506020
...
2
WASHER 6 ECH-17501404630
...
3
CHUCK, KEYED ECH-60405105560
...
4
RING, SNAP 32 ECH-90070200032
...
5
NUT, 12 ECH-22431920960
...
6
BEARING, BALL 6002 DDU ECH-90080206002
...
7
COLLAR ECH-60404405560
...
8
BEARING, BALL 6002 ECH-90080036002
...
9
HOLDER, CHUCK KEY ECH-89757505560
...
10
BOLT 10x1.5x15 ECH-90010010015
...
11
HOUSING, GEAR CASE Includes ITEM 12 ECH-60430520960
...
12
PIN, LOCATING 4 ECH-V622000020
...
13
SHAFT, AXLE ECH-60602120960
...
14
KEY, WOODRUFF 4x16 ECH-90032504016
...
15
GEAR, SPUR ECH-60421320960
...
16
RING, RETAINING 15 ECH-90070100015
...
17
NAIL, CLUTCH ECH-60423520960
...
18
GEAR, SPUR ECH-60422420960
...
19
RING, SNAP 12 ECH-90070100012
...
20
DRUM, CLUTCH ECH-17500505560
...
21
COVER, FAN ECH-10151120960
...
22
SCREW 4x16 ECH-90024204016
...
23
LABEL - CAUTION - HOT ECH-X505002310
...
24
BEARING, BALL ECH-9404206001
...
25
BEARING, BALL 6001 ECH-90080036001
...
26
BOLT, CLUTCH ECH-17504622332
...
27
GEAR, SPUR ECH-60531120960
...
28
CASE, GEAR Includes ITEM 29 ECH-60430620960
...
29
PIN, LOCATING 4 ECH-V622000020
...
30
BEARING, NEEDLE ECH-60422105560
...
31
WASHER ECH-60422305560
...
32
GEAR, SHAFT ECH-60420620961
...
33
LEVER, CLUTCH ECH-70300520960
...
34
BOLT 5x50 ECH-90016205050
...
35
GRIP, HANDLE ECH-35131128330
...
36
HANDLE, LEFT ECH-35121005560
...
37
WASHER 10.5x18x1.6 ECH-90060000010
...
38
KEY, CHUCK ECH-89757005560
...
39
T-WRENCH 10x19 MM ECH-89541039132
...
40
SPANNER 17x19 ECH-89512220960
...
41
WRENCH, HEX, STEEL ECH-89541220961

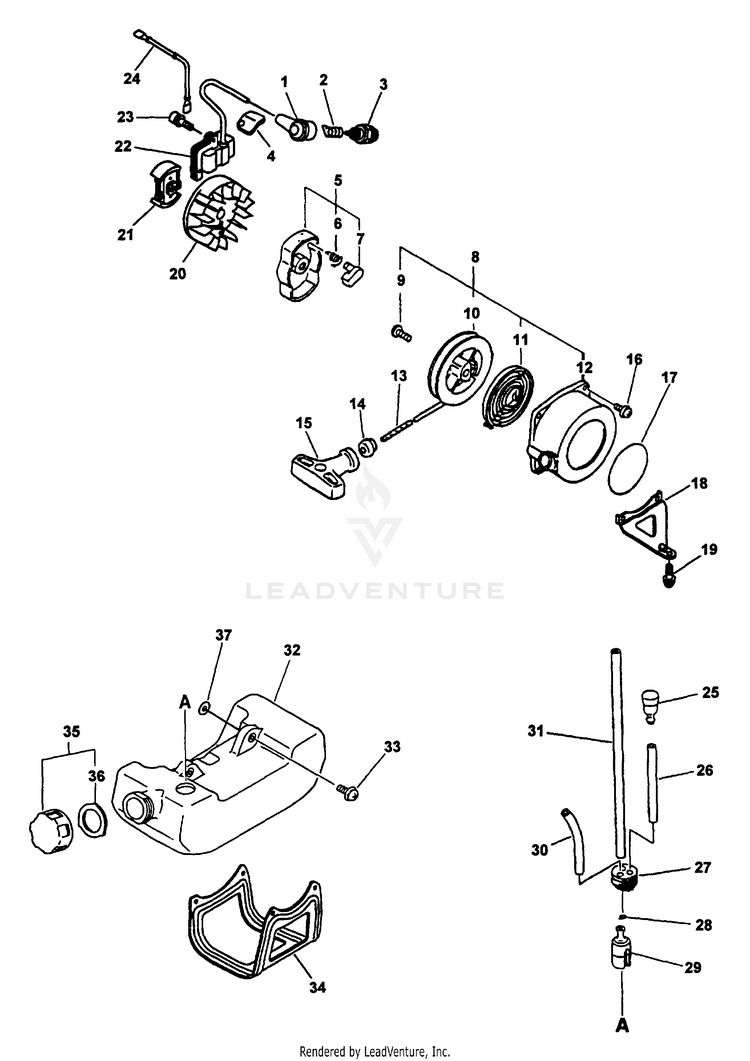

Ignition, Starter, Clutch, Fuel System

...
...
1
CAP, SPARK PLUG ECH-15901201620
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
SPARK PLUG - BPM7Y ECH-99944500071R
...
4
GROMMET ECH-15011242030
...
5
PAWL ASSY, STARTER Includes ITEMS 6 & 7 ECH-17720212220
...
6
SPRING, RETURN ECH-17723412220
...
7
PAWL, STARTER - BLACK ECH-17721844330
...
8
STARTER ASSY, RECOIL INCLUDES ITEMS 9-15 ECH-17720042033
...
9
SCREW ECH-17723644330
...
10
REEL, ROPE ECH-17721544430
...
11
SPRING, RECOIL ECH-P022019680
...
12
CASE, RECOIL STARTER ECH-17723242032
...
13
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH---
...
14
GUIDE, ROPE ECH-17722742030
...
15
GRIP, STARTER ECH-17722806530
...
16
BOLT 4x16 ECH-V202000830
...
17
LABEL - ECHO ECH-X502000320
...
18
SUPPORT, HANDLE ECH-35101105560
...
19
SCREW 5x16 ECH-90024205016
...
20
FLYWHEEL ECH-15680144731
...
21
CLUTCH ASSY ECH-17500056831
...
22
COIL, IGNITION ECH-15660152131
...
23
SCREW 4x22 ECH-90016204022
...
24
LEAD - IGNITION ECH-V485001080
...
25
VENT ASSY INCLUDED IN KIT 90010 ECH-A356000031
...
26
PIPE, VENT RePower BULK OPTION: 90015 ECH-13131205560
...
27
GROMMET, FUEL 5 ECH-13211546730
...
28
CLIP 6 MM ECH-13201309820
...
29
FILTER, FUEL ECH-A369000480
...
30
PIPE, FUEL 3x6x80 YELLOW RePower BULK OPTION: 90017 ECH-V471006060
...
31
PIPE, FUEL RePower BULK OPTION: 90014 ECH-13201005560
...
32
TANK, FUEL ECH-13100544332
...
33
SCREW 5x16 ECH-90024305016
...
34
GUARD, FUEL TANK ECH-30511042030
...
35
FUEL CAP ASSY INCLUDES ITEM 36 (INCLUDED IN KIT 90010) ECH-P200000830
...
36
GASKET, FUEL CAP ECH-V107000230
...
37
WASHER 5.5x12x0.8 ECH-90060300005
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000
...
xx
CAP/VENT KIT - REPOWER ECH-90248

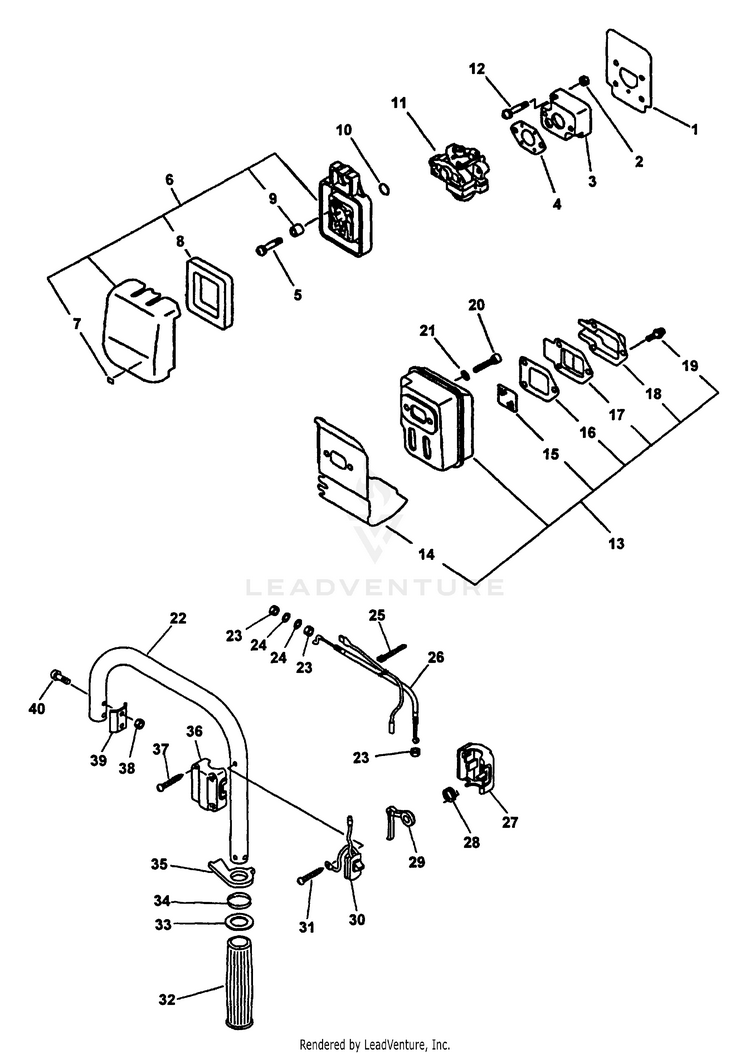

Intake, Air Filter, Exhaust, Handle, Stop Switch

...
...
1
HEAT SHIELD, INTAKE INCLUDED IN KIT 88900044431 ECH-V103001360
...
2
NUT M5 ECH-90050000005
...
3
INSULATOR KIT ECH-P021015350
...
4
GASKET, INTAKE INCLUDED IN KIT 88900044431 ECH-13001044431
...
5
SCREW 5x22 ECH-90024205022
...
6
FILTER ASSY, AIR INCLUDES ITEMS 7-9 ECH-13030020960
...
7
LABEL ECH-89099120960
...
8
FILTER, AIR ECH-13031044330
...
9
SLEEVE ECH-13032744330
...
10
O-RING 15 INCLUDED IN KIT 88900044431 ECH-90072000015
...
11
CARBURETOR ECH-12300021361
...
12
SCREW 5x64 ECH-90024205064
...
13
MUFFLER ASSY Includes ITEMS 14-19 ECH-14580021361
...
14
GASKET, MUFFLER INCLUDED IN KIT 88900044431 ECH-14551044331
...
15
SCREEN, SPARK ARRESTER ECH-14586240630
...
16
GASKET, EXHAUST INCLUDED IN KIT 88900044431 ECH-14586642031
...
17
GUIDE, EXHAUST ECH-14587642030
...
18
GUIDE, EXHAUST ECH-14588321360
...
19
SCREW 4x10 ECH-90024204010
...
20
BOLT 5x55 ECH-90010505055
...
21
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
22
HANDLE ECH-35130520960
...
23
NUT M6 ECH-90050200006
...
24
WASHER 6.5x11.5x0.8 ECH-90060000006
...
25
TIE, CABLE ECH-17812156030
...
26
CABLE ASSY, THROTTLE ECH-17810009061
...
27
BRACKET, RIGHT CONTROL ECH-17802401261
...
28
SPRING, THROTTLE RETURN ECH-17804301260
...
29
CONTROL, THROTTLE ECH-17801007660
...
30
SWITCH, ON-OFF ECH-16340004460
...
31
SCREW 4x30 ECH-90024504030
...
32
GRIP, HANDLE ECH-35131527931
...
33
SPACER ECH-17807002061
...
34
SPRING, THROTTLE LOCKOUT ECH-17801302060
...
35
LOCKOUT, THROTTLE ECH-17801202061
...
36
BRACKET, LEFT CONTROL ECH-17805201261
...
37
SCREW 4x25 ECH-90024504025
...
38
NUT, LOCK M5 ECH-90056000005
...
39
PLATE ECH-35164105560
...
40
BOLT M5x35 ECH-90016205035
...
xx
GASKET KIT ECH-88900044434
