Echo ED-2000 Type 1E Engine Drill

Model: ED-2000 Type 1E

Save Part Not Listed?
product name

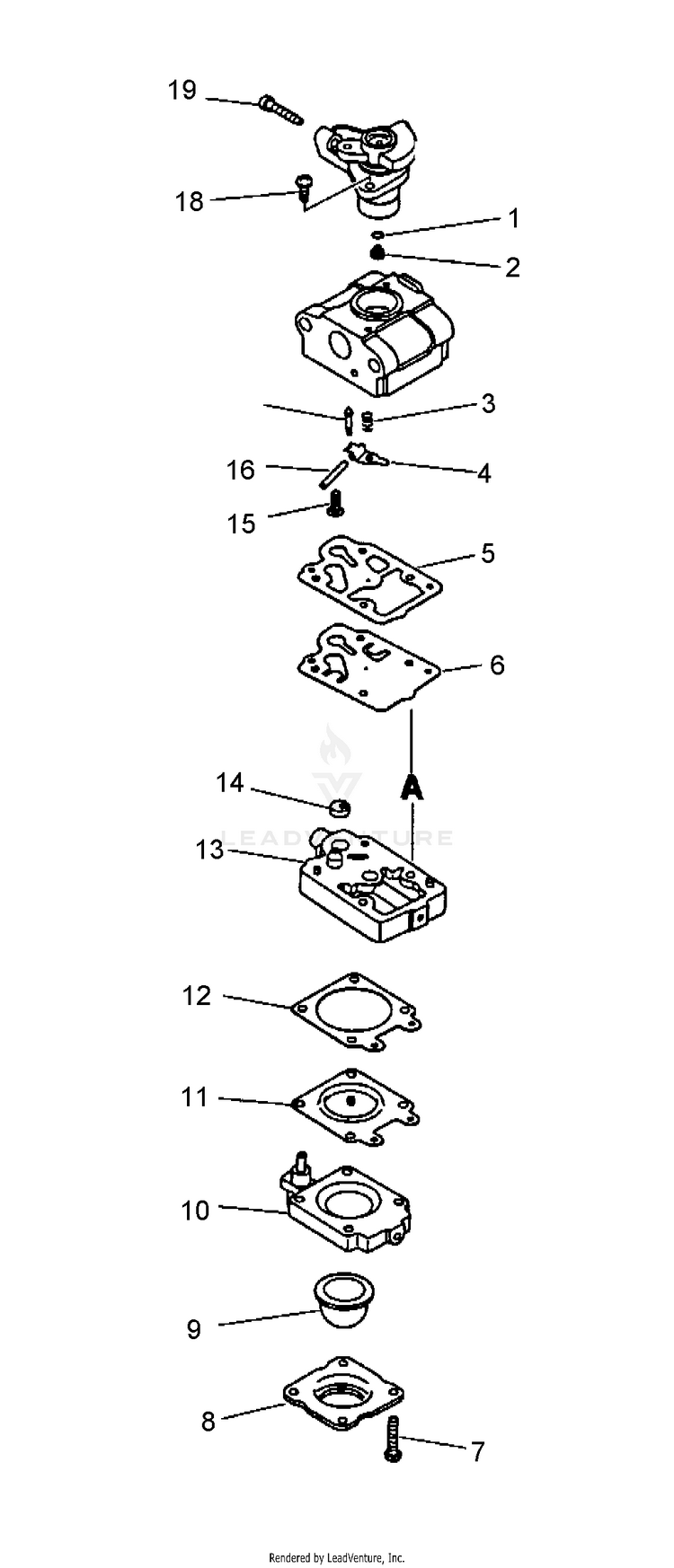

Carburetor

...
...
xx
CARBURETOR INCLUDES THE FOLLOWING ECH-12300020961
...
1
O-RING USE REBUILD KIT P/N 12310005560 ECH---
...
2
JET USE REBUILD KIT P/N 12310005560 ECH---
...
3
SPRING, METERING LEVER USE REBUILD KIT P/N 12310005560 ECH---
...
4
LEVER, METERING USE REBUILD KIT P/N 12310005560 ECH---
...
5
GASKET, PUMP USE REBUILD KIT P/N 12310005560 AND GASKET/DIAPHRAGM KIT P/N 12310120960 ECH---
...
6
DIAPHRAGM, PUMP USE REBUILD KIT P/N 12310005560 AND GASKET/DIAPHRAGM KIT P/N 12310120960 ECH---
...
7
SCREW, PUMP COVER ECH-P003006830
...
8
COVER, PRIMER PUMP ECH-P003006760
...
9
PURGE BULB ECH-P003006770
...
10
BODY, AIR PURGE ECH-P003007100
...
11
DIAPHRAGM, METERING USE REBUILD KIT P/N 12310005560 AND GASKET/DIAPHRAGM KIT P/N 12310120960 ECH---
...
12
GASKET, METERING USE REBUILD KIT P/N 12310005560 AND GASKET/DIAPHRAGM KIT P/N 12310120960 ECH---
...
13
BASE, PURGE USE REBUILD KIT P/N 12310005560 ECH---
...
14
STRAINER USE REBUILD KIT P/N 12310005560 ECH---
...
15
SCREW, METERING LEVER PIN USE REBUILD KIT P/N 12310005560 ECH---
...
16
PIN, METERING LEVER USE REBUILD KIT P/N 12310005560 ECH---
...
17
VALVE, INLET NEEDLE USE REBUILD KIT P/N 12310005560 ECH---
...
18
SCREW, THROTTLE COLLAR ECH-12311444330
...
19
SCREW ECH-12313440030
...
xx
REPAIR KIT ED-2000 ECH-12310005560
...
xx
GASKET / DIAPHRAGM KIT ECH-12310105560

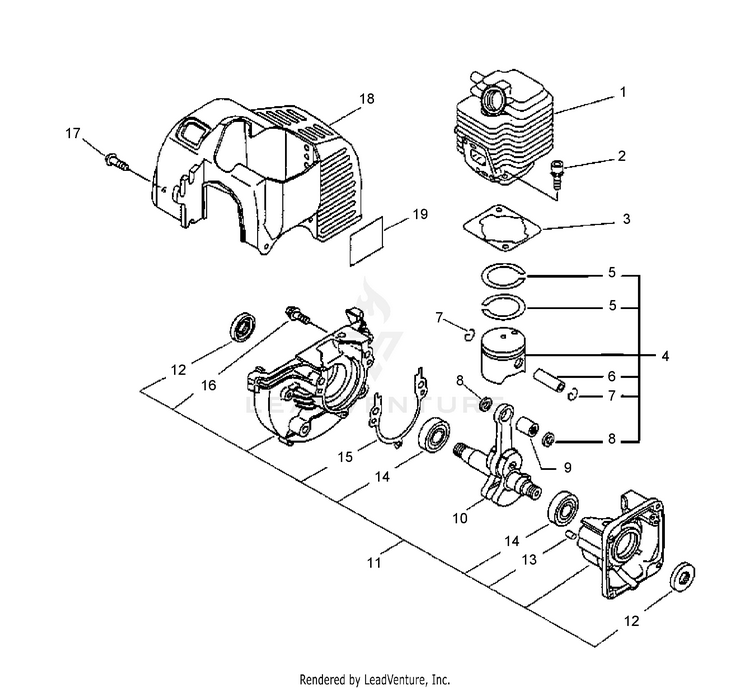

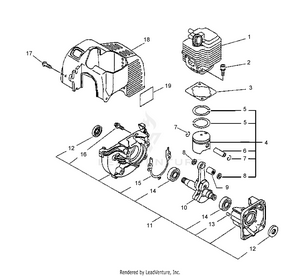

Engine, Crankcase, Cover

...
...
1
CYLINDER (S/N 001001 - 501000) ECH-10101106562
...
1
CYLINDER (S/N 501001 & UP) ECH-A130000012
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER USE KIT P/N 88900044432 ECH-10101044332
...
4
KIT, PISTON (S/N 001001 - 501000). INCLUDES ITEMS 5 - 8 ECH-P100013150
...
4
PISTON KIT (S/N 501001 & UP) ECH-P021001102
...
5
RING, PISTON (S/N 001001 - 501000) ECH-10001105330
...
5
RING, PISTON (S/N 501001 & UP) ECH-A101000000
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
BEARING, NEEDLE 8 ECH-V553000010
...
10
CRANKSHAFT ASSY USE P/N SB1026 ECH---
...
11
CRANKCASE KIT INCLUDES ITEMS 12 - 16. (USE P/N SB1026) ECH---
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
GASKET, CRANKCASE USE KIT P/N 88900044432 ECH---
...
16
BOLT 5x28 ECH-90016205028
...
17
SCREW 4x12 ECH-90024204012
...
18
COVER, CYLINDER ECH-10151421360
...
19
LABEL - MODEL ECH-89011405560
...
xx
SHORT BLOCK ES-2100;PB-2100 ECH-SB1026
...
xx
GASKET KIT RePower OPTION ECH-88900044434
...
xx
GASKET, CYLINDER RePower OPTION ECH-10101044332
...
xx
GASKET, CRANKCASE RePower OPTION ECH---
...
xx
GASKET, INTAKE RePower OPTION ECH-13001044431
...
xx
HEAT SHIELD, INTAKE RePower OPTION ECH-V103001360
...
xx
GASKET, EXHAUST RePower OPTION ECH-14586642031
...
xx
GASKET, EXHAUST RePower OPTION ECH-V104000160
...
xx
GASKET, EXHAUST RePower OPTION ECH-V104000003
...
xx
O-RING 15 RePower OPTION ECH-90072000015

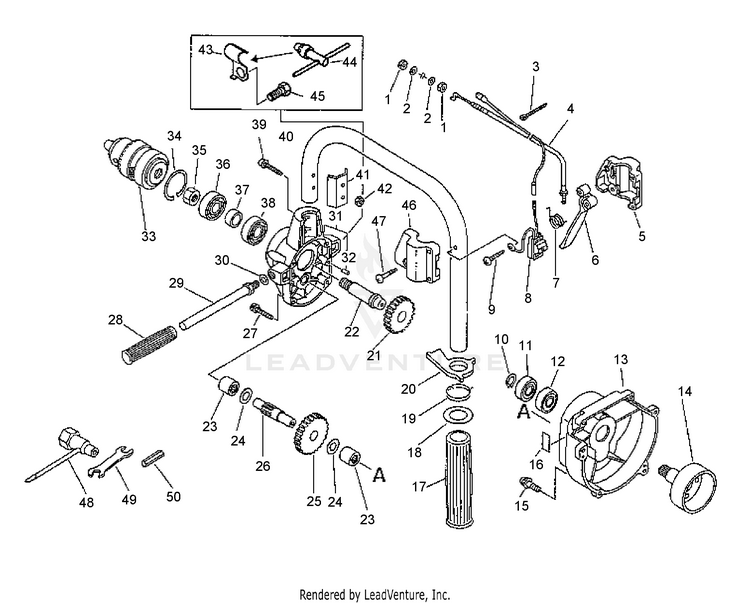

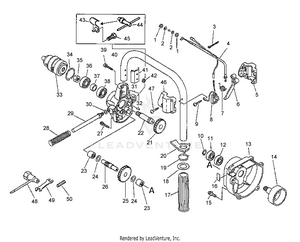

Gear Case, Chuck, Fan Cover, Tools

...
...
1
NUT M6 ECH-90050200006
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
3
TIE, CABLE ECH-17812156030
...
4
CABLE ASSY, THROTTLE ECH-17810009061
...
5
BRACKET, RIGHT CONTROL ECH-17802401261
...
6
CONTROL, THROTTLE ECH-17801007660
...
7
SPRING, THROTTLE RETURN ECH-17804301260
...
8
SWITCH, ON-OFF ECH-16340004460
...
9
SCREW 4x30 ECH-90024504030
...
10
RING, SNAP 12 ECH-90070100012
...
11
BEARING, BALL 6001 ECH-90080036001
...
12
BEARING, BALL 6001 ECH-90080206601
...
13
COVER, FAN ECH-10151120960
...
14
DRUM, CLUTCH ECH-17500505560
...
15
SCREW 4x16 ECH-90024204016
...
16
LABEL - CAUTION - HOT ECH-X505002310
...
17
GRIP, HANDLE ECH-35131102330
...
18
SPACER ECH-17807002061
...
19
SPRING, THROTTLE LOCKOUT ECH-17801302060
...
20
LOCKOUT, THROTTLE ECH-17801202061
...
21
GEAR, SPUR ECH-60422405560
...
22
GEAR, SHAFT S/N 001001 - 500000 ECH-60404205560
...
22
GEAR, SHAFT S/N 500001 & UP ECH-60602109060
...
23
BEARING, NEEDLE ECH-60422105560
...
24
WASHER ECH-60422305560
...
25
GEAR, SHAFT ECH-60420605560
...
26
GEAR, SHAFT ECH-60420605560
...
27
BOLT 4x25 S/N 001001 - 500000 ECH-90016204025
...
27
BOLT 5x25 S/N 500001 & UP ECH-90016205025
...
28
GRIP, HANDLE ECH-35131128330
...
29
HANDLE, LEFT ECH-35121005560
...
30
WASHER 10.5x18x1.6 ECH-90060000010
...
31
CASE, GEAR S/N 001001 - 500000. INCLUDES ITEM 32 ECH-60431105560
...
31
HOUSING, GEAR CASE S/N 500001 & UP. INCLUDES ITEM 32 ECH-60430520960
...
32
PIN, LOCATING 4 ECH-V622000020
...
33
CHUCK, KEYED ECH-60405105560
...
34
RING, SNAP 32 ECH-90070200032
...
35
NUT, 12 ECH-22431920960
...
36
BEARING, BALL 6002 DDU ECH-90080206002
...
37
COLLAR ECH-60404405560
...
38
BEARING, BALL 6002 ECH-90080036002
...
39
BOLT M5x35 ECH-90016205035
...
40
HANDLE ASSY - REAR ECH-35100005561
...
41
PLATE ECH-35164105560
...
42
NUT, LOCK M5 ECH-90056000005
...
43
HOLDER, CHUCK KEY S/N 501121 & UP ECH-89757505560
...
44
KEY, CHUCK ECH-89757005560
...
45
BOLT 10x1.5x15 S/N 5001121 & UP ECH-90010010015
...
46
BRACKET, LEFT CONTROL ECH-17805201261
...
47
SCREW 4x25 ECH-90024504025
...
48
T-WRENCH 10x19 MM ECH-89541039132
...
49
SPANNER 17x19 ECH-89512220960
...
50
WRENCH, HEX, STEEL ECH-89541220961

Ignition, Starter, Clutch, Fuel System

...
...
1
CAP, SPARK PLUG ECH-15901201620
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
SPARK PLUG - BPM7Y ECH-99944500071R
...
4
GROMMET ECH-15011242030
...
5
PAWL ASSY, STARTER Includes ITEMS 6 & 7 ECH-17720212220
...
6
SPRING, RETURN ECH-17723412220
...
7
PAWL, STARTER - BLACK ECH-17721844330
...
8
STARTER ASSY, RECOIL INCLUDES ITEMS 9 - 15 ECH-17720042033
...
9
SCREW ECH-17723644330
...
10
REEL, ROPE ECH-17721544430
...
------------------
ROPE, STARTER 3.0×990 RePower BULK OPTION: 99944440000 ECH---
...
12
GUIDE, ROPE ECH-17722742030
...
13
GRIP, STARTER ECH-17722806530
...
14
SPRING, RECOIL ECH-P022019680
...
15
CASE, RECOIL STARTER ECH-17723242032
...
16
BOLT 4x16 ECH-V202000830
...
17
LABEL - ECHO ECH-X502000320
...
18
SUPPORT, HANDLE ECH-35101105560
...
19
SCREW 5x16 ECH-90024205016
...
20
FLYWHEEL ECH-15680144731
...
21
CLUTCH ASSY S/N 001001 - 501120 ECH-17500056831
...
21
CLUTCH S/N 501121 & UP ECH-17500052131
...
22
COIL, IGNITION ECH-15660152131
...
23
SCREW 4x22 ECH-90016204022
...
24
LEAD - IGNITION ECH-V485001080
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000

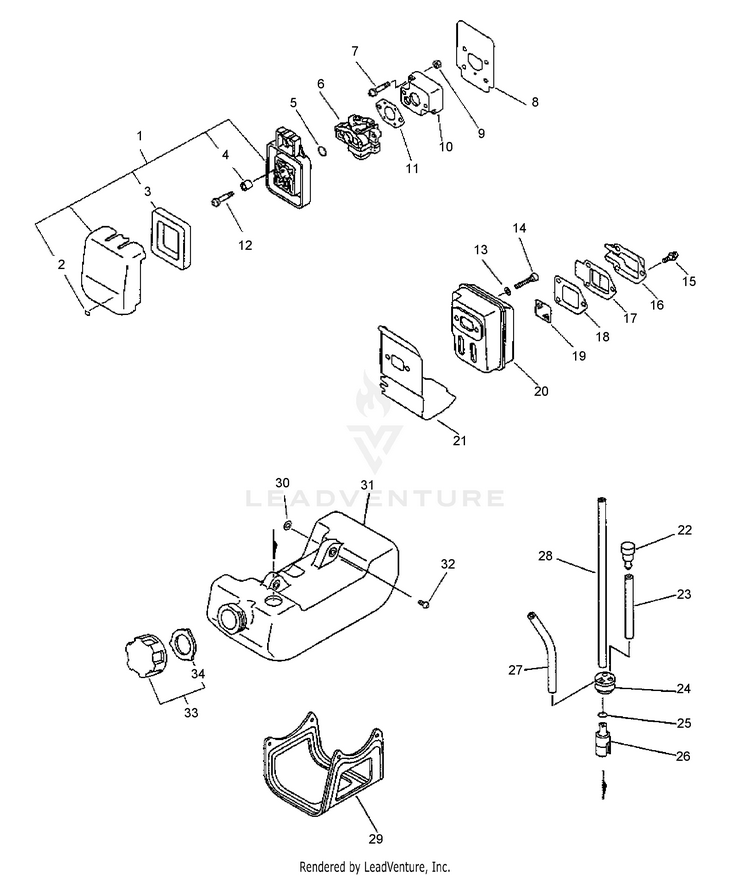

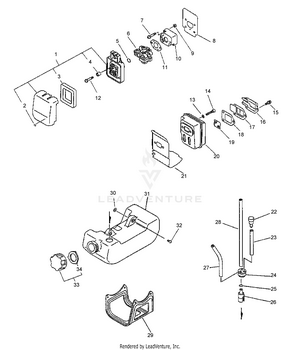

Intake, Air Filter, Exhaust, Handle, Stop Switch

...
...
1
FILTER ASSY, AIR INCLUDES ITEMS 2 - 4 ECH-13030020960
...
2
LABEL ECH-89099120960
...
3
FILTER, AIR ECH-13031044330
...
4
SLEEVE ECH-13032744330
...
5
O-RING 15 ECH-90072000015
...
6
CARBURETOR ECH-12300020961
...
7
SCREW 5x22 ECH-90024205022
...
8
HEAT SHIELD, INTAKE INCLUDED IN KIT P/N 88900044432 ECH-V103001360
...
9
NUT M5 ECH-90050000005
...
10
INSULATOR KIT ECH-P021015350
...
11
GASKET, INTAKE INCLUDED IN KIT P/N 88900044432 ECH-13001044431
...
12
SCREW 5x64 ECH-90024205064
...
13
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
14
BOLT 5x55 ECH-90010505055
...
15
SCREW 4x10 ECH-90024204010
...
16
GUIDE, EXHAUST S/N 001001 - 501000 ECH-A313000041
...
16
GUIDE, EXHAUST - INNER S/N 501001 & UP ECH-A313000040
...
17
GUIDE, EXHAUST ECH-14587642030
...
18
GASKET, EXHAUST S/N 001001 - 501000. INCLUDED IN KIT P/N 88900044432 ECH-14586642031
...
18
GASKET, EXHAUST S/N 501001 & UP. INCLUDED IN KIT P/N 88900044432 ECH-V104000003
...
19
SCREEN, SPARK ARRESTER ECH-14586240630
...
20
MUFFLER ECH-14585805560
...
21
GASKET, MUFFLER ECH-14551044331
...
22
VENT ASSY ECH-A356000031
...
23
PIPE, VENT RePower BULK OPTION: 90015 ECH-13131205560
...
24
GROMMET, FUEL 5 ECH-13211546730
...
25
CLIP 6 MM ECH-13201309820
...
26
FILTER, FUEL ECH-A369000480
...
27
PIPE, FUEL 3x6x80 YELLOW RePower BULK OPTION: 90017 ECH-V471006060
...
28
PIPE, FUEL RePower BULK OPTION: 90014 ECH-13201005560
...
29
GUARD, FUEL TANK ECH-30511042030
...
30
WASHER 5.5x12x0.8 ECH-90060300005
...
31
TANK, FUEL ECH-13100546831
...
32
SCREW 5x16 ECH-90024305016
...
33
FUEL CAP ASSY Includes ITEM 34 ECH-P200000830
...
34
GASKET, FUEL CAP USE CAP/VENT KIT P/N 90010 ECH-V107000230
...
xx
GASKET KIT ECH-88900044434
...
xx
CAP/VENT KIT - REPOWER ECH-90248
