Echo ED-2000 Type 1 Engine Drill

Model: ED-2000 Type 1

Save Part Not Listed?
product name

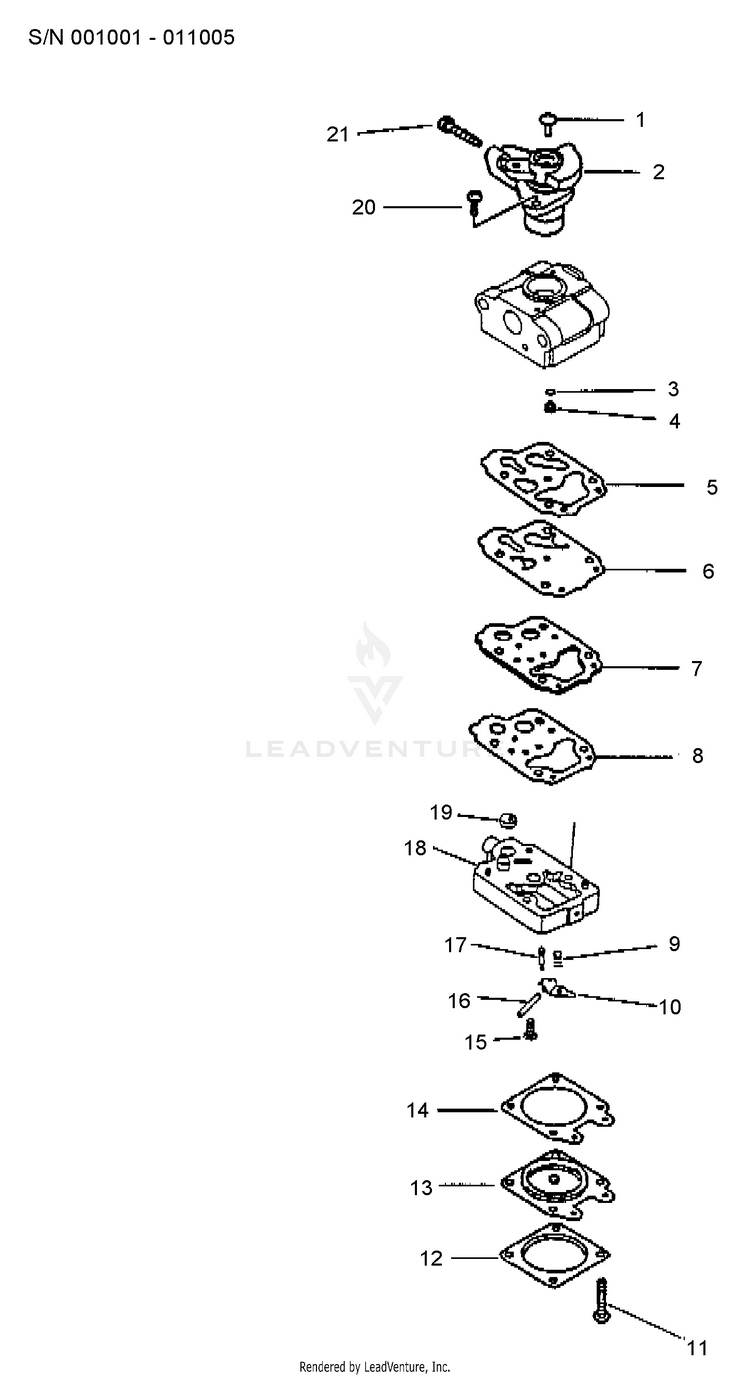

Carburetor S/N: 001001 - 011005

...
...
xx
CARBURETOR - WYL-1 S/N 001001 - 011005. INCL. THE FOLLOWING WHEN REPLACING CARBURETOR ASSEMBLY P/N 12300044430 WITH CARBURETOR ASSEMBLY P/N 12300005560; REPLACE EXISTING FUEL TANK GROMMET P/N 13211544330 WITH NEW GROMMET P/N 13211546730 AND ADD RETURN PIPE P/N 13201246730. ECH-12300044430
...
1
PLUG ECH-12314644330
...
2
VALVE ASSY, THROTTLE ECH-12311644330
...
3
O-RING ECH-12318305960
...
4
JET, MAIN #37 ECH-12318444330
...
5
GASKET, PUMP USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430 ECH---
...
6
DIAPHRAGM, PUMP USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430 ECH---
...
7
COVER, PUMP ECH-12316040630
...
8
GASKET, PLATE USE REBUILD KIT P/N 12310044430 ECH---
...
9
SPRING, METERING LEVER USE REBUILD KIT P/N 12310044430 ECH---
...
10
LEVER, METERING USE REBUILD KIT P/N 12310044430 ECH---
...
11
SCREW ECH-12314444330
...
12
COVER, MET. DIA. ECH-P003006890
...
13
DIAPHRAGM, METERING USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430 ECH---
...
14
GASKET, METERING USE GASKET/DIAPHRAGM KIT P/N 12310144430 AND REBUILD KIT P/N 12310044430 ECH---
...
15
SCREW, METERING LEVER PIN USE REBUILD KIT P/N 12310044430 ECH---
...
16
PIN, METERING LEVER USE REBUILD KIT P/N 12310044430 ECH---
...
17
VALVE, INLET NEEDLE USE REBUILD KIT P/N 12310044430 ECH---
...
18
BASE, PURGE USE REBUILD KIT P/N 12310044430 ECH---
...
19
STRAINER USE REBUILD KIT P/N 12310044430 ECH---
...
20
SCREW, THROTTLE COLLAR ECH-12311444330
...
21
SCREW ECH-12313440030
...
xx
DIAPHRAGM/GASKET KIT ECH-12310144430
...
xx
REPAIR KIT, CARBURETOR ECH-12310044430
...
xx
CARBURETOR - WYL-23 ECH-12300005560

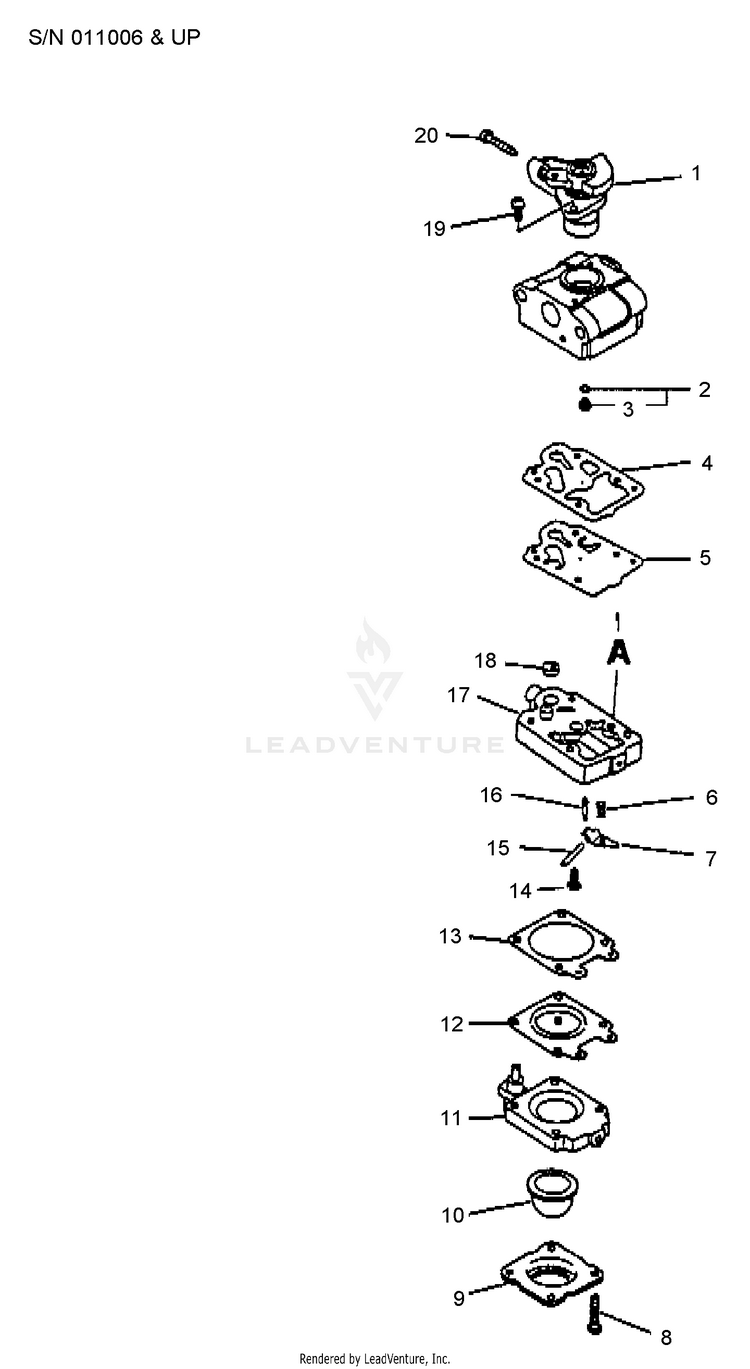

Carburetor S/N: 011006 - 999999

...
...
xx
CARBURETOR - WYL-23 S/N 011005 & UP. INCL. THE FOLLOWING ECH-12300005560
...
1
VALVE, THROTTLE ECH-12311605560
...
2
JET KIT - 37 Includes ITEM 3 ECH-12310744330
...
3
O-RING ECH---
...
4
GASKET, PUMP USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560 ECH---
...
5
DIAPHRAGM, PUMP USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560 ECH---
...
6
SPRING, METERING LEVER USE REBUILD KIT P/N 12310005560 ECH---
...
7
LEVER, METERING USE REBUILD KIT P/N 12310005560 ECH---
...
8
SCREW, PUMP COVER ECH-P003006830
...
9
COVER, PRIMER PUMP ECH-P003006760
...
10
PURGE BULB ECH-P003006770
...
11
BODY, AIR PURGE ECH-P003007100
...
12
DIAPHRAGM, METERING USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560 ECH---
...
13
GASKET, METERING USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560 ECH---
...
14
SCREW, METERING LEVER PIN USE REBUILD KIT P/N 12310005560 ECH---
...
15
PIN, METERING LEVER USE REBUILD KIT P/N 12310005560 ECH---
...
16
VALVE, INLET NEEDLE USE REBUILD KIT P/N 12310005560 ECH---
...
17
BASE, PURGE USE REBUILD KIT P/N 12310005560 ECH---
...
18
STRAINER USE REBUILD KIT P/N 12310005560 ECH---
...
19
SCREW, THROTTLE COLLAR ECH-12311444330
...
20
SCREW ECH-12313440030
...
xx
GASKET / DIAPHRAGM KIT ECH-12310105560
...
xx
REPAIR KIT ED-2000 ECH-12310005560

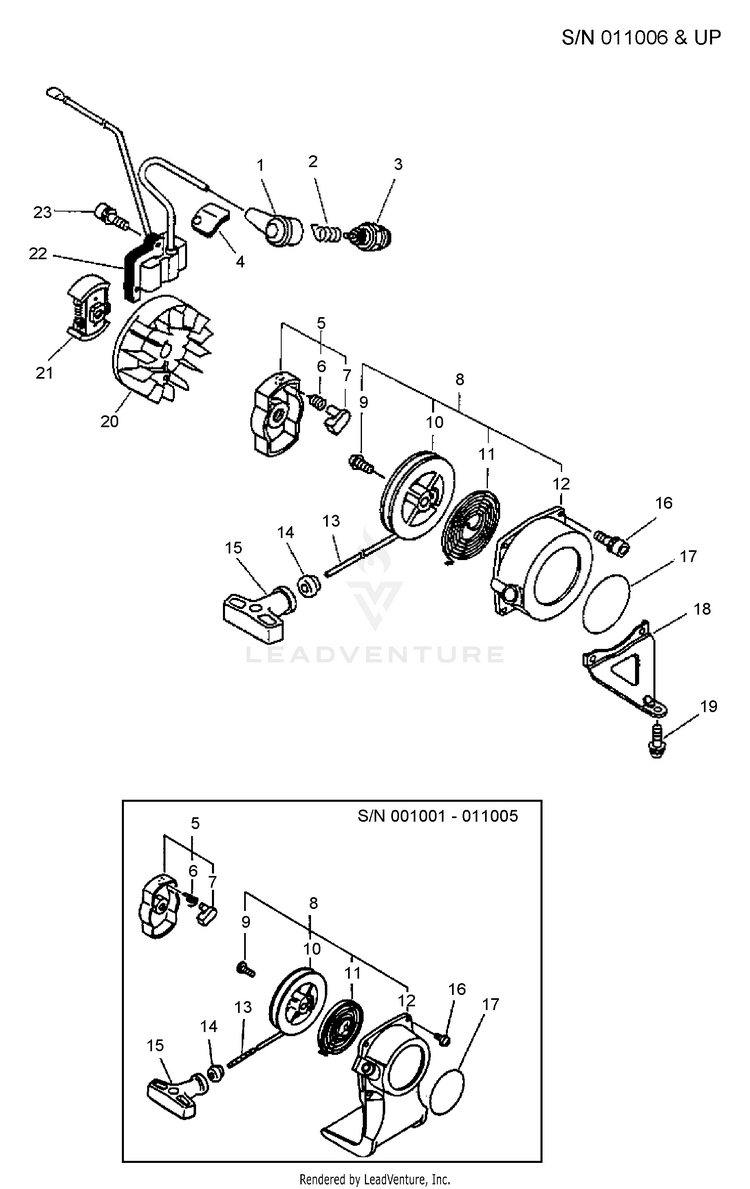

Clutch, Ignition, Starter S/N: 011006 & Up

...
...
1
CAP, SPARK PLUG ECH-15901201620
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
SPARK PLUG - BPMR7A ECH-15901010230
...
4
GROMMET ECH-15011242030
...
5
PAWL ASSY, STARTER Includes ITEMS 6 & 7 ECH-17720212220
...
6
SPRING, RETURN ECH-17723412220
...
7
PAWL, STARTER - BLACK ECH-17721844330
...
8
STARTER ASSY S/N 001001 - 011005 ECH-17720054130
...
8
STARTER ASSY, RECOIL S/N 011006 & UP. INCLUDES ITEMS 9 - 15 ECH-17720042033
...
9
SCREW ECH-17723644330
...
10
REEL, ROPE ECH-17721544430
...
11
SPRING, RECOIL ECH-P022019680
...
12
CASE, RECOIL STARTER S/N 001001 - 011005 ECH-17723244333
...
12
CASE, RECOIL STARTER S/N 011006 & UP ECH-17723242032
...
------------------
ROPE, STARTER 3.0×990 RePower BULK OPTION: 99944440000 ECH---
...
14
GUIDE, ROPE ECH-17722742030
...
15
GRIP, STARTER ECH-17722806530
...
16
BOLT 4x16 ECH-V202000830
...
17
LABEL - ECHO ECH-X502000320
...
18
SUPPORT, HANDLE S/N 011006 & UP ECH-35101105560
...
19
SCREW 5x16 S/N 011006 & UP ECH-90024205016
...
20
FLYWHEEL ECH-15680144330
...
21
CLUTCH ASSY ECH-17500056831
...
22
COIL, IGNITION ECH-15062605560
...
23
SCREW 4x22 ECH-90016204022
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000

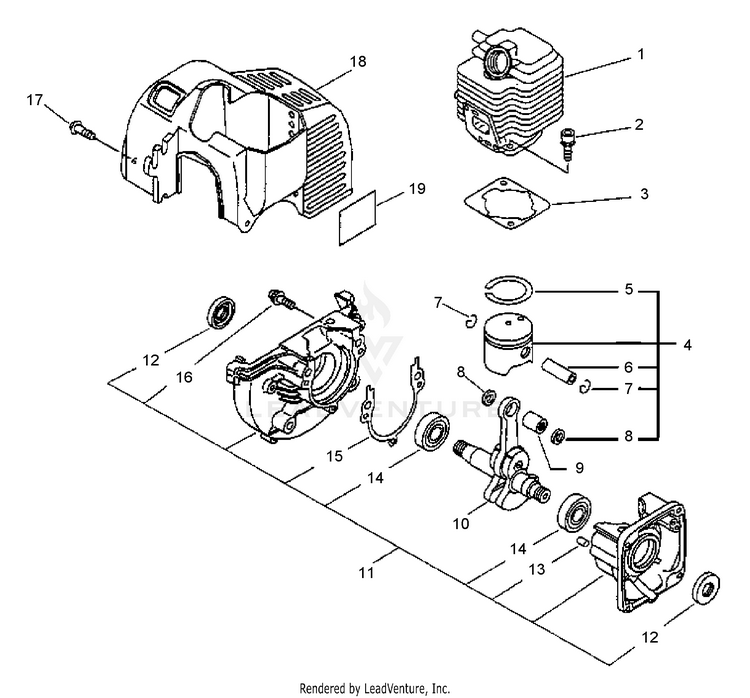

Engine, Crankcase, Cover

...
...
1
CYLINDER ECH-10101145230
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER USE KIT P/N 88900044333 ECH-10101044332
...
4
PISTON KIT INCLUDES ITEMS 5 - 8 ECH-10000044331
...
5
RING, PISTON ECH-10001105330
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
BEARING, NEEDLE 8 ECH-V553000010
...
10
CRANKSHAFT ECH-10010044331
...
11
CRANKCASE KIT Includes ITEMS 12-16 ECH-10020451031
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
GASKET, CRANKCASE USE KIT P/N 88900044333 ECH---
...
16
BOLT 5x28 ECH-90016205028
...
17
SCREW 4x16 ECH-90024204016
...
18
COVER, CYLINDER(BITTERSWEET) S/N 001001 - 017940 ECH-10151405561
...
18
COVER, CYLINDER S/N 017941 & UP ECH-10151421360
...
19
LABEL - MODEL ECH-89011405560
...
xx
SHORT BLOCK - SB1000 ECH-SB1000
...
xx
GASKET KIT RePower OPTION ECH-88900044333
...
xx
GASKET, CYLINDER RePower OPTION ECH-10101044332
...
xx
GASKET, CRANKCASE RePower OPTION ECH---
...
xx
GASKET, INTAKE RePower OPTION ECH-13001044431
...
xx
HEAT SHIELD, INTAKE RePower OPTION ECH-V103001360
...
xx
GASKET, EXHAUST RePower OPTION ECH-14586642031
...
xx
GASKET, EXHAUST RePower OPTION ECH-V104000160
...
xx
HEAT SHIELD, EXHAUST RePower OPTION ECH-A320000251
...
xx
O-RING 15 RePower OPTION ECH-90072000015

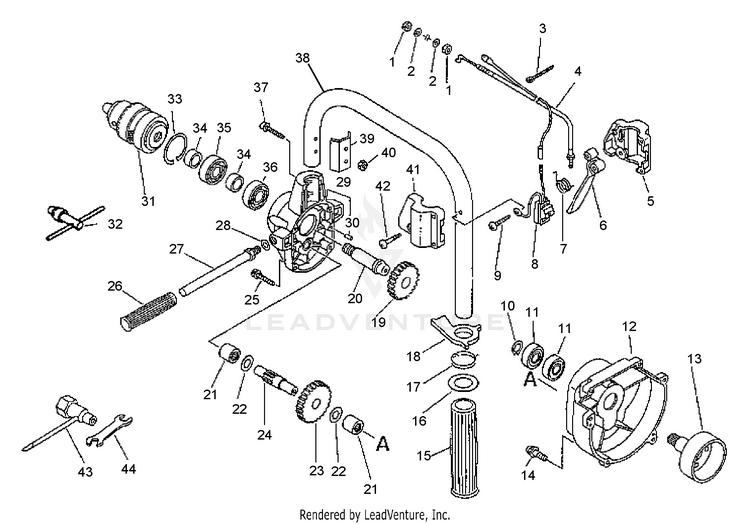

Gear Case, Chuck, Fan Cover, Tools

...
...
1
NUT M6 ECH-90050200006
...
2
WASHER 6.5x11.5x0.8 ECH-90060000006
...
3
TIE, CABLE ECH-17812156030
...
4
CABLE ASSY, THROTTLE ECH-17810009061
...
5
BRACKET, RIGHT CONTROL ECH-17802401261
...
6
CONTROL, THROTTLE ECH-17801007660
...
7
SPRING, THROTTLE RETURN ECH-17804301260
...
8
SWITCH, ON-OFF ECH-16340004460
...
9
SCREW 4x30 ECH-90024504030
...
10
RING, SNAP 12 ECH-90070100012
...
11
BEARING, BALL 6001 ECH-90080036001
...
12
COVER, FAN ECH-10151105560
...
13
DRUM, CLUTCH ECH-17500505560
...
14
SCREW 4x16 ECH-90024204016
...
15
GRIP, HANDLE ECH-35131102330
...
16
SPACER ECH-17807002061
...
17
SPRING, THROTTLE LOCKOUT ECH-17801302060
...
18
LOCKOUT, THROTTLE ECH-17801202061
...
19
GEAR, SPUR ECH-60422405560
...
20
GEAR, SHAFT ECH-60404205560
...
21
BEARING, NEEDLE ECH-60422105560
...
22
WASHER ECH-60422305560
...
23
GEAR, SHAFT ECH-60420605560
...
24
GEAR, SHAFT ECH-60420605560
...
25
BOLT 4x25 ECH-90016204025
...
26
GRIP, HANDLE ECH-35131128330
...
27
HANDLE, LEFT ECH-35121005560
...
28
WASHER 10.5x18x1.6 ECH-90060000010
...
29
CASE, GEAR INCLUDES ITEM 30 ECH-60431105560
...
30
PIN, LOCATING 4 ECH-V622000020
...
31
CHUCK, KEYED ECH-60405105560
...
32
KEY, CHUCK ECH-89757005560
...
33
RING, SNAP 32 ECH-90070200032
...
34
COLLAR ECH-60404405560
...
35
BEARING, BALL 6002 DDU ECH-90080206002
...
36
BEARING, BALL 6002 ECH-90080036002
...
37
BOLT M5x35 ECH-90016205035
...
38
HANDLE ASSY - REAR ECH-35100005561
...
39
PLATE ECH-35164105560
...
40
NUT, LOCK M5 ECH-90056000005
...
41
BRACKET, LEFT CONTROL ECH-17805201261
...
42
SCREW 4x25 ECH-90024604025
...
43
T-WRENCH 10x19 MM ECH-89541039132
...
44
SPANNER 17x19 ECH-89512220960

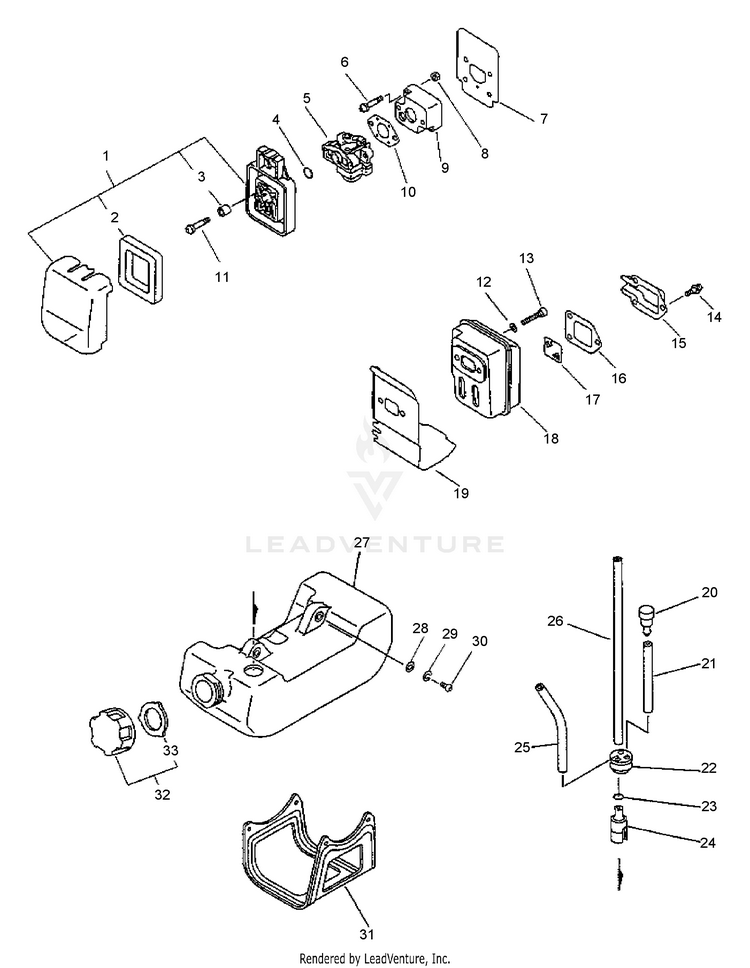

Intake, Air Filter, Exhaust, Fuel System

...
...
1
FILTER ASSY, AIR INCLUDES ITEMS 2 - 3 ECH-13030006460
...
2
FILTER, AIR ECH-13031044330
...
3
SLEEVE ECH-13032744330
...
4
O-RING 15 ECH-90072000015
...
5
CARBURETOR - WYL-1 S/N 001001 - 011005 WHEN REPLACING CARBURETOR ASSEMBLY P/N 12300044430 WITH CARBURETOR ASSEMBLY P/N 12300005560; REPLACE EXISTING FUEL TANK GROMMET P/N 13211544330 WITH NEW GROMMET P/N 13211546730 AND ADD RETURN PIPE P/N 13201246730. ECH-12300044430
...
5
CARBURETOR - WYL-23 S/N 011006 & UP ECH-12300005560
...
6
SCREW 5x22 ECH-90024205022
...
7
HEAT SHIELD, INTAKE INCLUDED IN KIT P/N 88900044333 ECH-V103001360
...
8
NUT M5 ECH-90050000005
...
9
INSULATOR KIT ECH-P021015350
...
10
GASKET, INTAKE INCLUDED IN KIT P/N 88900044333 ECH-13001044431
...
11
SCREW 5x64 ECH-90024205064
...
12
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
13
BOLT 5x55 ECH-90010505055
...
14
SCREW 4x10 ECH-90024204010
...
15
COVER, MUFFLER ECH-145809-42030
...
16
GASKET, EXHAUST INCLUDED IN KIT P/N 88900044333 ECH-14586642031
...
17
SCREEN, SPARK ARRESTER ECH-14586240630
...
18
MUFFLER ECH-14585805560
...
19
GASKET, MUFFLER ECH-14551044331
...
20
VENT ASSY ECH-A356000031
...
21
PIPE, VENT RePower BULK OPTION: 90015 ECH-13131205560
...
22
GROMMET, FUEL S/N 001001 - 011005 ECH-13211544331
...
22
GROMMET, FUEL 5 S/N 011006 & UP ECH-13211546730
...
23
CLIP 6 MM ECH-13201309820
...
24
FILTER, FUEL ECH-A369000480
...
25
PIPE, FUEL 3x6x80 YELLOW RePower BULK OPTION: 90017 S/N 011006 & UP ECH-V471006060
...
26
PIPE, FUEL RePower BULK OPTION: 90014 ECH-13201005560
...
27
TANK, FUEL ECH-13100546831
...
28
WASHER 5.5x12x0.8 ECH-90060300005
...
29
WASHER, SPRING 5 ECH-90060500005
...
30
SCREW 5x16 ECH-90024305016
...
31
GUARD, FUEL TANK S/N 011006 & UP ECH-30511042030
...
32
FUEL CAP ASSY Includes ITEM 33 ECH-P200000820
...
33
GASKET, FUEL CAP USE CAP/VENT KIT P/N 90010 ECH-13101640930
...
xx
GASKET KIT ECH-88900044333
...
xx
PIPE, FUEL 3x6x80 YELLOW RePower BULK OPTION: 90017 ECH-V471006060
