Echo EB6000 S/N: P90100001001 - P90100999999 Cordless Blower

Model: EB6000 S/N: P90100001001 - P90100999999

Save Part Not Listed?
product name

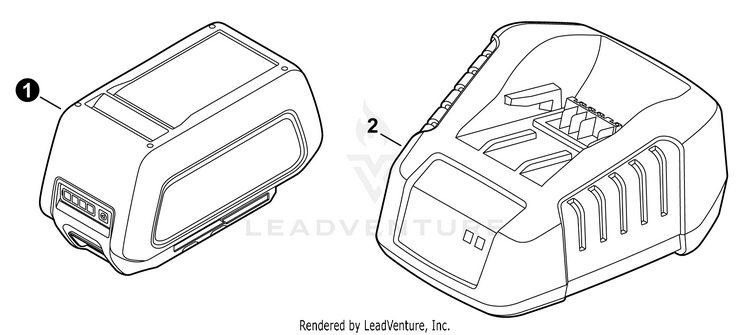

BATTERY, CHARGER

...
...
1
BATTERY 56V ECH-99945600201
...
2
BATTERY CHARGER - 56V ECH-99945600300

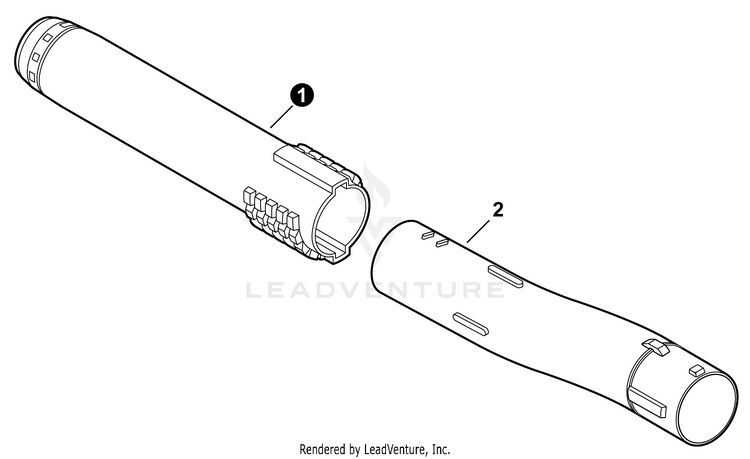

BLOWER TUBES

...
...
1
TUBE, BLOWER - NOZZLE ECH-E165000790
...
2
TUBE, BLOWER - CURVED ECH-E165000860

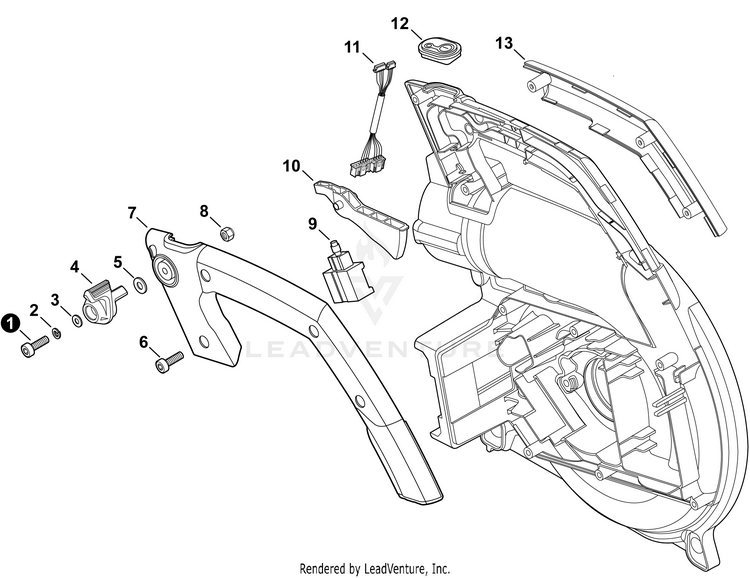

CONTROL HANDLE

...
...
1
BOLT, TORX 5x25 ECH-V805000170
...
2
WASHER, SPRING 5 ECH-90060500005
...
3
WASHER 5.5x12x0.8 ECH-90060300005
...
4
LEVER, CRUISE CONTROL ECH-C453000610
...
5
WASHER 5.5x12x0.8 ECH-90060300005
...
6
BOLT, TORX 4x16 ECH-V804000010
...
7
COVER, HANDLE ECH-C411000210
...
8
NUT, LOCK M5 ECH-90056250005
...
9
SWITCH, SPEED CONTROL ECH-G334001830
...
10
TRIGGER ECH-C450000980
...
11
LEAD, ON-OFF ECH-C130000680
...
12
SWITCH, ON-OFF ECH-A047000310
...
13
GRIP, HANDLE ECH-C412000730

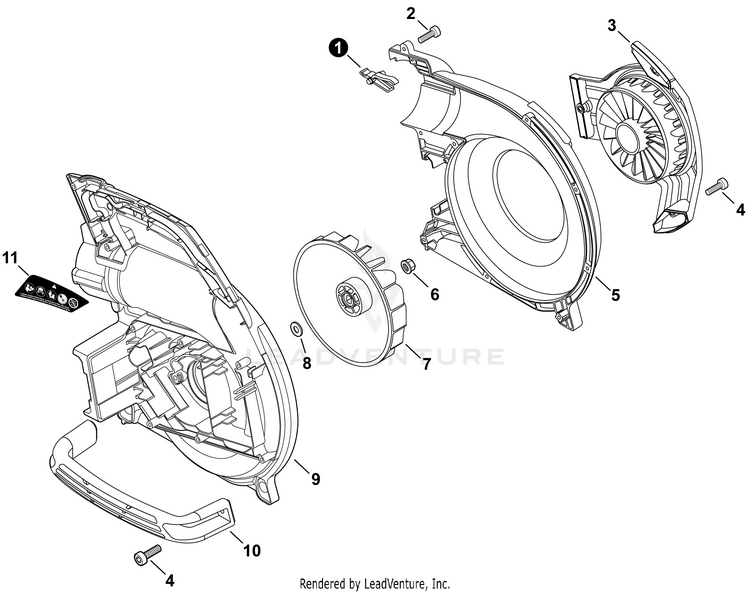

FAN CASE

...
...
1
LOCK, TUBE ECH-C662000050
...
2
BOLT, TORX 4x16 ECH-V804000010
...
3
GUARD, DEBRIS ECH-E104000260
...
4
BOLT, TORX 5x20 ECH-V805000010
...
5
COVER, FAN ECH-E103001370
...
6
NUT, FLANGE M8x1.25 ECH-9210508000
...
7
FAN, BLOWER ECH-E100000280
...
8
WASHER 10.5x18x1.6 ECH-90060000010
...
9
CASE, FAN ECH-E103001360
...
10
HANDLE, SUPPORT ECH-C410001400
...
11
LABEL - CAUTION ECH-X505008630

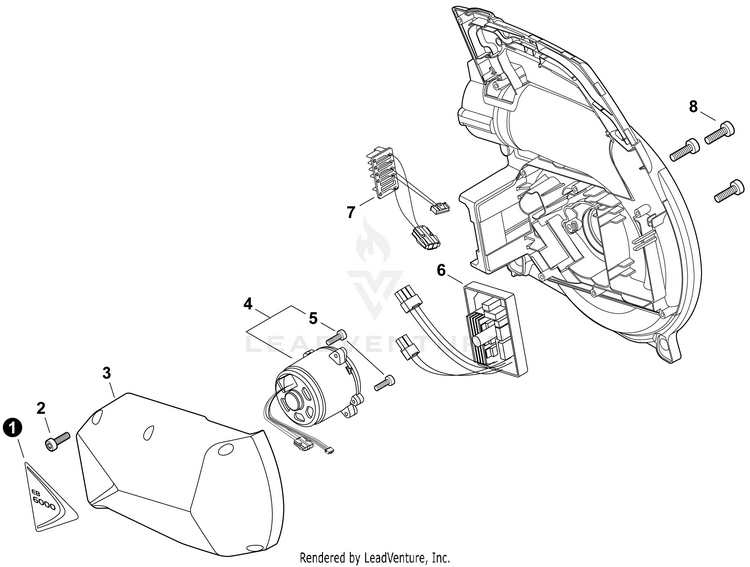

MOTOR

...
...
1
LABEL - MODEL EB6000 ECH-X543004730
...
2
BOLT, TORX 4x16 ECH-V804000010
...
3
COVER, MOTOR ECH-A539000360
...
4
MOTOR ASSY Includes ITEM 5 ECH-A054000240
...
5
BOLT, TORX 4x12 ECH-V804000050
...
6
CONTROL BOARD ASSY ECH-A047000320
...
7
TERMINAL, LEAD ECH-V486000500
...
8
BOLT, TORX 5x20 ECH-V805000210
