Echo EB500 Backpack Blower

Model: EB500

Back To Assemblies

Save Part Not Listed?

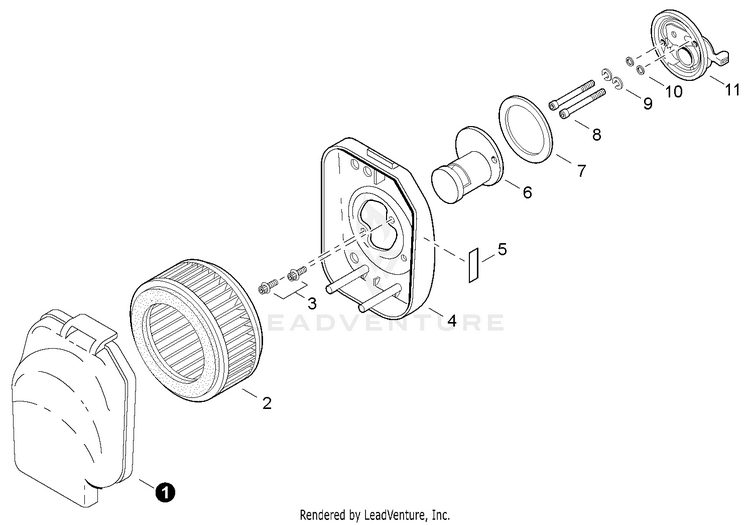

product name

Air Filter

...
...
1
COVER, AIR FILTER 72935-82120 ECH-A232000580
...
2
FILTER, AIR 72935-82310 ECH-A226000500
...
3
BOLT M4x14 11024-04140 ECH-V202000150
...
4
CASE, AIR FILTER 72935-82111 ECH-A225000370
...
5
LABEL - CHOKE 19404-00008 ECH-X506000130
...
6
PIPE, INTAKE 72935-82130 ECH-A239000080
...
7
GASKET, INTAKE 72935-82210 ECH-V103000600
...
8
BOLT 5x60 01020-05600 ECH-90010505060
...
9
WASHER, SPRING 5 01600-05131 ECH-90060500005
...
10
WASHER, FLAT 5.5x10x0.8 01610-05080 ECH-90060000005
...
11
CHOKE ASSY 72935-81501 ECH-A221000030
