Echo EB500 Backpack Blower

Model: EB500

Back To Assemblies

Save Part Not Listed?
product name

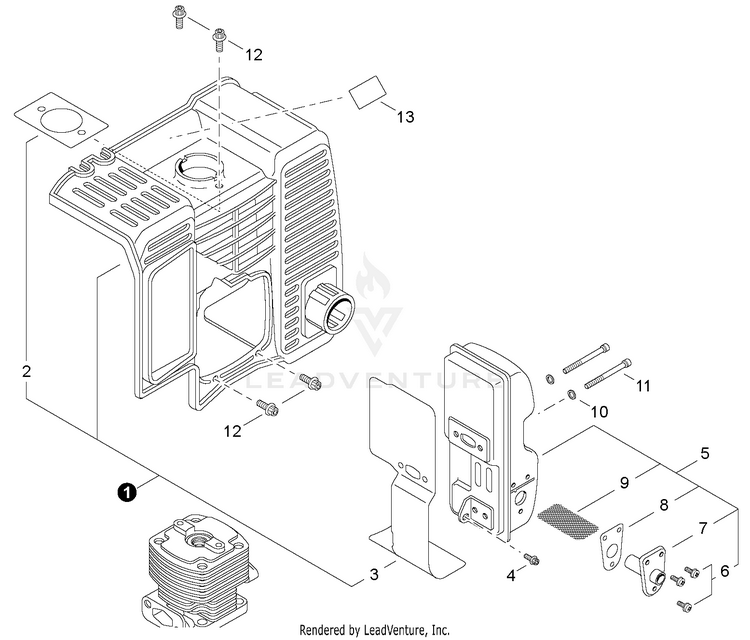

Exhaust / Engine Cover

...
...
1
COVER ASSY, ENGINE 72935-98020 ECH-P021033480
...
2
SHIELD, HEAT 20028-32131 ECH-V109000060
...
3
HEAT SHIELD, EXHAUST 72935-15211 ECH-V104001020
...
4
BOLT M5x12 11024-05120 ECH-V203000820
...
5
MUFFLER ASSY 68200-15010 ECH-A030000050
...
6
SCREW M4x12 11206-04120 ECH-9157404012
...
7
GUIDE, EXHAUST 68200-15140 ECH-A313001150
...
8
GASKET, EXHAUST 70029-15140 ECH-V104001010
...
9
SCREEN, SPARK ARRESTER 70029-15120 ECH-A310000130
...
10
WASHER 6.5x11.5x0.8 01610-06080 ECH-90060000006
...
11
BOLT - 6x70 01020-06700 ECH-9110006070
...
12
BOLT, ADHESIVE M5x16 11060-05162 ECH-V203000380
...
13
LABEL - CAUTION 19402-00148 ECH-X505003350
