Echo EB500 Backpack Blower

Model: EB500

Back To Assemblies

Save Part Not Listed?
product name

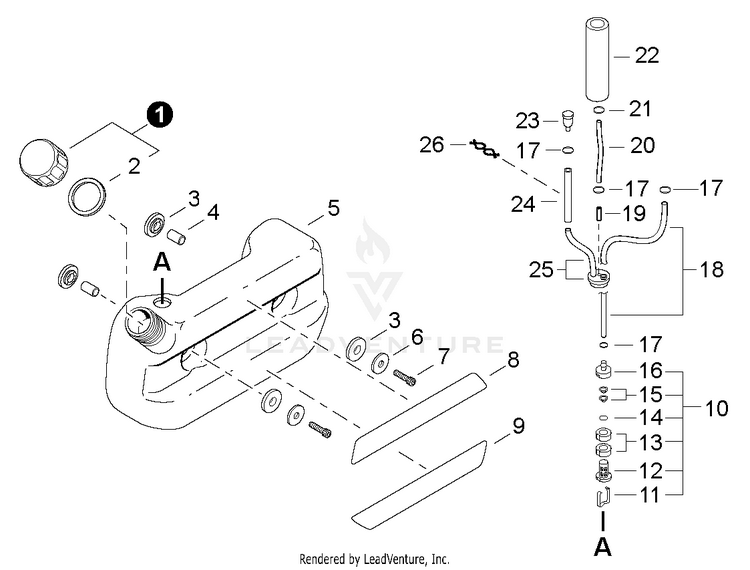

Fuel Tank

...
...
1
CAP ASSY, FUEL 68204-85020 ECH-A033000020
...
2
GASKET, FUEL CAP 20000-85221 ECH-V107000010
...
3
CUSHION 72935-86421 ECH-V420002180
...
4
COLLAR 6xL15 17901-06150 ECH-V354000220
...
5
TANK, FUEL 72935-85111 ECH-A350001030
...
6
COLLAR 23x6.5xL3.2 15401-20004 ECH-V354000230
...
7
BOLT M6x25 11020-06250 ECH-V204000320
...
8
LABEL - MODEL 68200-91032 ECH-X543001180
...
9
LABEL - SHINDAIWA 19420-00056 ECH-X504001020
...
10
FILTER, FUEL 22115-85401 ECH-A369000460
...
11
FILTER, FUEL 22128-85440 ECH-A369000460
...
12
FILTER, FUEL 22128-85470 ECH-A369000460
...
13
FILTER, FUEL 22128-85421 ECH-A369000460
...
14
FILTER, FUEL 22128-85480 ECH-A369000460
...
15
FILTER, FUEL 22118-85460 ECH-A369000460
...
16
FILTER, FUEL 22128-85410 ECH-A369000460
...
17
CLIP 6 20020-85540 ECH-V490000500
...
18
PIPE 68206-85340 ECH-V471002371
...
19
CONNECTOR, PIPE 72933-85620 ECH-V186000210
...
20
PIPE, FUEL 3x5x40 BLACK 72935-85512 ECH-V471002381
...
21
CLIP 20021-85540 ECH-V490000580
...
22
TUBE, INSULATOR 72935-85540 ECH-V471002390
...
23
VENT ASSY 20035-85522 ECH-A356000040
...
24
TUBE, INSULATOR 72935-85530 ECH-V471002420
...
25
GROMMET, FUEL W/VENT PIPE 72933-85350 ECH-V470000890
...
26
CLIP 72935-85550 ECH-V491000250
