Echo EB500 Backpack Blower

Model: EB500

Back To Assemblies

Save Part Not Listed?

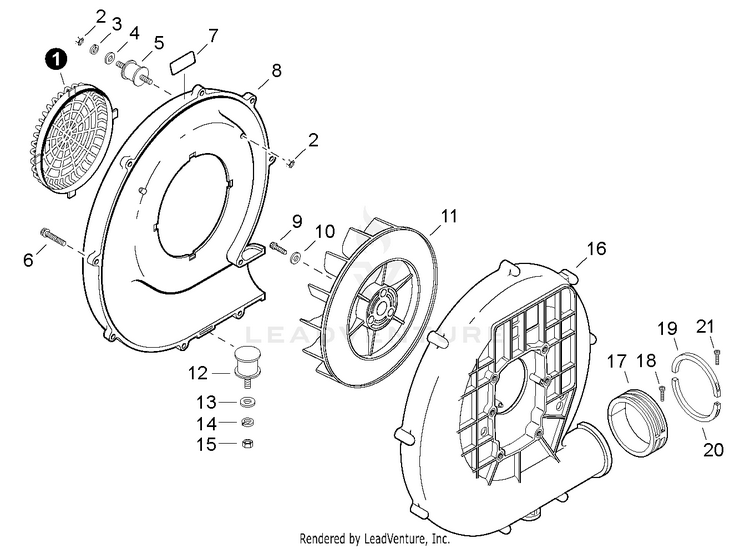

product name

Fan Case

...
...
1
COVER, INTAKE 72935-61310 ECH-E104000160
...
2
NUT M5 01500-05041 ECH-90050000005
...
3
WASHER, SPRING 5 01600-05131 ECH-90060500005
...
4
WASHER 5 22104-31620 ECH-V303000270
...
5
CUSHION 5 72935-61220 ECH-V401000180
...
6
BOLT, TAPPING 5 72935-61230 ECH-V203000390
...
7
LABEL - NOISE 19404-00033 ECH-X508000300
...
8
COVER, FAN 72935-61212 ECH-E103000830
...
9
BOLT 6 11060-06251 ECH-V204000300
...
10
WASHER 6 01612-00600 ECH-90060200006
...
11
FAN, BLOWER 68200-62112 ECH-E100000140
...
12
CUSHION 6 72935-61120 ECH-V402000060
...
13
COLLAR 18x6.4xL2 15401-10016 ECH-V375000590
...
14
WASHER, SPRING 6 01600-06151 ECH-90060500006
...
15
NUT, HEX M6 01500-06051 ECH-90050000006
...
16
CASE, FAN 72935-61112 ECH-E103000820
...
17
SLEEVE 72935-61410 ECH-E162000010
...
18
SCREW, TAPPING 11270-03202 ECH-9137103020
...
19
RETAINING RING (A) 72935-61420 ECH-V495001250
...
20
RETAINING RING (B) 72935-61430 ECH-V495001260
...
21
SCREW 11203-03250 ECH-9157803025
