Echo EB500 Backpack Blower

Model: EB500

Save Part Not Listed?

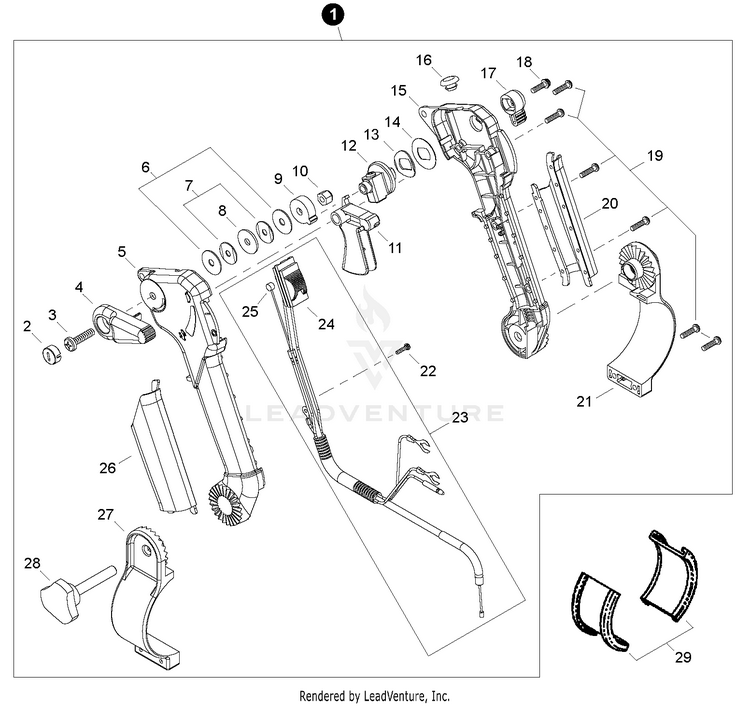

Throttle Control

THROTTLE LEVER ASSY 68237-84011 ECH-C044000282

CAP, BOLT 68209-84420 ECH-V162000330

BOLT M6x25 68209-84360 ECH-V204000260

CONTROL, THROTTLE 68209-84350 ECH-C453000320

CONTROL HANDLE - LEFT 68209-84330 ECH-C400000581

WASHER M6 68209-84370 ECH-V304000110

WASHER, SPRING 68209-84380 ECH-V453000110

WASHER M6 68209-84390 ECH-V304000120

LEVER, THROTTLE 68209-84400 ECH-C472000070

NUT, NYLON M6 68209-84410 ECH-V264000080

TRIGGER, THROTTLE 68209-84340 ECH-C450000450

LIMITER ASSY, THROTTLE 68209-84480 ECH-C457000010

WASHER, WAVE 68209-84530 ECH-V453000120

WASHER 68209-84520 ECH-V345000010

CONTROL HANDLE - RIGHT 68209-84321 ECH-C400000571

PLUG, THROTTLE LIMITER 68209-84490 ECH-V162000340

LEVER, THROTTLE LIMITER 68209-84510 ECH-C453000330

SCREW, TAPPING 68209-84500 ECH-P022019940

SCREW M4x16 68209-84440 ECH-V252000070

GRIP, RIGHT 68209-84540 ECH-C412000240

BRACKET, RIGHT 68209-84450 ECH-C405000380

SCREW M3x8 68209-84560 ECH-V251000030

THROTTLE CONTROL ASSY 68237-84310 ECH-V043000351

SWITCH, ON-OFF 68237-84320 ECH-A440001340

CABLE, THROTTLE 68237-84330 ECH-V430002540

GRIP, LEFT 68209-84550 ECH-C412000250

BRACKET, LEFT 68209-84460 ECH-C405000390

KNOB, SCREW 68209-84470 ECH-V299000330

SPACER 68237-84340 ECH-V144000210

Model: 1AHF08390

$16.00

In Stock
